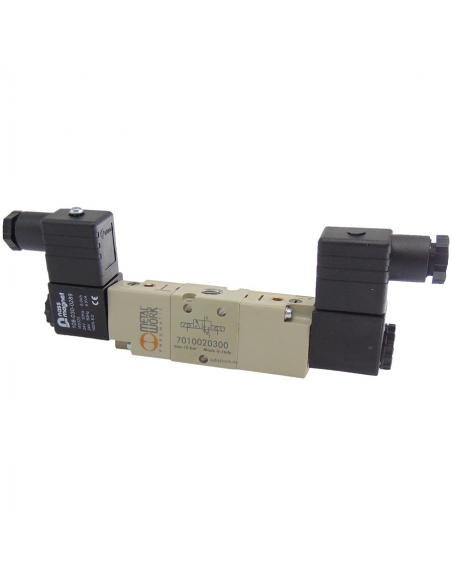

Solenoid valve 1/8 3 ways bistable assisted 230Vac - Metal Work

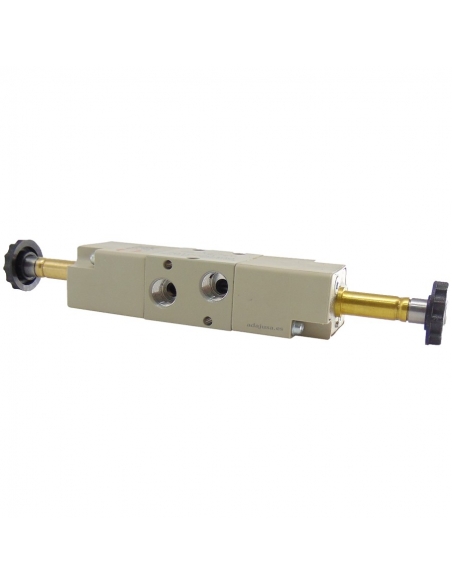

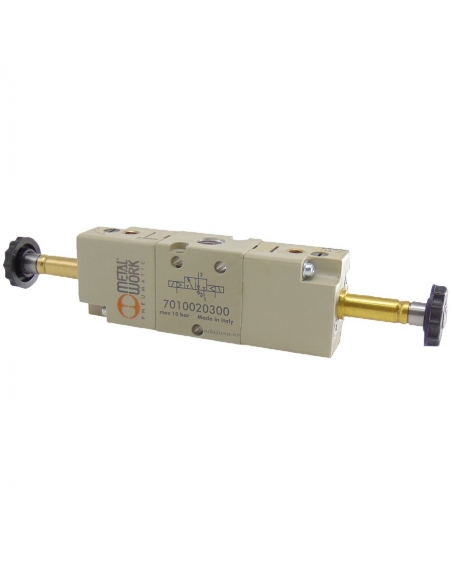

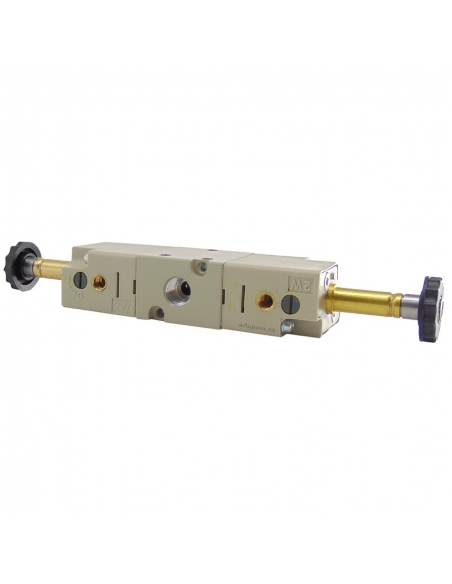

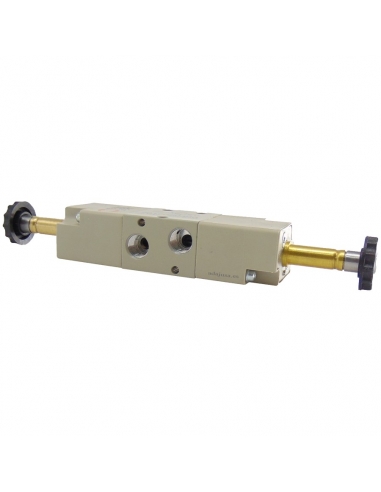

Pneumatic solenoid valve of 1/8 3 ways bistable assisted.

Coil size 22mm for voltage of 230Vca with a power of 3.5VA, suitable for solenoid valves with an actuator core diameter of 8mm.

Plastic connector 22 mm

The supply includes:

• 1 Solenoid valve 1/8 3 ways bistable assisted
• 2 Coils 220Vac 3.5VA
• 2 x 22mm connector

Characteristics:

• Manufacturer: Metal Work
• Solenoid valve reference: 7010020300 -SOV 23 SEB OO

• Operating pressure: 1 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Operating temperature: -10 ÷ +60
• Nominal diameter: 5 mm
• Conductance C Nl/min · bar: 121.43
• B bar/bar critical ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• Monostable TRA/TRR at 6 bar ms: 15/35
• Bistable TRA/TRR at 6 bar ms: 20/20
• Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
• Voltage tolerances %: -10 ÷ +15
• Voltage 220 - 240 Vac
• Power 3.5VA

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
