Pneumatic logic valve function O Metal Work - ADAJUSA

Pneumatic logic valve function OR - Metal Work

Name: Pneumatic logic valve function OR - Metal Work
Brand: Metal Work
SKU: W3604000001
Price: 17.64 EUR
Availability: InStock

€17.64 Tax included

€14.58 tax excl.

W3604000001

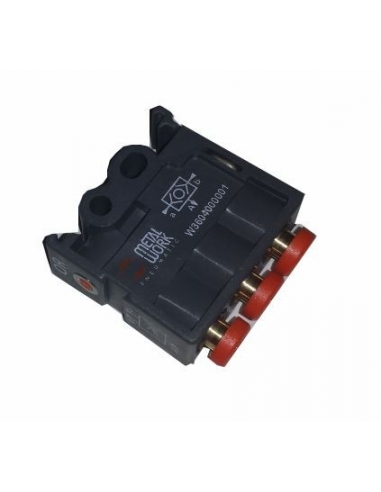

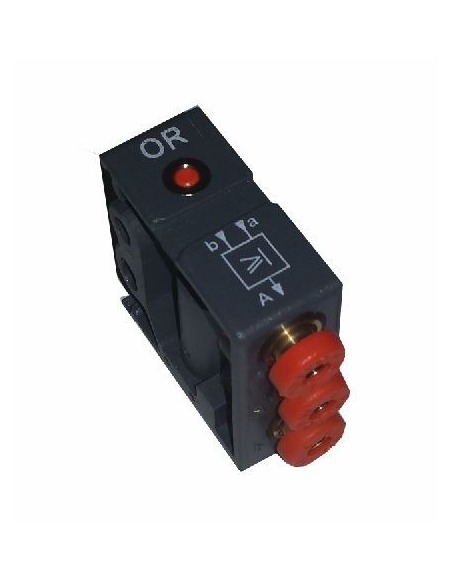

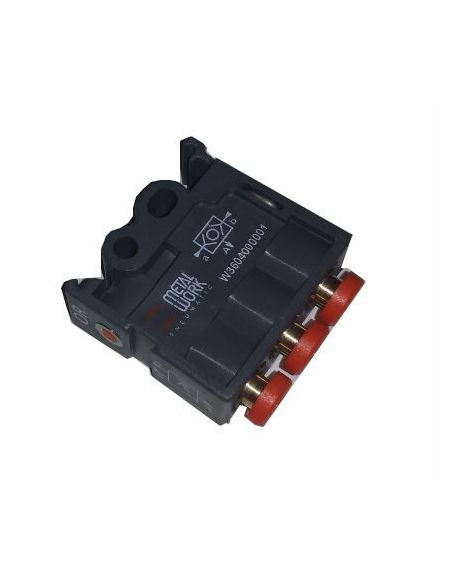

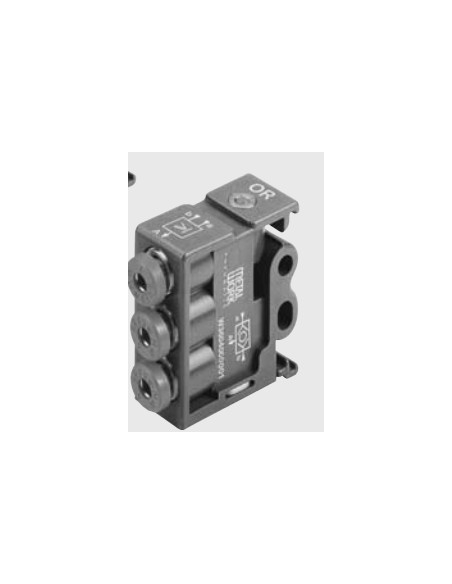

Pneumatic logic valve function "OR" with built-in quick fittings for 4mm diameter tube.

Reference: W3604000001

Logotipo Metal Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic logic valve function "OR", with built-in quick fittings for tube of diameter 4mm. fixation by through screws or for din-rail.

Manufacturer: Metal Work.

Manufacturer reference: W3604000001.

specifications:

Valve type: "OR" logic function.
Type of fittings: Quick connection diameter 4.
Type of material: Technopolymer.
Working pressure: 1.5 to 8 bar.
Nominal diameter: 2.7 mm.
Flow rate at 6 bar: 100 Nl/min.
Fluid: Compressed air filtered with or without lubrication.
Installation: In any position.
Mounting: In DIN profile or by means of through screws diameter 4.2mm.

dimensiones-valvula-logica-funcion-o

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Auxiliary valves

Download (844.62KB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Pneumatic logic valve function AND - Metal Work

Metal Work

W3604000002

€19.21 (€15.88 tax excl.)

Pneumatic logic valve function "AND" with built-in quick fittings for 4mm diameter tube. Reference: W3604000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Auxiliary valve logical memory - Metal Work - ADAJUSA

Logic valves and special valves

Auxiliary valve logical memory - Metal Work

Metal Work

W3604000005

€52.05 (€43.02 tax excl.)

Logical element - MEMORY. Pipe blocking system by means of recessed fittings Ø 4. Reference: W360400005 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Pneumatic logic valve function NO Metal Work - ADAJUSA

Logic valves and special valves

Pneumatic logic valve function NOT - Metal Work

Metal Work

W3604000003

€29.31 (€24.22 tax excl.)

Pneumatic logic valve function "NOT" with built-in quick fittings for 4mm diameter tube.Reference: W3604000003 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

Pneumatic logic valve function YES - Metal Work

Metal Work

W3604000004

€30.89 (€25.53 tax excl.)

Pneumatic logic valve function "YES" with built-in quick fittings for 4mm diameter tube.Reference: W3604000004 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

10 other products in the same category:

Logic valves and special valves

Pneumatic logic valve OR function 1/8 - Aignep

Aignep

8870 1/8

€17.06 (€14.10 tax excl.)

Pneumatic logic valve "OR" function with built-in quick fittings for 1/8 diameter tube Series: Function Reference: 8870 1/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Logic valves and special valves

Pneumatic timer - Metal Work

Metal Work

W3604000006

€129.64 (€107.14 tax excl.)

Pneumatic timer, with a regulation range between 0 and 30 seconds. Quick connect fittings integrated into the 4mm diameter timer body.Reference: W3604000006 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

Auxiliary valve logical memory - Metal Work

Metal Work

W3604000005

€52.05 (€43.02 tax excl.)

Logic valves and special valves

Valve 1/8 thread circuit selector - Metal Work

Metal Work

W3603000001

€13.70 (€11.32 tax excl.)

Circuit selector valve, with 1/8" thread.Reference: W3603000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Safety valve for pneumatic bimanual control

Logic valves and special valves

Safety valve for pneumatic bimanual control

Metal Work

W3605000001

€147.23 (€121.68 tax excl.)

Safety valve for pneumatic bimanual control.Reference: W3605000001 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

Valve 1/4 thread circuit selector - Metal Work

Metal Work

W3603000002

€14.10 (€11.65 tax excl.)

Circuit selector valve, with 1/4" thread. Reference: W3603000002 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Logic valves and special valves

Pneumatic logic valve function AND - Metal Work

Metal Work

W3604000002

€19.21 (€15.88 tax excl.)

Logic valves and special valves

Pneumatic logic valve AND function 1/8 - Aignep

Aignep

8872 1/8

€17.38 (€14.36 tax excl.)

Pneumatic logic valve "AND" function with built-in quick fittings for 1/8 diameter tube. Series: Function Reference: 8872 1/8 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Logic valves and special valves

Pneumatic logic valve function NOT - Metal Work

Metal Work

W3604000003

€29.31 (€24.22 tax excl.)

Logic valves and special valves

Pneumatic logic valve function YES - Metal Work

Metal Work

W3604000004

€30.89 (€25.53 tax excl.)

Customers who bought this product also bought:

1/4 female 3-way cutting step valve - Metal Work - ADAJUSA

1/4 female 3-way cutting step valve - Metal Work - ADAJUSA 2

Cutting and unloading valves

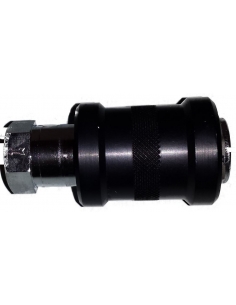

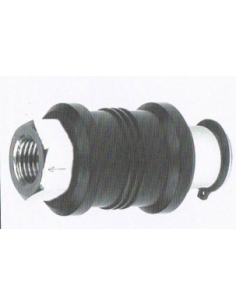

Cutting step valve 1/4 female 3-way - Metal Work

Metal Work

W0970050002

€11.33 (€9.36 tax excl.)

Valve of passage (cut) of 1/4 female, with discharge (3 ways).Reference: W0970050002 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double insulated toe caps

Bag of 100 pre-insulated 1.5mm double toe

Generico-ELECT

2040176

€2.50 (€2.07 tax excl.)

Bag of 100 pre-insulated double hollow toe for 1.5 mm2 cable, black. Manufactured according to norm . Color: Black Reference: 2040176 Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

Crimper for ferrules from 0.25 to 10mm1 ERVN-10

Crimper for ferrules from 0.25 to 10mm1 ERVN-10 2

Tools

Toe crimper from 0.25 to 10 mm2

OMU System

ERVN-10

€32.43 (€26.80 tax excl.)

Easy-to-use crimping tool for insulated and uninsolated toe caps, with non-slip PVC grip and high-quality steel jaw, suitable for pressing toe caps with cable diameter from 0.25 to 10 mm2. Rectangular crimp shape. Reference: ERVN-10Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Limit Switch pneumatic roller 1/8 3/2 7001000600 Metal Work | ADAJUSA | price

Pneumatic Limit switchs

Limit Switch 1/8 3/2 one-way roller lever - Metal Work

Metal Work

7001000600

€39.63 (€32.75 tax excl.)

limit switch pneumaticvalve, mechanically operated pneumatic valve, 1/8 3-way thread. The limit switch is unidirectional drive by lever with roller. Reference: 7001000600 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Cylinder Ø16 double effect Mindman - ADAJUSA

Cylinder Ø16 double effect Mindman - ADAJUSA 2

Pneumatic cylinders Ø16

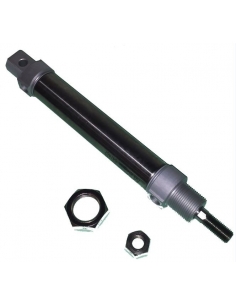

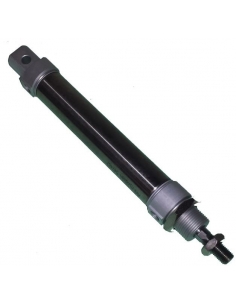

Cylinder 16x100 double effect - Mindman
