Electrovalvula 1/8 3-way bistable assisted 110Vac - Metal Work - ADAJUSA

Solenoid valve coil 110Vac 5VA T22 Ø8 - Metal Work

Solenoid valve 1/8 3 ways bistable Metal Work - ADAJUSA

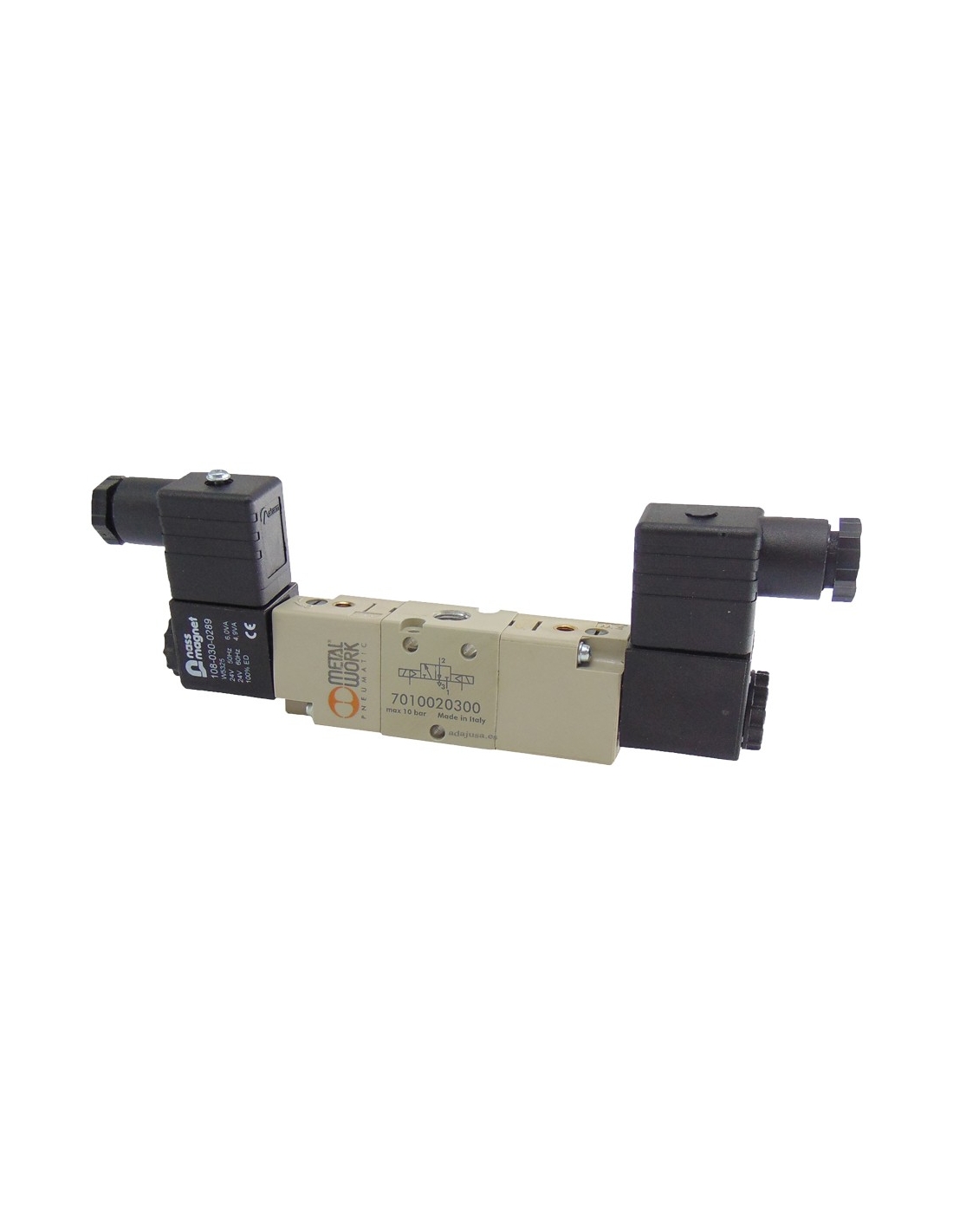

Solenoid valve 1/8 3-way bistable assisted 110Vac - Metal Work

Name: Solenoid valve 1/8 3-way bistable assisted 110Vac - Metal Work
Brand: Metal Work
SKU: PK-E183110
Price: 96.0135 EUR
Availability: PreOrder

€96.01 Tax included

€79.35 tax excl.

Solenoid valve 1/8 3-way bistable with bobinas for solenoid valve size 22mm, voltage 110Vca.

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

Solenoid valve connector size 22 - Metal Work

€1.39

Solenoid valve coil 110Vac 3.5VA T22 diameter 8 - Metal Work

€8.52

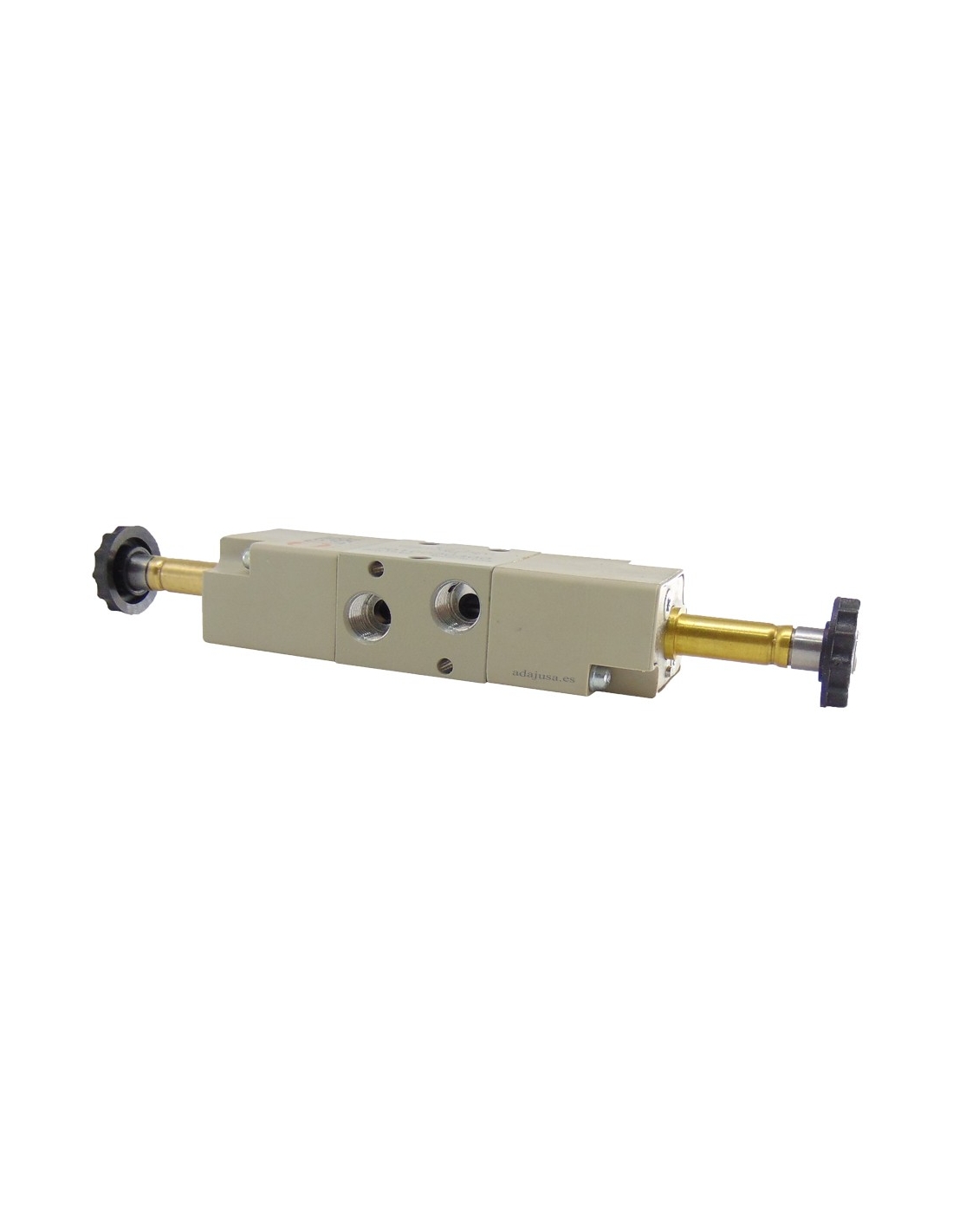

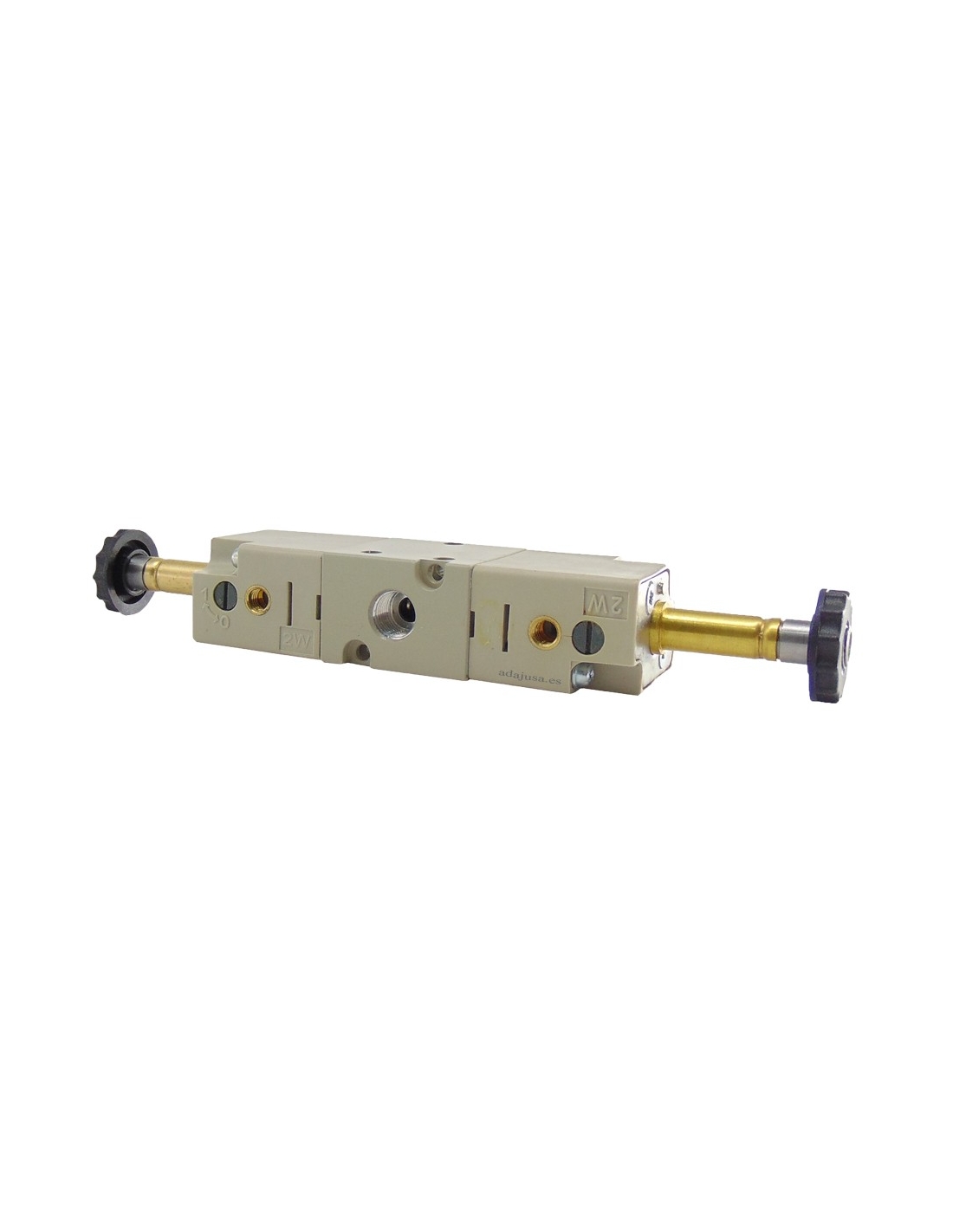

Solenoid valve 1/8 3 ways bistable assisted - Metal Work

€84.71

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 1/8 3 ways bistable assisted.

Coil size 22mm for voltage of 110Vca with a power of 3.5VA, suitable for solenoid valves with an actuator core diameter of 8mm.

Plastic connector 22 mm

The supply includes:

1 Solenoid valve 1/8 3 ways bistable assisted
2 Coils 110Vac 3.5VA
2 x 22mm connector

Characteristics:

Manufacturer: Metal Work
Solenoid valve reference: 7010020300 -SOV 23 SEB OO
Operating pressure: 1 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 5 mm
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
Monostable TRA/TRR at 6 bar ms: 15/35
Bistable TRA/TRR at 6 bar ms: 20/20
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15
Voltage 110 Vac
Power 3,5VA

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)
