Squad fixing cylinder diameter 20/25

Name: Squad fixing cylinder diameter 20/25
Brand: Metal Work
SKU: W0950200001
Price: 2.8798 EUR
Availability: InStock

€2.88 Tax included

€2.38 tax excl.

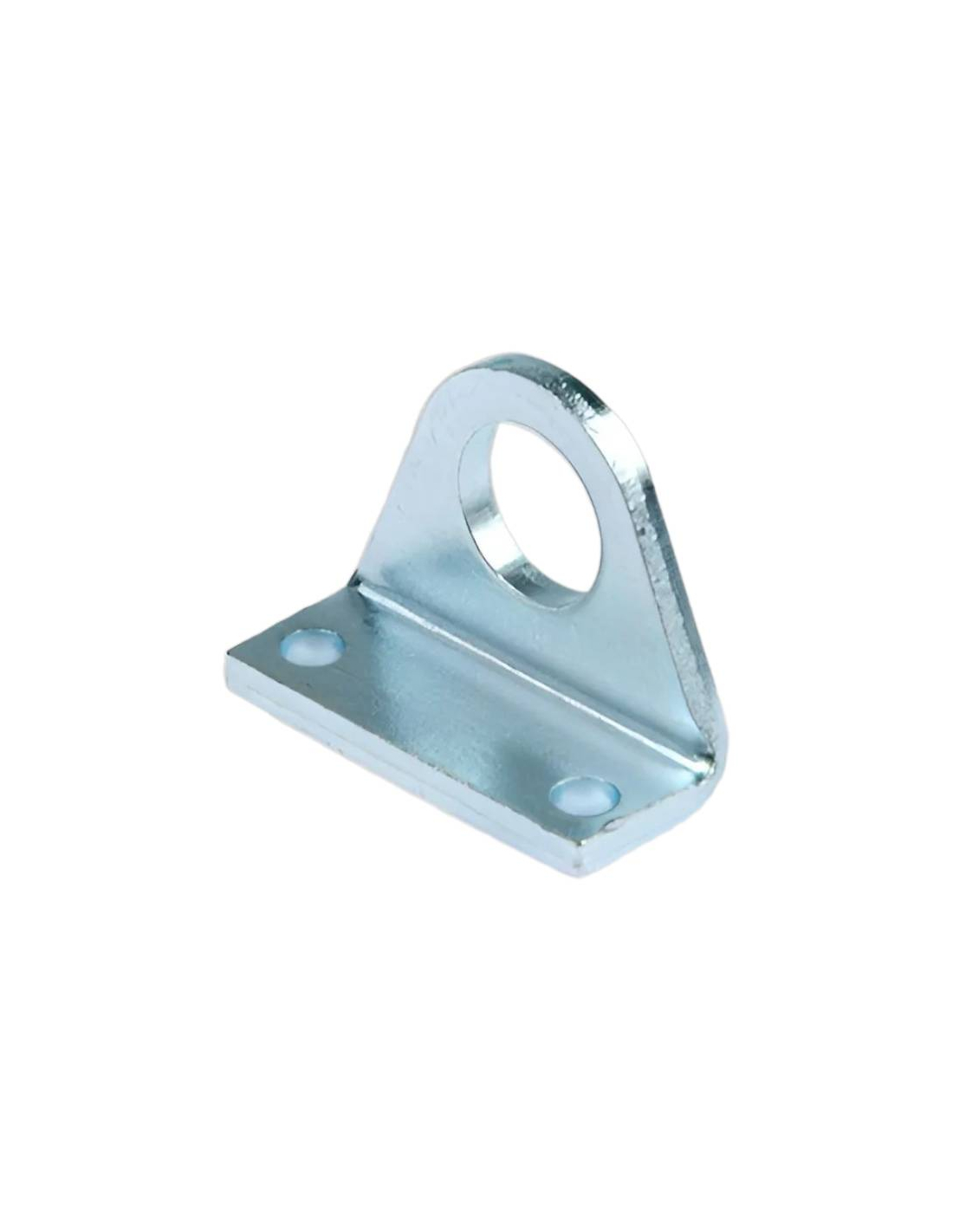

Fixing Squad for pneumatic cylinder diameter 20 or 25mm.

This flange is valid for cylinders manufactured according to ISO 6432 standard of any brand.

Reference: W0950200001

Metal Work Logo

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Fixing Squad for pneumatic cylinder diameter 20 or 25mm.

This flange allows the fastening of a cylinder from the front (cylinder head with rod) in a simple and fast way. This flange is valid for cylinders manufactured according to ISO 6432 of any brand.

Manufacturer: Metal Work

Reference: W0950200001

Other references: consult.

Front bracket dimensions cylinder 25

Professional use material, install in compliance with the regulations in force at the installation site.
