Double solenoid valve 1/8 3/2 assisted tracks - Metal Work - ADAJUSA

Double solenoid valve 1/8 3/2 assisted tracks NO - Metal Work

Name: Double solenoid valve 1/8 3/2 assisted tracks NO - Metal Work
Brand: Metal Work
SKU: 7010023500
Price: 95.1423 EUR
Availability: PreOrder

€95.14 Tax included

€78.63 tax excl.

Solenoid valve 1/8 3/2 way double outlet NO (normally open) assisted . Coils not included

Part number: 7010023500

Logotipo Metal Work

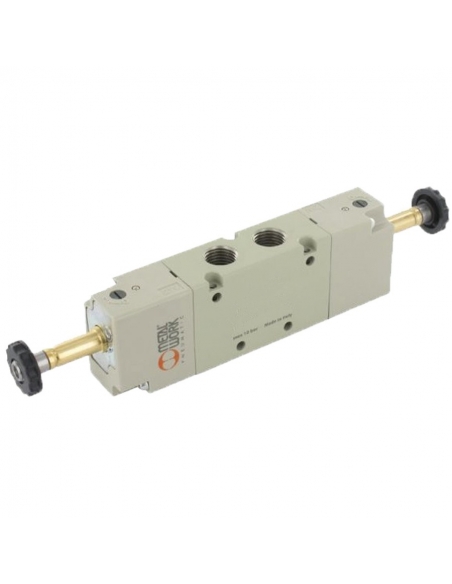

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Double 1/8" 3/2 way NOpneumatic assisted doublesolenoid valve. The solenoid valve is normally open, that is to say, without tension in the coil, the fluid or air will be passing through the solenoid valve , when the coil is put in tension the passage of the fluid or air will be interrupted. As it has an independent pressure inlet for the pilot (assisted), it can be used from 0 bar of pressure at the inlet.

Coil and connector not included.

Technical characteristics:

Manufacturer Metal Work
Part number: SOV 28 SES NO Code: 7010023500
Thread type: G 1/8"
Bistable bar: Vacuum ÷ 10
Minimum assistance pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min - bar: 121,43
Critical ratio b bar/bar: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
TRA/TRR monostable at 6 bar ms: 15/35
TRA/TRR bistable at 6 bar ms: 20/20
Voltage tolerances %: -10 ÷ +15
Class of isolation: F 155

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)
