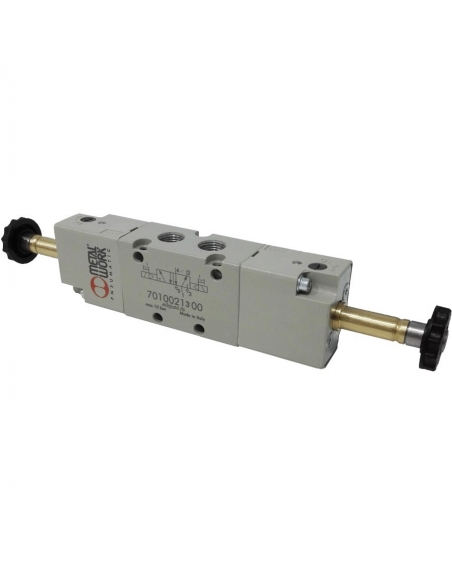

Solenoid valve 1/8 5 ways bistable differential - Metal Work

€86.33 Tax included

€71.35 tax excl.

7010021300

Solenoid valve 1/8 5 way bistable differential (coils not included)

Reference: 7010021300

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Pneumatic solenoid valve 1/8 5-way bistable bistable differential repositioning. Coil and connector not included.

Technical characteristics:

Manufacturer Metal Work
Reference solenoid valve : SOV 25 SOD 00 Code: 7010021300
Type of threads: G 1/8"
Bistable bar: 1 ÷ 10
Minimum assistance pressure bar: 2.5
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min - bar: 121,43
Critical ratio b bar/bar: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
TRA/TRR monostable at 6 bar ms: 15/35
TRA/TRR bistable at 6 bar ms: 20/20
Voltage tolerances %: -10 ÷ +15
Class of isolation: F 155

electrovalvula 1/8-5/2 biestable metal work
Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab

solenoid valve 70 series

70 series solenoid valves Metal Work

Download (2.19MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

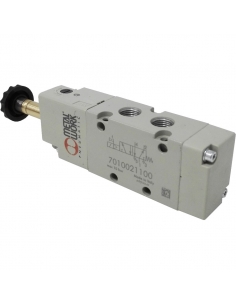

1/8 5-way monostable - Metal Work - ADAJUSA

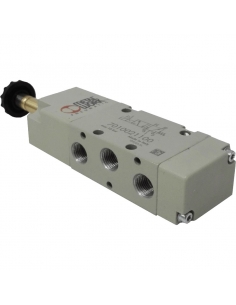

1/8 5-way monostable - Metal Work - ADAJUSA 2

Solenoid valves 1/8

Solenoid valve 1/8 5 monostable roads without coil - Metal Work

€60.78 (€50.23 tax excl.)

5-way 1/8" electrovalves, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK. Coil and connector not included. Reference: 7010021100 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1/8 5-way bistable solenoid valve - Metal Work - ADAJUSA

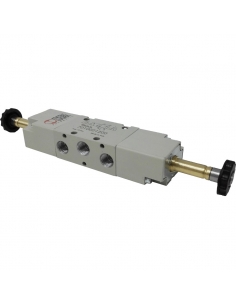

1/8 5-way bistable solenoid valve - Metal Work - ADAJUSA 2

Solenoid valves 1/8

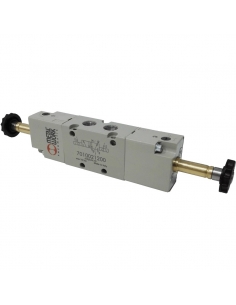

Electrovalve 1/8 5-bistable tracks without coils - Metal Work

€85.14 (€70.36 tax excl.)

Electrovalve 1/8 5-way bistable (coils not included)Reference: 7010021200 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 1/8 5 ways 3 positions closed centers 24Vdc - Metal Work - ADAJUSA

Solenoid valve 1/8 5 ways 3 positions closed centers 24Vdc - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

Solenoid valve 1/8 5 ways 3 positions closed centers 24Vdc 2 W - Metal Work

€120.13 (€99.28 tax excl.)

Solenoid valves of 1/8" of 5 ways and 3 positions, closed centers, metal body, for pneumatic applications of industrial or general use. Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Connector 22 mm Representative image for illustrative purposes, the item supplied will correspond to the specifications...

Assisted 1/8 5-way bistable solenoid valve - Metal Work - ADAJUSA

Solenoid valves 1/8

Solenoid valve 1/8 5-way assisted bistable - Metal Work

€90.53 (€74.82 tax excl.)

Solenoid valves 1/8", 5 ways and 2 positions, pilot assisted, for pneumatic applications for industrial or general use. Coil and connector not included.Part number: 7010021600 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

16 other products in the same category:

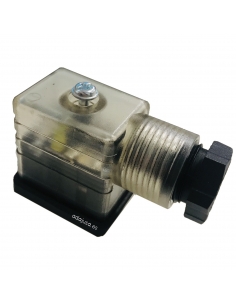

Size 30 solenoid valve connector with VDR 220V and LED

Accessories for solenoid valves

Solenoid valve connector size 30 with VDR 220V and led

€7.33 (€6.06 tax excl.)

Connector for solenoid valve with VDR 30 V protector with Led. For 22mm coils. Reference: W0970520033 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 1/8 5/2 monostable with coil 110 Vac BASIC - Metal Work - ADAJUSA

Solenoid valve 1/8 5/2 monostable with coil 110 Vac BASIC - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

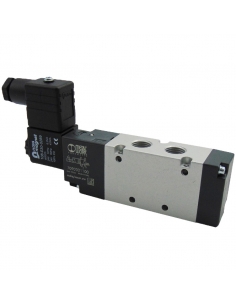

Solenoid valve 1/8 5/2 monostable 110 Vac BASIC - Metal Work

€66.43 (€54.90 tax excl.)

Solenoid valve 1/8 5 way monostable with connector and 110 Vac coilRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/8 3-way monostable solenoid valve 230Vac - Metal Work

1/8 3-way monostable solenoid valve 230Vac - Metal Work 2

Pack

Solenoid valves 1/8

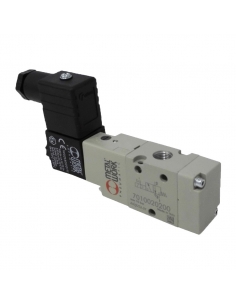

Solenoid valve 1/8 3-way monostable 230Vac - Metal Work

€65.81 (€54.39 tax excl.)

Electrovalve 1/8 3-way monostable normally closed (NC), with coil at 230Vac and connector 22 mm Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 1/8 5/3 exhaust centers 24Vdc - Metal Work - ADAJUSA

Pack

Solenoid valves 1/8

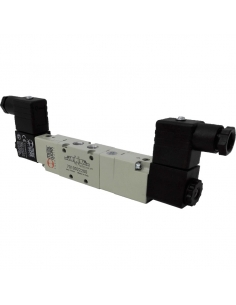

Solenoid valve 1/8 5/3 exhaust centers 24Vdc 2 W - Metal Work

€120.13 (€99.28 tax excl.)

1/8" 5-way 3-position solenoid valves, open exhaust centers, metal body, for pneumatic applications for industrial or general use. Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Connector 22 mm. Representative image for illustrative purposes, the item supplied will correspond to the specifications...

Adapter 1/8" - 1/4" Metal Work - ADAJUSA

Solenoid valves 1/8

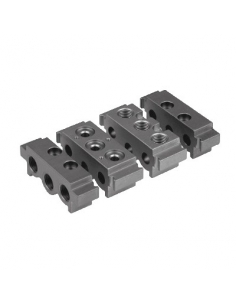

Adapter 1/8 - 1/4 - Metal Work

€17.70 (€14.63 tax excl.)

Size 1/8" - 1/4" adapter for valves and solenoid valves series 70 PNV-SOV and BASIC seriesReference: 0226006600 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve coil 220VAC Metal Work W0215000031 Price adajusa

Accessories for solenoid valves

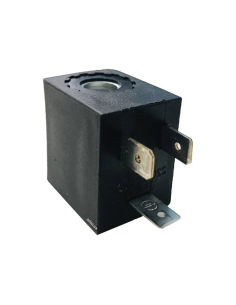

Solenoid valve coil 230Vac 5VA T22 diameter 8 - Metal Work

€8.86 (€7.32 tax excl.)

Coil for solenoid valve size 22mm, voltage 220 - 240Vca., with a consumption of 5VA, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000031 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

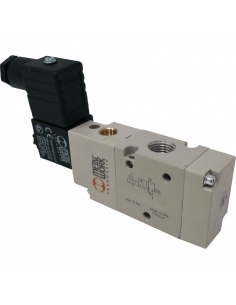

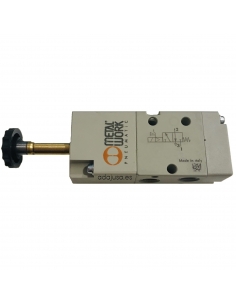

1/8 3-way monostable assisted solenoid valve 24Vdc - Metal Work - ADAJUSA

1/8 3-way monostable assisted solenoid valve 24Vdc - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

Solenoid valve 1/8 3-way monostable assisted 24Vdc - Metal Work

€68.26 (€56.41 tax excl.)

Electrovalve 1/8 3-way assisted monostable normally closed (NC), with coil at 24 Vdc and connector 22 mm Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

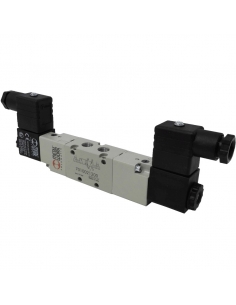

Solenoid valve 1/8 5 ways bistable - Metal Work 24Vdc - ADAJUSA

Solenoid valve 1/8 5 ways bistable - Metal Work 24Vdc - ADAJUSA 2

Pack

Solenoid valves 1/8

Solenoid valve 1/8 5 ways bistable 24Vdc 2 W - Metal Work

€105.73 (€87.38 tax excl.)

Solenoid valve 1/8 5 ways bistable with conetores and coils of voltage 24Vdc. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

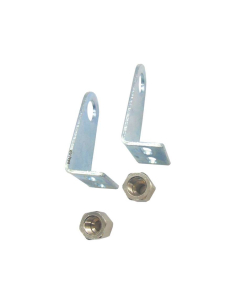

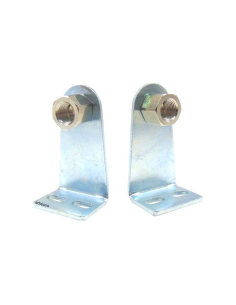

Support Kit H120 1/8 CSA-18-OO Metal Work | ADAJUSA | price

Support Kit H120 1/8 CSA-18-OO Metal Work | ADAJUSA | price 2

Solenoid valves 1/8

Support Kit H120 1/8 CSA-18-OO - Metal Work

€16.40 (€13.55 tax excl.)

H120 1/8" bracket kit for valves and solenoid valves series 70 PNV-SOV and BASIC seriesReference: 0221000190 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 1/8 5/2 monostable with coil 24Vcc BASIC - Metal Work - ADAJUSA

Solenoid valve 1/8 5/2 monostable with coil 24Vcc BASIC - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

Solenoid valve 1/8 5/2 monostable 24 Vcc BASIC - Metal Work

€66.43 (€54.90 tax excl.)

Solenoid valve 1/8 5 way monostable with 24 Vdc connector and coilRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 ways NO - Metal Work

€92.25 (€76.24 tax excl.)

Solenoid valve 1/8 3/2 way double outlet NO (normally open). Coils not includedReference: 7010023200Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Coil for solenoid valve 24Vac size 22 Aignep: ADAJUSA : price

Accessories for solenoid valves

Coil solenoid valve 24Vac 5VA Coil Size 22mm diameter 9 - Aignep

€4.38 (€3.62 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vac, for Ø9mm cores. Coil consumption 5VA. Valid for solenoid valves with 9mm actuator core.Reference: SOL01024A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/8 3/2 ways - Metal Work - ADAJUSA

Solenoid valves 1/8

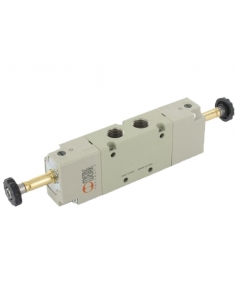

Double solenoid valve 1/8 3/2 ways NC-NO - Metal Work

€92.25 (€76.24 tax excl.)

Solenoid valve 1/8 3/2 way double output. One NC (normally closed) input and the other NO (normally open) input. Coils not includedReference: 7010023300Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Double solenoid valve 1/8 3/2 ways NO with coils - Metal Work

Pack

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 assisted pathways NC-NO 110Vca - Metal Work

€118.59 (€98.01 tax excl.)

Solenoid valve 1/8 3/2 way assisted double output. One NC input (normally closed) and the other NO input (normally open). With 110Vac connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

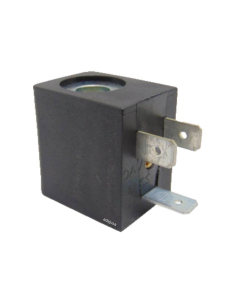

Coil for solenoid valve 24Vdc size 22 Aignep | ADAJUSA | price

Accessories for solenoid valves

Coil solenoid valve 24Vdc 3W Coil Size 22mm diameter 9 - Aignep

€4.38 (€3.62 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc, for Ø9mm cores. Coil consumption 3W. Valid for solenoid valves with 9mm actuator core.Reference: SOL01024C1000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

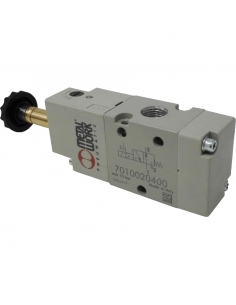

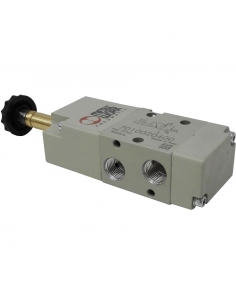

Solenoid valve 1/8 3 ways monostable open (NO) without coil - Metal Work - ADAJUSA
