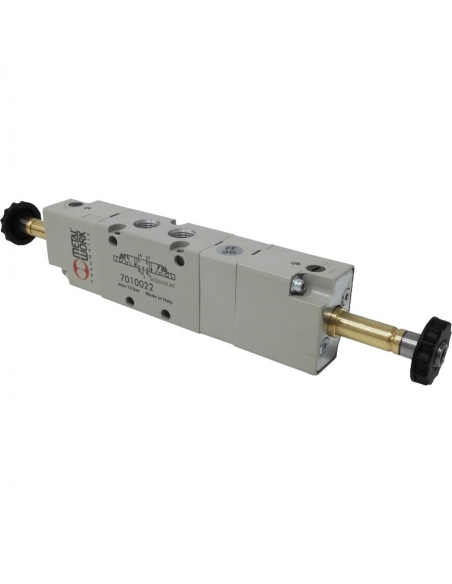

Solenoid valve 1/8 5 ways 3 positions assisted closed centers - Metal Work

Name: Solenoid valve 1/8 5 ways 3 positions assisted closed centers - Metal Work
Brand: Metal Work
SKU: 7010022400
Price: 101.882 EUR
Availability: PreOrder

€101.88 Tax included

€84.20 tax excl.

Solenoid valves 1/8", 5 ways and 3 positions, assisted, closed centers, metal body, for pneumatic applications for industrial or general use.

Part number: 7010022400

Esquema neumático electroválvula 5 vías 3 posciones centros cerrados

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Solenoid valves 1/8" 5 ways and 3 positions assisted, closed centers, metal body, for pneumatic applications for industrial or general use, the most common application is to control double acting cylinders.

The solenoid valve has 3 positions with 2 coils, if one coil is fed the cylinder moves forward, if both coils are left without tension, the cylinder stops but the air is kept in the circuit, so the cylinder maintains the pressure (force) and if the other coil is fed, the cylinder retracts.

Coil and connector not included.

Technical characteristics:

Manufacturer of the solenoid valve : Metal Work.
Part number of the solenoid valve : 7010022400 - SOV26SESCC
Working pressure of the solenoid valve : 2,5 to 10 bar.
Minimum working pressure: 2.5 bar.
Working temperature: -10ºC to 60ºC.
Nominal diameter: 5mm.
Flow rate at 6 bar Δp 1 bar: 550 Nl/min.

Dimensiones electroválvula 1/8 5/3 Metal Work
Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
