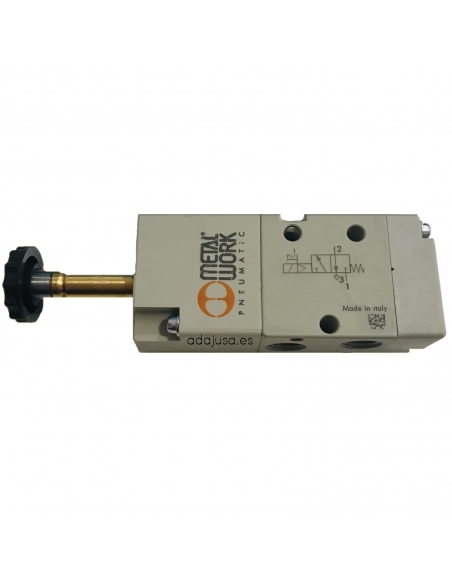

1/8 3-way monostable solenoid valve without coil - Metal Work - adajusa.es
Coil solenoid valve 110Vac 3.5VA T22 '8 - Metal Work - adajusa.es
Solenoid valve connector size 22 - Metal Work - adajusa.com.com.
1/8 3-way monostable assisted solenoid valve 110Vac - Metal Work - ADAJUSA

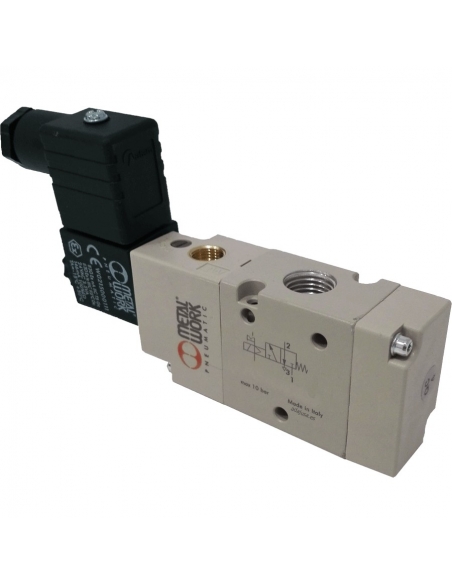

Solenoid valve 1/8 3-way monostable assisted 110Vac - Metal Work

€68.26 Tax included

€56.41 tax excl.

PK-120500110

Electrovalve 1/8 3-way assisted monostable normally closed (NC), with coil at 110Vac and connector 22 mm

simbolo electrovalvula neumatica 3 vias

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.



This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valve 1/8 3 ways monostable assisted, normally closed NC with 110Vac coil. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

Components included:

  • Solenoid valve 1/8 3/2 - monostable NC.
  • Coil 110 Vac 3.5 VA
  • Connector size 22
Features:

  • Manufacturer: Metal Work
  • Solenoid valve reference: 7010020500 - SOV23SESNC
  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 5 mm
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • Bistable TRA/TRR at 6 bar ms: 20/20
  • Voltage: 110Vac
  • Power: 3.5 VA
  • Voltage tolerances %: -10 ÷ +15

Dimensiones electrovalvula 1/8-3/2 monoestable


Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
