Solenoid valve 1/8 3/2 single solenoid NC - Aignep
Solenoid valve 1/8 3/2 single solenoid NC - Aignep

Solenoid valve 1/8 3/2 single solenoid NC - Aignep

€34.68 Tax included

€28.66 tax excl.

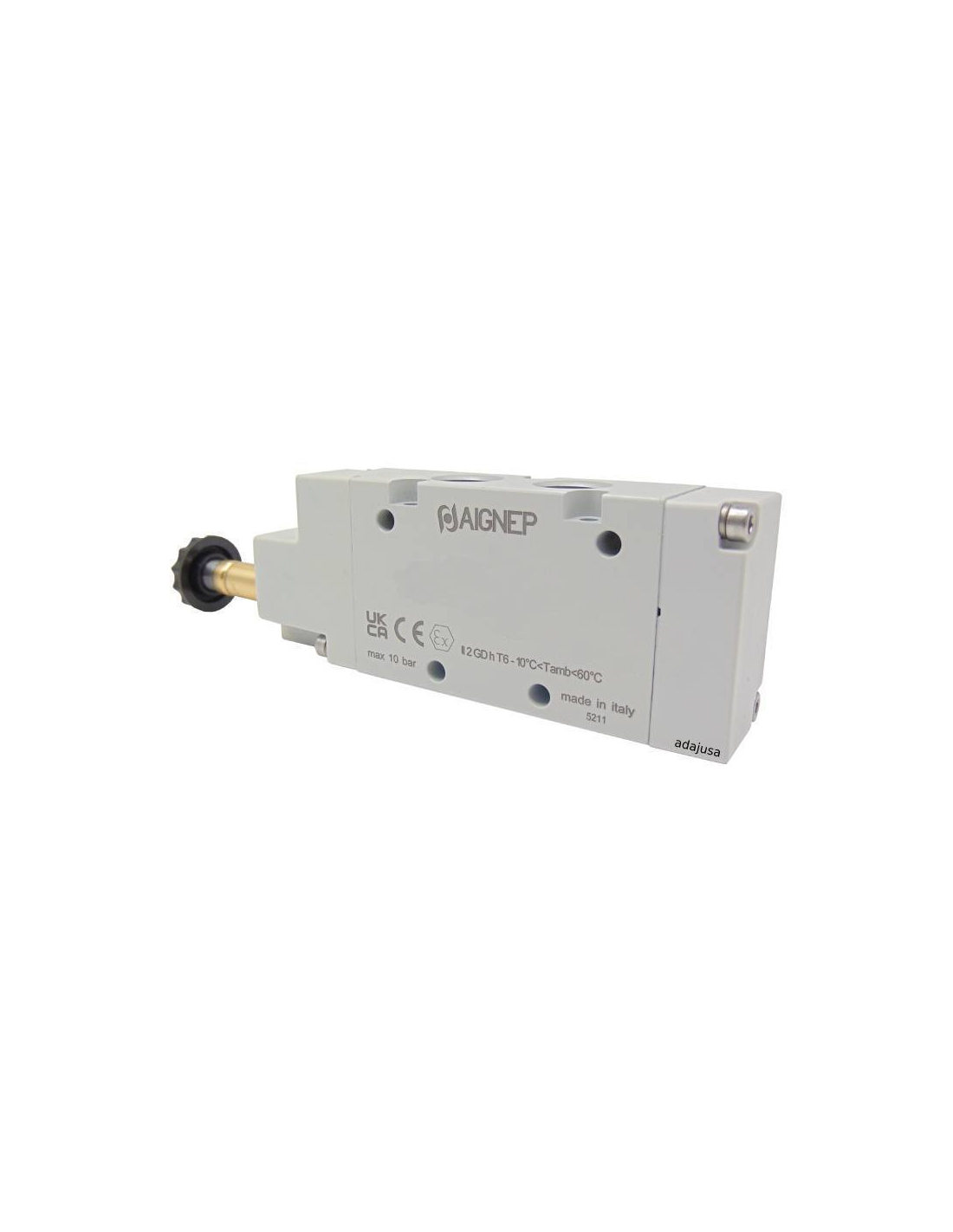

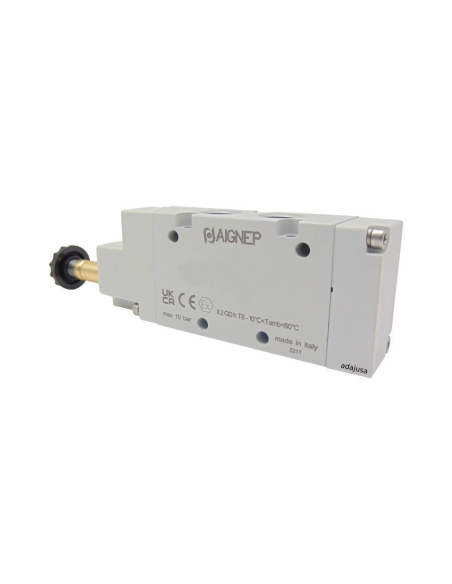

Solenoid valve 1/8 3 way monostable NC (coils not included), with G1/8" threads, anodized aluminum body, NBR seals.

Reference: 01VS03NC02
Esquema neumatico electrovalvula 3 vias monoestable
Logotipo Aignep
Logotipos normativas Aignep Adajusa (1)
Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

No queries yet, leave the first!


Pneumatic solenoid valve 1/8 3 way monostable NC (normally closed) 01V series. It blocks the air flow when not activated and allows the air flow when its control is activated. Coil and connector not included.
Body made of anodized and painted aluminum, nickel-plated aluminum slide and NBR gaskets. European manufacture.

Technical characteristics:

  • Manufacturer: Aignep
  • Part number: 01VS03NC02
  • Thread type: G 1/8"
  • Monostable bar: 2 to 10
  • Operating temperature °C: -10 ÷ +60
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740 Nl/mi
  • Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10% Voltage tolerances: ±10
  • Class of isolation: F 155
  • Fluid: Filtered air without lubrication
  • Number of ways: 3
  • Operation: Monostable
  • Seal material: NBR
Dimensiones electrovalvulas 3 vias monoestable Aignep Adajusa
Imagen construtiva electrovalvulas 3 vias Aignep Adajusa Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
