Solenoid valve 1/8 5-way assisted bistable - Metal Work

€86.32 Tax included

€71.34 tax excl.

Solenoid valves 1/8", 5 ways and 2 positions, pilot assisted, for pneumatic applications for industrial or general use. Coil and connector not included.

Part number: 7010021600

Logo-Metal-Work

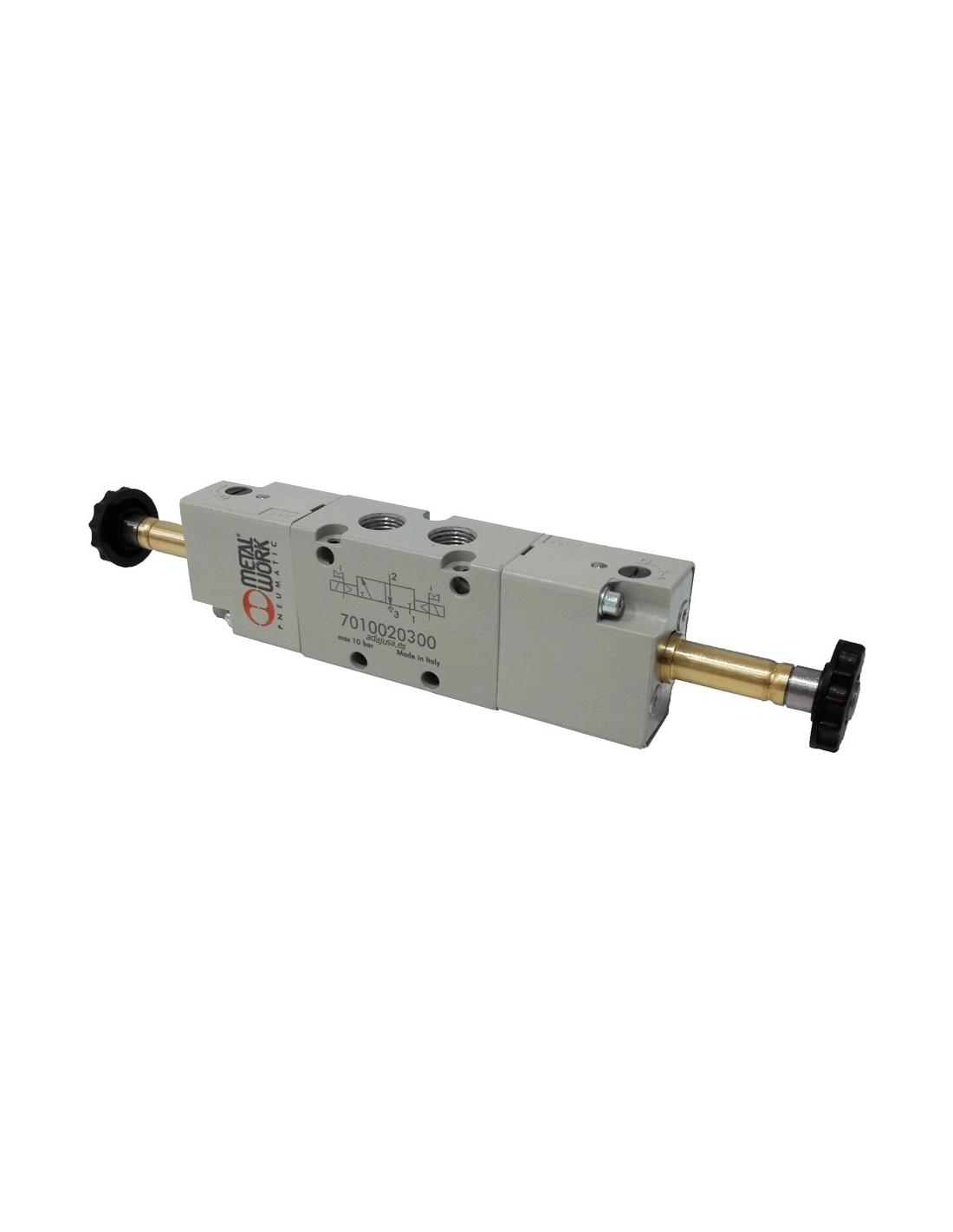

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valves of 1/8", 5 ways and 2 assisted positions. As it has an independent pressure inlet for the pilot (assisted), it can be used from 0 bar of pressure at the inlet.

Coils and connectors not included.

Technical characteristics:

  • Manufacturer of the solenoid valve : Metal work.
  • Part number of the solenoid valve : 7010021600 - SOV 25 SEB OO
  • Working pressure of the solenoid valve : 0 to 10 bar.
  • Minimum working pressure: 0 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow rate at 6 bar Δp 1 bar: 550 Nl/min.
  • Manual operation: Yes.


Material for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the technical data sheet by clicking on the "Attachments" tab
