Electrovalve 1/8 3-way assisted monostable - Metal Work - ADAJUSA

Solenoid valve 1/8 3-way monostable assisted without coil - Metal Work

Name: Solenoid valve 1/8 3-way monostable assisted without coil - Metal Work
Brand: Metal Work
SKU: 7010020500
Price: 56.265 EUR
Availability: PreOrder

€56.27 Tax included

€46.50 tax excl.

Electrovalve 1/8 3-way monostable assisted without coil. Brand Metal Work. Normally closed (NC).
Reference: 7010020500

Logotipo Metal Work
Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Description
Frequently questions

Electrovalve 1/8 3-way monostable assisted without coil, normally closed NC. Having independent pressure inlet for the pilot (assisted) allows to be used from 0 bars of pressure at the inlet.

Manufacturer Metal Work:
Reference: SOV23SESNC Code: 7010020500

characteristics:

Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 5 mm
Conductance C Nl/min · bar: 121.43
Critical ratio b bar/bar: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550
SINGLE-SEAT TRA/TRR at 6 bar ms: 15/35
TRA/TRR bistable at 6 bar ms: 20/20
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Dimensiones electrovalvula 1/8-3/2 monoestable

Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve 1/8 3 monostable roads without coil - Metal Work

Metal Work

7010020200

€53.89 (€44.54 tax excl.)

Solenoid valve 1/8 3 ways monostable without coil. Normally closed (NC).Reference: 7010020200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

1/8 5-way monostable - Metal Work - ADAJUSA

1/8 5-way monostable - Metal Work - ADAJUSA 2

Solenoid valves 1/8

Solenoid valve 1/8 5 monostable roads without coil - Metal Work

Metal Work

7010021100

€59.00 (€48.76 tax excl.)

5-way 1/8" electrovalves, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK. Coil and connector not included. Reference: 7010021100 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

1/8 5-way bistable solenoid valve - Metal Work - ADAJUSA

1/8 5-way bistable solenoid valve - Metal Work - ADAJUSA 2

Solenoid valves 1/8

Electrovalve 1/8 5-bistable tracks without coils - Metal Work

Metal Work

7010021200

€82.66 (€68.31 tax excl.)

Electrovalve 1/8 5-way bistable (coils not included)Reference: 7010021200 Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Solenoid valve 1/8 3 monostable vias 24Vdc - Metal Work - ADAJUSA

Solenoid valve 1/8 3 monostable vias 24Vdc - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

Solenoid valve 1/8 3-way monostable 24Vdc - Metal Work

Metal Work

PK-12020024C

€63.80 (€52.73 tax excl.)

Electrovalve 1/8 3-way monostable normally closed (NC), with coil at 24 Vdc and connector 22 mm Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

16 other products in the same category:

Accessories for solenoid valves

Coil solenoid valve 12Vdc 3W Coil Size 22mm diameter 9 - Aignep

Aignep

SOL01012C1000

€4.28 (€3.54 tax excl.)

Coil for solenoid valve size 22mm, voltage 12Vdc, for Ø9mm cores. Coil consumption 3W. Valid for solenoid valves with 9mm actuator core.Reference: SOL01012C1000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

Solenoid valve 1/8 5 ways 3 assisted positions closed centers with coils - Metal Work - ADAJUSA

Pack

Blue double lip NBR seals

Solenoid valve 1/8 5 way 3 positions assisted c.c. 230 Vac- Metal Work

Metal Work

PK-1853CC230

€121.70 (€100.58 tax excl.)

Accessories for solenoid valves

Coil solenoid valve 24Vac 5VA Size 22mm diameter 9 ATEX - Aignep

Aignep

SOLX1024A2000

€8.34 (€6.89 tax excl.)

ATEX coil for solenoid valve size 22mm, voltage 24Vac, for Ø9mm cores. Coil consumption 5VA. Valid for solenoid valves with 9mm actuator core.Reference: SOLX1024A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

Solenoid valve 1/8 3 ways with bistable coil - Metal Work - ADAJUSA

Solenoid valve 1/8 3 ways with bistable coil - Metal Work - ADAJUSA 2

Pack

Solenoid valves 1/8

Solenoid valve 1/8 3 vias bistable 24Vac 3.5VA - Metal Work

Metal Work

PK-12010024A

€99.87 (€82.54 tax excl.)

3-way, 2-position 1/8" electrovalves with 24Vac coils, for pneumatic applications for industrial or general use. Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

Accessories for solenoid valves

Coil solenoid valve 110Vac 4,8VA Size 30mm diameter 9 ATEX - Aignep

Aignep

SOLX2110A2000

€89.92 (€74.31 tax excl.)

ATEX coil for solenoid valve size 30mm, voltage 110Vac, for Ø9mm cores. Coil consumption 4,8VA. Valid for solenoid valves with 9mm actuator core.Reference: SOLX2110A2000 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.For more information, download the attached datasheet.

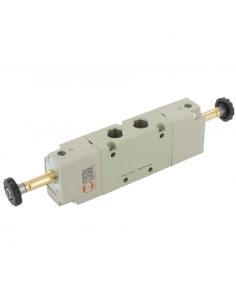

Double solenoid valve 1/8 3/2 ways NC-NO with coils - Metal Work

Double solenoid valve 1/8 3/2 ways NC-NO with coils - Metal Work 2

Pack

Solenoid valves 1/8

Double solenoid valve 1/8 3/2 ways NC-NO 24Vcc - Metal Work

Metal Work

PK-ED183224CN

€109.37 (€90.39 tax excl.)

Solenoid valve 1/8 3/2 way double output. One NC (normally closed) input and the other NO (normally open) input. With 24Vdc connectors and coilsRepresentative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Pack

Solenoid valves 1/8

Solenoid valve 1/8 5 way monostable 12Vdc 3W - Aignep

Aignep

01VS050002-12Vcc

€44.62 (€36.88 tax excl.)

Complete 1/8 5 way monostable solenoid valve, with 12Vdc coil and 3W consumption, connector size 22mm, with G1/8" threads, anodized aluminum body, NBR seals.Reference: 01VS050002-12Vdc Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated .

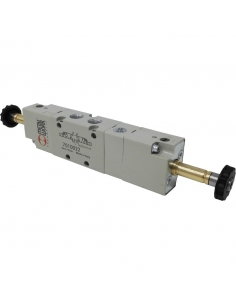

Solenoid valve 1/8 5 way 3 positions assisted escape centers - Metal Work - ADAJUSA
