• Pack
Solenoid valve 1/8 5 vias 3 positions pressure centers - Metal Work - adajusa.es
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22
Solenoid valve 1/8 5 ways 3 positions pressure centers 110 Vac - Metal Work - ADAJUSA
Solenoid valve 1/8 5 vias 3 positions pressure centers - Metal Work - adajusa.es
24Vdc 2.5 W T22 x 8 solenoid coil - Metal Work
Solenoid valve connector size 22
Solenoid valve 1/8 5 ways 3 positions pressure centers 110 Vac - Metal Work - ADAJUSA

Solenoid valve 1/8 5 vias 3 positions pressure centers 110Vac 3.5VA - Metal Work

€114.36 Tax included

€94.51 tax excl.

1/8" 5-way, 3-position solenoid valves,pressure centers, metal body, for pneumatic applications for industrial or general use. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of Ø8mm. Connector 22 mm.


Logo-Metal-Work

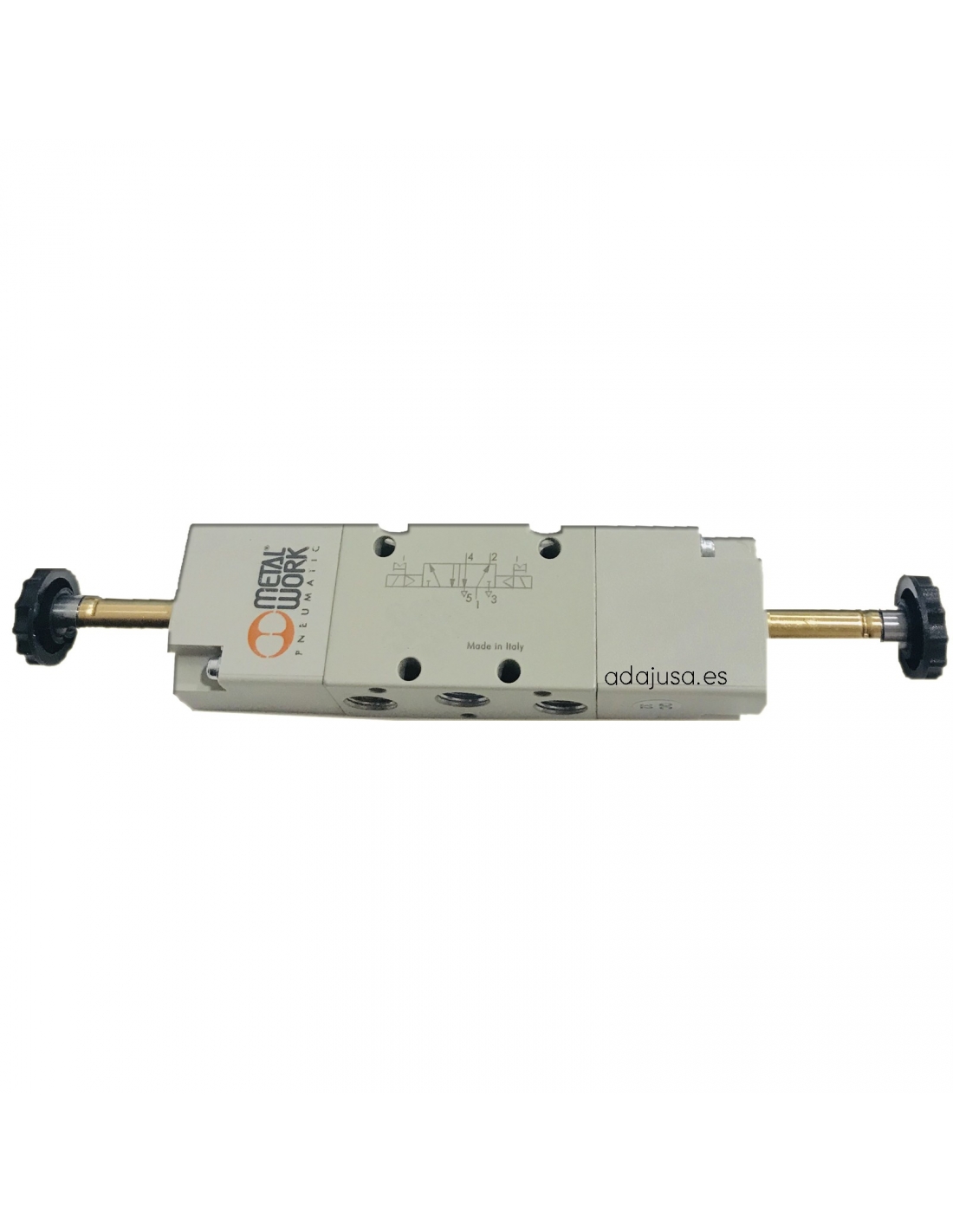

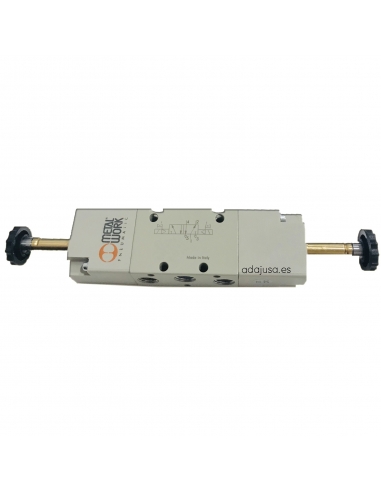

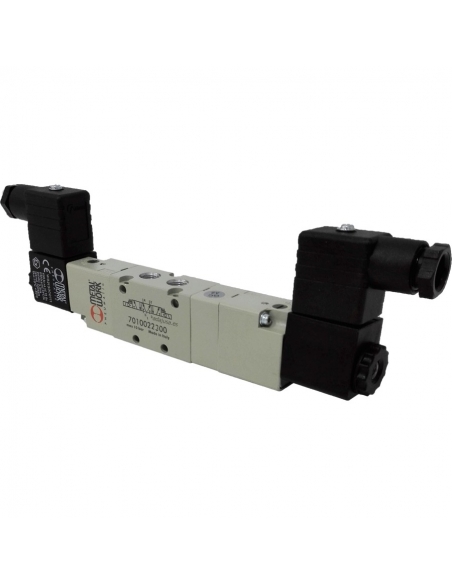

Representative image for illustrative purposes, the item supplied shall correspond to the specifications indicated

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valves of 1/8" of 5 ways and 3 positions, centers in pressure, metal body, for pneumatic applications of industrial or general use, the most common application is of control of cylinders of double effect. Manufactured in Europe by METAL WORK.

Coil for solenoid valve size 22mm, voltage 110Vac., with a consumption of 3.5VA, for cores of Ø8mm.

Plastic connector 22 mm.

The supply includes:

  • 1 - Solenoid valve 1/8 5/3 pressure centers
  • 2 - Coils 110Vac 3,5VA
  • 2 - 22mm connectors

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Solenoid valve reference: 7010022300 - SOV 26 SOS PC
  • Solenoid valve working pressure: 2.5 to 10 bar.
  • Voltage 110Vac
  • Consumption: 3.5VA
  • Minimum working pressure: 2.5 bar.
  • Working temperature: -10ºC to 60ºC.
  • Nominal diameter: 5mm.
  • Flow at 6 bars Δp 1 bar: 550 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvula 1/8 5/3 Metal Work

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)
