Solenoid valve 1/8 5 ways bistable 24Vdc 2 W - Metal Work

€100.64 Tax included

€83.17 tax excl.

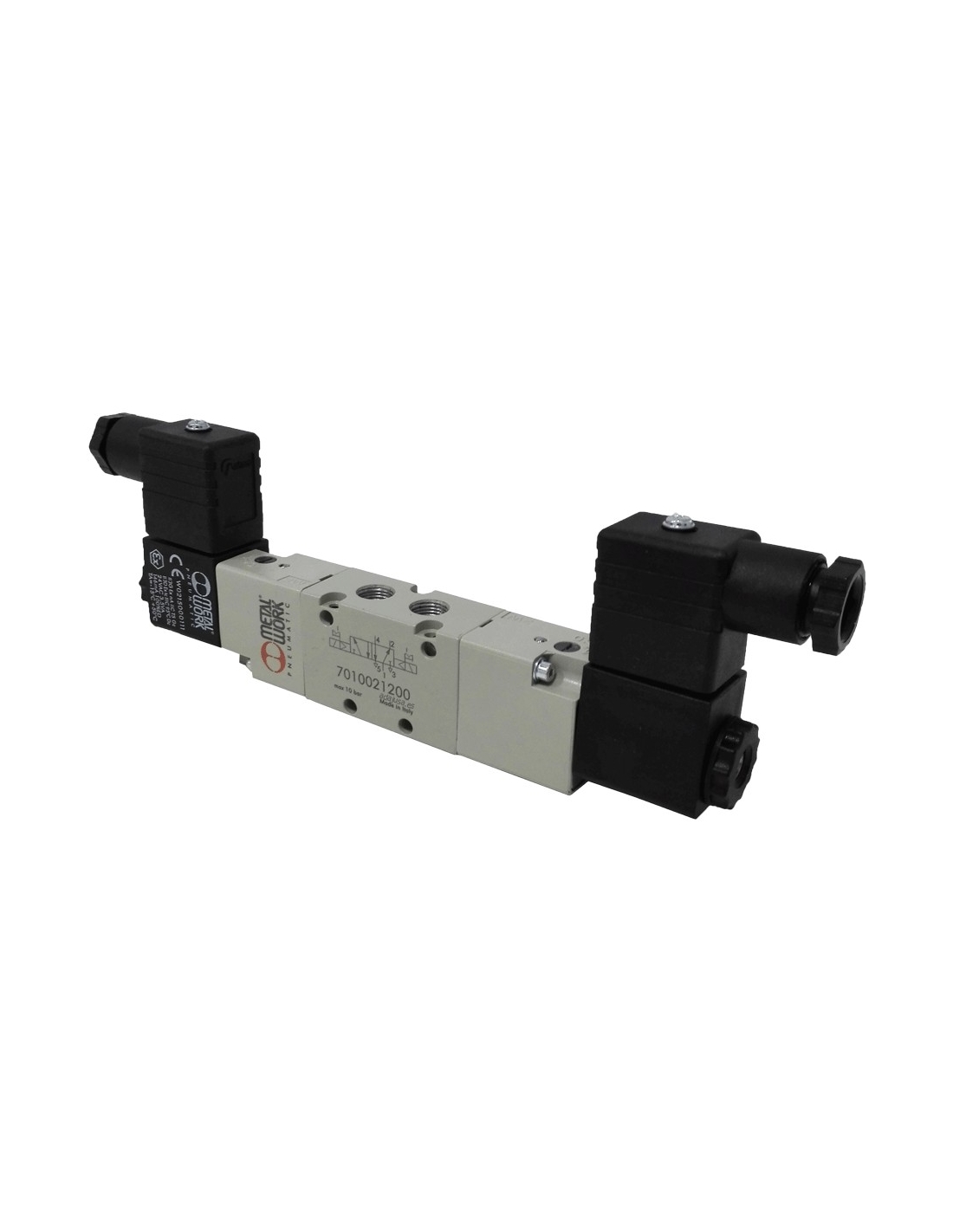

Solenoid valve 1/8 5 ways bistable with conetores and coils of voltage 24Vdc.


Logotipo Metal Work



Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns

Pneumatic solenoid valve of 1/8 5 ways bistable, with nucleus for 8mm coil. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

Components included:

  • Solenoid valve 1/8-5/2 Bistable.
  • 2 Coils 24 Vdc 2 W.
  • 2 Plastic connectors.
Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm.

Specifications:

  • Solenoid valve manufacturer: Metal Work.
  • Thread type: G 1/8"
  • Bistable bar: 1 ÷ 10
  • Minimum assist pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121,43
  • Critical bar/bar ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • Bistable TRA/TRR at 6 bar ms: 20/20
  • Voltage tolerances %: -10 ÷ +15
  • Insulation class: F 155
electrovalvula 1/8-5/2 biestable




Material for professional use, install in compliance with the regulations in force at the place of installation.


To expand the information you can download the technical sheet by clicking on the "Attachments" tab
