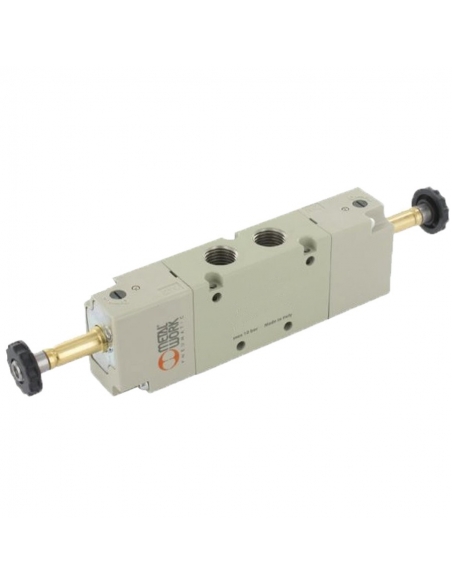

Double solenoid valve 1/8 3/2 assisted tracks NC - Metal Work

Double 1/8" 3/2 way NCpneumatic assisted doublesolenoid valve. The solenoid valve is normally closed (NC), i.e. without voltage on the coil, the inlet is not connected to the outlet, i.e. there is no air pressure at the outlet, the outlet is connected to the exhaust of the valve. When the coil is energized, the solenoid valve is activated, air circulation is produced between the inlet and outlet of the solenoid valve . As it has an independent pressure inlet for the pilot (assisted), it can be used from 0 bar of pressure at the inlet.

Coil and connector not included.

Technical characteristics:

• Manufacturer Metal Work
• Part number: SOV 28 SES NC Code: 7010023400
• Thread type: G 1/8"
• Bistable bar: Vacuum ÷ 10
• Minimum assistance pressure bar: 2.5
• Operating temperature °C: -10 ÷ +60
• Nominal diameter mm: 5
• Conductance C Nl/min - bar: 121,43
• Critical ratio b bar/bar: 0,32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
• Flow rate at 6 bar ΔP 1 bar Nl/min: 550
• TRA/TRR monostable at 6 bar ms: 15/35
• TRA/TRR bistable at 6 bar ms: 20/20
• Voltage tolerances %: -10 ÷ +15
• Class of isolation: F 155

Equipment for professional use, to be installed in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the "Attachments" tab
