3/4 Manual Lubricator Size 3 Technopolymer FRL...
3/4 Manual Lubricator Size 3 Technopolymer FRL EVO Series - Aignep

3/4 Manual Lubricator Size 3 Technopolymer FRL EVO Series - Aignep

€52.79 Tax included

€43.63 tax excl.

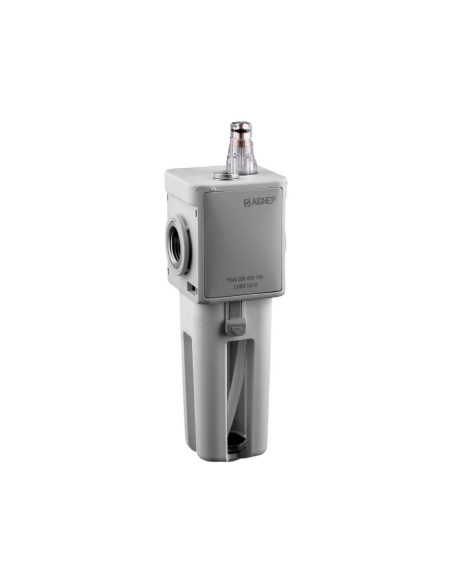

3/4 pneumatic lubricating cup in technopolymer with a compact size (T3) and manual oil filling type. Made in Italy.

Series: FRL Evo
Reference: Y040307000100
Logo-Metal-Work Aignep logoregulations

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



No queries yet, leave the first!
Privacy
Shipments
Returns


3/4" pneumatic lubricating cup, to be coupled to a filtering unit or for independent use. The lubricating cup is made of high-resistance technopolymer.

The oil is filled manually, by opening the cap on the top of the lubricator or by unscrewing the cup, making sure that there is no pressure in the circuit. The oil in the circuit is regulated using a screwdriver on the cap screw, adjusting it to one drop every 300/600 Nl/min.


manual lubricator


The amount of oil can be measured accurately as the descent can be seen through the transparent glass.

The main application of this series of filter groups is pneumatic automation, compressed air circuits and installations and compressors.

Characteristics:

  • Manufacturer: Aignep
  • Manufacturer reference: Y040307000100
  • Thread Size: 3/4".
  • Group size: size 3.
  • Maximum inlet pressure: 13 bar .
  • Glass capacity: 151 cm3
  • Flow rate at 6 bar (∆P 1 bar ): 11700 Nl/min
  • Mounting screws: M6x15
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.
  • Recommended oil: CLASS ISO 22 ISO 3448 STANDARD
  • Mounting accessories: not included

For other sizes or references: consult.

Dimensions of lubricator series syntesi

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

1/2 metal pressure regulator - Metal Work
3/4 FR-L filtering groups

Regulator pressure 3/4 0-12 bar metal New deal - Metal Work

Metal Work
1502003
€127.98 (€105.77 tax excl.)
Pressure regulator of 3/4 regulation 0-12 Kgrs, extremely reliable and robust metal body. Allows stability of the output pressure to the preset pressure. Possibility of fixing by side holes. The pressure gauge must be ordered separately. Ref: 1502003 - REG 3/4 012 Representative image for illustrative purposes, the article supplied will correspond...
Filter-regulator 3/4 technopolymer
3/4 FR-L filtering groups

Pneumatic filter-regulator 3/4 0-12 bar semi-automatic drain Syntesi series - Metal Work

Metal Work
5625B265
€65.76 (€54.35 tax excl.)
Filter with 3/4 pneumatic pressure regulator, 3/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Filter-regulator 3/4 T2 Syntesi - Metal work - ADAJUSA
3/4 FR-L filtering groups

Pneumatic filter-regulator 3/4 0-12 bar automatic drain Syntesi series - Metal Work

Metal Work
5625B565
€84.91 (€70.17 tax excl.)
Filter with 3/4 pneumatic pressure regulator, 3/4 maintenance unit for pneumatic applications, automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series: SynthesisReference:...
Pressure Regulator with...
3/4 FR-L filtering groups

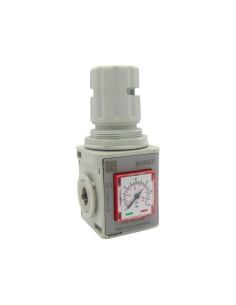

Pressure Regulator with pressure gauge and lockable 3/4 0-8 bar size 3 FRL EVO series -...
