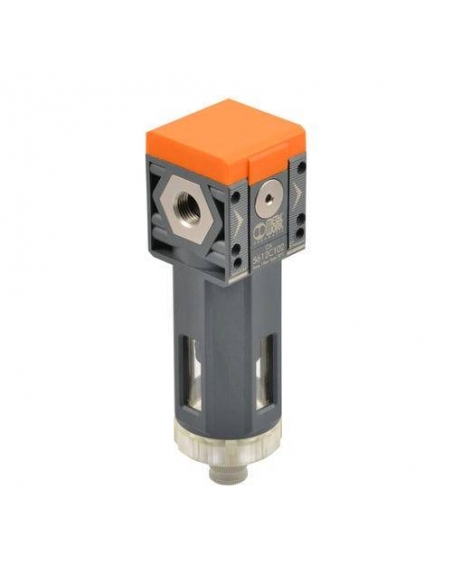

Filter 3/4 20 microns automatic drain size 2 Syntesi series - Metal Work

3/4 filter cup with a filtration degree of 20μm to retain solid or liquid impurities from the air compressor. Compact size (SY2). The type of purge is automatic, it discharges when the pressure in the filter approaches zero.

Characteristic:

• Manufacturer: Metal Work
• Manufacturer reference: 5625F505
• Threaded drive: 3/4"
• Group Size: Size 2
• Filtered degree: 20 μm
• Maximum inlet pressure ( bar /Mpa/psi): 13 / 1.3 / 188
• Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 0.5 bar (0.05 MPa; 7 psi) ( Nl/min): 3800
• Flow rate at 6.3 bar (0.63 MPa, 91 psi) ∆P 1 bar (0.1 MPa, 14 psi) (Nl/min): 5200
• Fluid: Compressed air or other inert gases
• Bowl capacity (condensation) (cm3): 70
• Flow rate of additional air intakes at 6.3 bar (Nl/min): 1500
• Wall fixing screws: Number 2 M5 screws
• Mounting position: Vertical.
• Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
