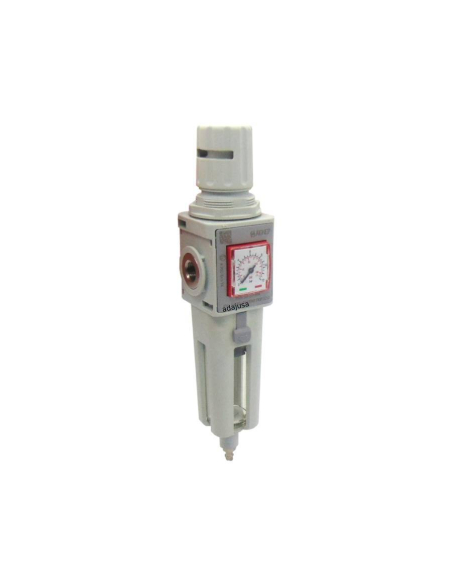

Pneumatic filter-regulator 3/4 0-8 bar semi-automatic drain size 3 FRL EVO series - Aignep

3/4" filter unit, 3/4" maintenance unit for pneumatic applications, semi-automatic drain, compact size (T3). Fixing by means of side holes. Knob with padlock lock.

The main features of this filter unit include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and a coalescing filter element. These filter units are manufactured free of silicones.

Compact pressure gauge inserted on the regulator body. Reduced size and weight, meeting the current demand for miniaturization and performance. Made of technopolymer and nickel-plated brass with excellent corrosion resistance. The purge type is semi-automatic, it discharges when the pressure in the filter approaches zero.

The main application of this series of filter groups is pneumatic automation, compressed air circuits and installations and compressors.

Characteristics :

• Manufacturer: Aignep
• Manufacturer reference: Y030307231000
• Thread Size: 3/4
• Adjustment range: 0 to 8 bar
• Filtration grade: 20 μm (*)
• Maximum inlet pressure: 13 bar .
• Manual condensation drain and automatic drain when pressure is removed.
• Built-in overpressure purge valve.
• Flow rate at 6 bar (∆P 1 bar ): 5800 Nl/min
• Pressure gauge: Included
• Mounting screws: M6x15
• Cup capacity (condensation) (cm3): 151
• Mounting position: Vertical
• Working temperature: -10 to +50º C
• Mounting accessories: not included

(*) On request it is possible to supply groups with a filtration degree of 5 μm

(**)Other regulation ranges on request:

• 0 to 2 bar
• 0 to 4 bar

For other sizes or references: consult.





Professional use material, install in compliance with the regulations in force at the place of installation .

For more information you can download the technical sheet by clicking on the "Attached files" tab.
