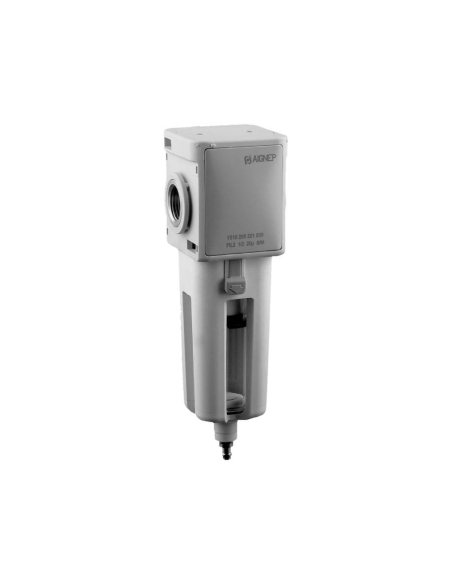

Filter 3/4 20 microns semi-automatic purge size 3 EVO series - Aignep

€56.11 Tax included

€46.37 tax excl.

Y010307201000

3/4 filter, with a filtration degree of 20μm and semi-automatic discharge, size 3, for retention solid or liquid impurities from the air compressor. These filter vessels are made of technopolymer and with metal finishes. Made in Italy.

Series: FRL Evo
Reference: Y010307201000

Pneumatic symbol filter Adajusa
Aignep logo

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


3/4 filter vessel with a filtration grade of 20μm to retain solid or liquid impurities from the air compressor. Compact size (T3). The purge type is semi-automatic, it discharges when the pressure in the filter approaches zero.

 Characteristics:

  • Manufacturer: Aignep
  • Manufacturer reference: Y010307201000
  • Threaded drive: 3/4"
  • Group size: size 3.
  • Filtered grade: 20 μm
  • Maximum inlet pressure: 13 bar
  • Flow rate at 6.3 bar (0.63 MPa; 91 psi) ∆P 1 bar (0.1 MPa; 14 psi) (Nl/min): 7900
  • Fluid: Compressed air or other inert gases
  • Cup capacity (condensation) (cm3): 151
  • Mounting position: Vertical.
  • Working temperature: -10 to +50ºC.

For other sizes or references: consult.

Dimensions of the Aignep Adajusa EVO series filter

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Filter-regulator 1/4 T1 Syntesi - Metal work - ADAJUSA
Syntesi regulator filter

Pneumatic filter-regulator 1/2 0-2 bar semi-automatic drain Syntesi series - Metal Work

Metal Work
5624B104
€61.46 (€50.79 tax excl.)
Filter with 1/2 pneumatic pressure regulator, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) and regulation range 0-2 kg/cm2, filtration degree of 5 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...

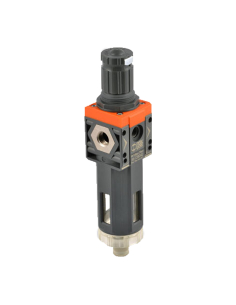

Filter-regulator 1/2 T2 Syntesi - Metal work - ADAJUSA
