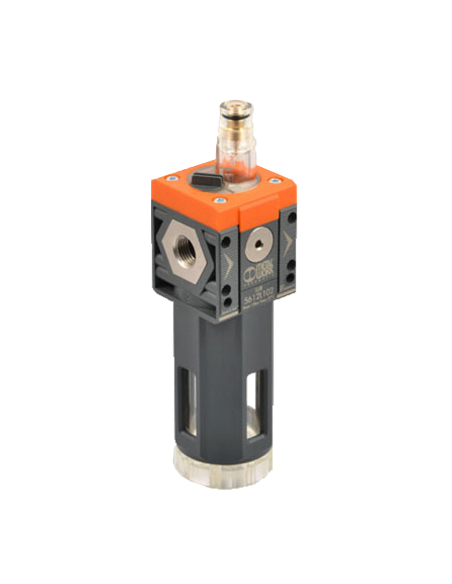

Lubricator 1/2 technopolymer
Lubricator 1/2 technopolymer

Lubricator 1/2 technopolymer Syntesi - Metal Work

€49.16 Tax included

€40.63 tax excl.

5624L104

1/2 pneumatic lubricating cup, in technopolymer. Manufacturer Metal Work.

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


1/2" size 2 pneumatic lubricating vessel for coupled to filtration group or independent use. The lubricating vessel is made of high strength technopolymer.

  • - Manufacturer: Metal Work
  • - Manufacturer's reference: 5624L104.
  • - Thread size: 1/2".
  • - Group size: size 2.
  • - Maximum inlet pressure: 13 bar.
  • - Vessel capacity: 130 cm3
  • - Flow rate at 6 bar (Δ P1bar): 6100 Nl/min.
  • - Wall fixing screws: M5.
  • - Mounting position: Vertical.
  • - Working temperature: -10 to +50oC.

For other sizes or references: consult.

Dimensiones lubricador serie syntesi

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Filter + Lubricator T2 RMSA Syntesi - Metal Work - ADAJUSA
FR + LUB Syntesi

Pneumatic filter group 1/2 regulation 0-12 bar semi-automatic purge Syntesi series -...

Metal Work
5624B26L104
€111.72 (€92.33 tax excl.)
1/2" filter group, 1/2" maintenance unit for pneumatic applications, purge semi-automatic, compact size (SY2) in 2 modules (FR+L) and regulation range 0-12 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: Synthesis Reference: 5624B26L104...
Filter-regulator 1/2 technopolymer
Filter groups of 1/2 FR-L

Pneumatic filter-regulator 1/2 0-12 bar semi-automatic drain Syntesi series - Metal Work

Metal Work
5624B264
€61.48 (€50.81 tax excl.)
Filter with 1/2 pneumatic pressure regulator, 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing. Series:...
Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€5.71 (€4.72 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...
Pressure regulator 1/4 0-12 bar technopolymer - Metal Work
Filter groups of 1/2 FR-L

Regulator pressure 1/2 0-12 bar size 2 technopolymer Syntesi - Metal Work

Metal Work
5624R164
€45.45 (€37.56 tax excl.)
Pressure regulator of 1/2 regulation 0-12 Kgrs, body in technopolymer extreme reliability. It allows stability of the output pressure to the predetermined pressure. Possibility of fixing by means of side drills. Padlock locking system. Syntesi Group. Manometer not included (can be ordered separately)Reference: 5624R164 Representative image for...
Filter 1/2 5 RMSA Size 2 Syntesi Metal Work - ADAJUSA
Filter groups of 1/2 FR-L

Filter 1/2 5 microns semi-automatic drain size 2 Syntesi series - Metal Work

Metal Work
5624F104
€39.88 (€32.96 tax excl.)
1/2 filter, with a filtration degree of 5μm and semi-automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5624F104Representative image for illustrative...

16 other products in the same category:

Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 4 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G4SOP
€16.01 (€13.23 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 4 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel needle....
Pneumatic filtering group 1/4 FRL EVO Series Aignep | ADAJUSA | price Pneumatic filtering group 1/4 FRL EVO Series Aignep | ADAJUSA | price 2
Filter groups of 1/2 FR-L

Pneumatic filtering group 1/2 regulation 0-12 bar semi-automatic purge size 2 FRL EVO...

Aignep
Y100205241100
€105.90 (€87.52 tax excl.)
Filtering group of 1/2, maintenance unit of 1/2 for pneumatic applications, semi-automatic purge, compact size (T2) in 2 modules (FR+L), and regulation range 0-12 bar, compact pressure gauge. These filtering groups are manufactured in technopolymer and with metallic terminations. Made in Italy.Series: FRL EvoReference: Y100205241100 Representative...

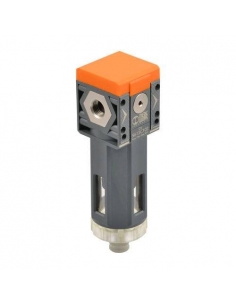

Filter 1/2 20 RMSA Size 2 Syntesi Metal Work - ADAJUSA
Filter groups of 1/2 FR-L

Filter 1/2 20 microns semi-automatic drain size 2 Syntesi series - Metal Work

Metal Work
5624F204
€39.86 (€32.94 tax excl.)
1/2 filter, with a filtration degree of 20μm and semi-automatic discharge, size 2, for retention of solid or liquid impurities from the air compressor. These filter cups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: SynthesisReference: 5624F204Representative image for...

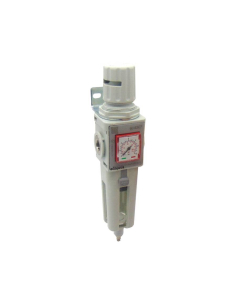

Pneumatic filter regulator 1/2 complete semi-automatic purge EVO series - Aignep | ADAJUSA | price Pneumatic filter regulator 1/2 complete semi-automatic purge EVO series - Aignep | ADAJUSA | price 2
  • Pack
Filter groups of 1/2 FR-L

Pneumatic filter-regulator 1/2 0-8 bar complete semi-automatic purge size 2 FRL EVO...

Aignep
PK-Y030205231000
€64.00 (€52.89 tax excl.)
Pneumatic pressure filter-regulator with pressure gauge 1/2, maintenance unit 1/2 for pneumatic applications, semi-automatic purge, compact size (T2) and regulation range 0-8 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy. Series: FRL Evo Reference: PK-Y030205231000...
Regulator pressure 1/2 0-8 bar complete Aignep FRL Evo series : ADAJUSA : price Regulator pressure 1/2 0-8 bar complete Aignep FRL Evo series : ADAJUSA : price 2
  • Pack
Filter groups of 1/2 FR-L

Regulator pressure with pressure gauge and lockable 1/2 0-8 bar complete size 2 FRL EVO...

Aignep
PK-Y020205030000
€47.99 (€39.66 tax excl.)
Regulator with integrated 1/2 fullpressure gauge , with regulation between 0-8 bar, size 2, technopolymer body and metal endings, extreme reliability. Allows stability of the outlet pressure at the preset pressure. Possibility of fixing by means of lateral holes. Padlocking system. Made in Italy. Series: FRL Evo Reference: PK-Y020205030000...
Metal filter group (Filter + Lubricator) Metal Work - ADAJUSA
Filter groups 1/2

Pneumatic filter group 1/2 regulation 0-12 bar automatic drain New Deal series - Metal...

Metal Work
1426058
€187.77 (€155.18 tax excl.)
1/2 filter group, 1/2 maintenance unit for pneumatic applications, automatic drain, compact size in 2 modules (FR+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.Series: New DealReference: 1426058 Representative image for...
Pneumatic filter regulator 1/2 automatic purge EVO series - Aignep | ADAJUSA | price
Filter groups of 1/2 FR-L

Pneumatic filter-regulator 1/2 0-8 bar automatic purge size 2 FRL EVO series - Aignep

Aignep
Y030205232000
€86.91 (€71.83 tax excl.)
Filter with pneumatic pressure regulator 1/2, maintenance unit 1/2 for pneumatic applications, automatic purge, compact size (T2) and regulation range 0-8 bar, filtration degree of 20 μm. These filtering groups are manufactured in technopolymer and with metal endings. Made in Italy.Series: FRL Evo Reference: Y030205232000 Representative image for...
Valve + Filter + Lubricator T2 Syntesi - Metal Work - ADAJUSA
Filter groups of 1/2 FR-L

Filter group 1/2 with shut-off valve regulation 0-12 bar semi-automatic drain Syntesi...

Metal Work
5624V10B26L4
€164.28 (€135.77 tax excl.)
1/2 filter group with manual shut-off valve , 1/2 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2. Equipped with manual cut-off valve at the inlet. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European...

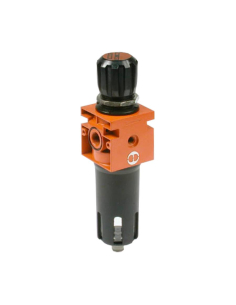

Filter-regulator 1/2 metallic New Deal - Metal Work ADAJUSA
Filter groups of 1/2 FR-L

Filter-regulator 1/2 metal 0-12 bar automatic drain New Deal - Metal Work

Metal Work
1425058
€136.58 (€112.88 tax excl.)
Filter with 1/2 pneumatic pressure regulator, 1/2 maintenance unit for pneumatic applications, automatic drain, regulation 0-12 kg/cm2, filtration degree of 20 μm. These filter groups are made of aluminum with excellent resistance to corrosion. European manufacturing. Series: New Deal Reference: 1425058 Representative image for illustrative purposes,...
Filter + Regulator + Lubricator New Deal - Metal Work - ADAJUSA
Filter groups 1/2

Pneumatic filter group 1/2 regulation 0-12 bar automatic drain New Deal series - Metal...

Metal Work
1424414
€161.41 (€133.40 tax excl.)
1/2 filter group, 1/2 maintenance unit for pneumatic applications, automatic drain, in 3 modules (F+R+L) and regulation range 0-12 kg/cm2. Filtering unit with 20 μm filter. These groups are made of aluminum and plastic tanks with metal protection. European made material.Series: New DealReference: 1424414 Representative image for illustrative...
Filter + Lubricator T2 RMSA Syntesi - Metal Work - ADAJUSA
FR + LUB Syntesi

Pneumatic filter group 1/2 regulation 0-12 bar semi-automatic purge Syntesi series -...

Metal Work
5624B26L104
€111.72 (€92.33 tax excl.)
1/2" filter group, 1/2" maintenance unit for pneumatic applications, purge semi-automatic, compact size (SY2) in 2 modules (FR+L) and regulation range 0-12 kg/cm2. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European manufacturing.Series: Synthesis Reference: 5624B26L104...

Customers who bought this product also bought:

Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€5.71 (€4.72 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...

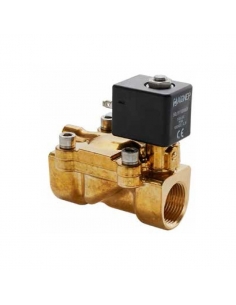

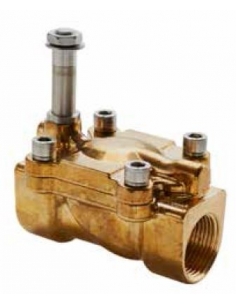

Solenoid valve fluids 3/4 2/2 closed 230VAC indirect drive - adajusa.es Solenoid valve fluids 3/4 2/2 closed 230VAC indirect drive - adajusa.es 2
