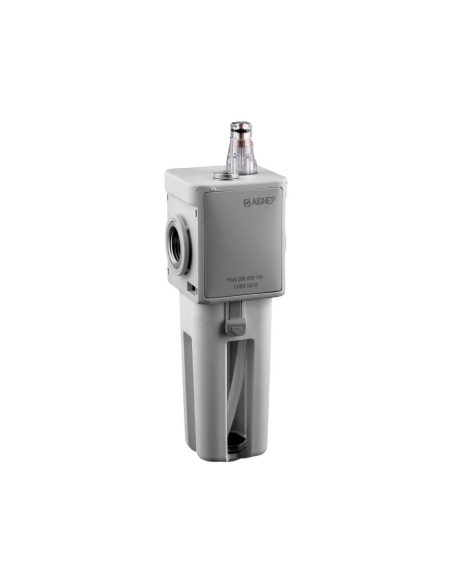

3/4 Automatic Lubricator Size 3 Technopolymer FRL EVO Series - Aignep

3/4" pneumatic lubricating cup, to be coupled to a filtering unit or for independent use. The lubricating cup is made of high-resistance technopolymer.

The oil filling method is by depression, the filling consists of the automatic filling of oil in the cup. The system is activated by the action of a button and the oil collected from a tank located even at a lower level than the lubricator flows into the cup thanks to a G 1/8 thread located at the bottom.





The amount of oil can be measured accurately as the descent can be seen through the transparent glass.

The main application of this series of filter groups is pneumatic automation, compressed air circuits and installations and compressors.

Characteristics:

• Manufacturer: Aignep
• Manufacturer reference: Y040307000200
• Thread Size: 3/4".
• Group size: size 3.
• Maximum inlet pressure: 13 bar .
• Glass capacity: 151 cm3
• Flow rate at 6 bar (∆P 1 bar ): 11700 Nl/min
• Mounting screws: M6x15
• Mounting position: Vertical.
• Working temperature: -10 to +50ºC.

• Recommended oil: CLASS ISO 22 ISO 3448 STANDARD
• Mounting accessories: not included

For other sizes or references: consult.

Professional use material, install in compliance with the regulations in force at the installation site.

For further information you can download the technical sheet by clicking on the "Attached Files" tab.
