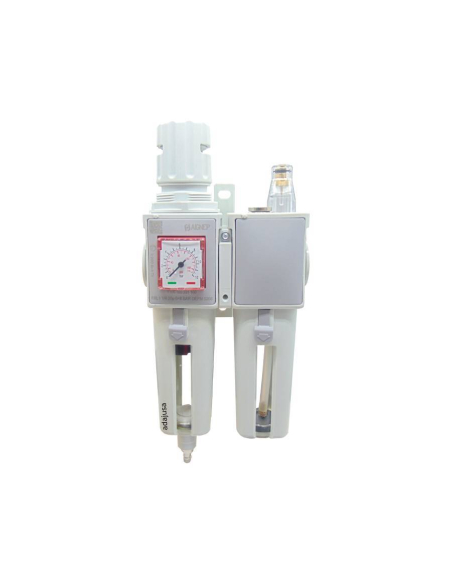

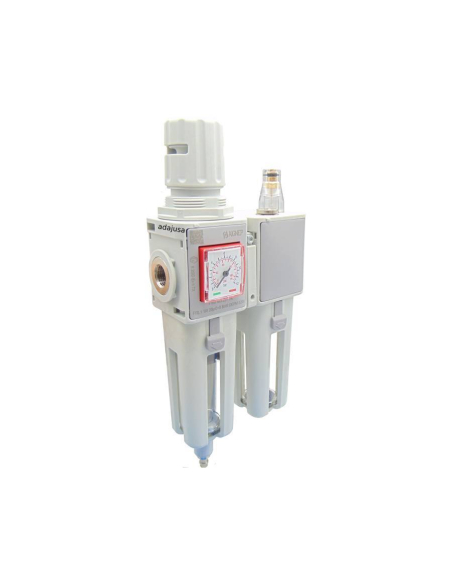

3/4" filter unit, 3/4" maintenance unit for pneumatic applications, automatic drain, compact size (T3), in 2 modules (FR+L), European manufacture. Fixing by means of side holes. Knob with padlock lock.
The main features of this filter unit include simplified modularity, precise and reliable regulation, highly optimized flow rate, reduced weight and a coalescing filter element. These filter units are manufactured free of silicones.
Compact pressure gauge inserted on the regulator body. With its reduced size and weight, it meets the current demand for miniaturization and performance. Made of technopolymer and nickel-plated brass with excellent corrosion resistance. The type of drain is automatic, discharging the condensate when it reaches the maximum permitted level regardless of the operating pressure.
The main application of this series of filter groups is pneumatic automation, compressed air circuits and installations and compressors.
Filter group features:
- Manufacturer: Aignep
- Reference: Y100307232100
- Number of elements: 2 (FR+L)
- Fluid: Compressed air
- Thread Size: 3/4
- Filtration grade: 20 μm (*)
- Condensation drain: automatic
- Glass with external viewer
- Built-in overpressure relief valve
- Maximum pressure: 13 bar
- Regulation from 0-8 bar (**)
- Flow rate at 6 bar (ΔP1bar): 5200 Nl/min
- Pressure gauge: Included
- Glass capacity: 151 cm3
- Mounting screws: M6x15
- Mounting Form: Vertical
- Working temperature: -10ºC to +50ºC
- Recommended oil for the lubricating cup: ISO VG 22A CLASS ISO 3448 STANDARD
- Reference standard: PED 2014/68/EU
- Mounting accessories: not included
(*) On request it is possible to supply groups with a filtration degree of 5 μm(**)Other regulation ranges on request:
For other sizes or references: consult.
Professional use material, install in compliance with the regulations in force at the installation site.
For further information you can download the technical sheet by clicking on the "Attached Files" tab.
