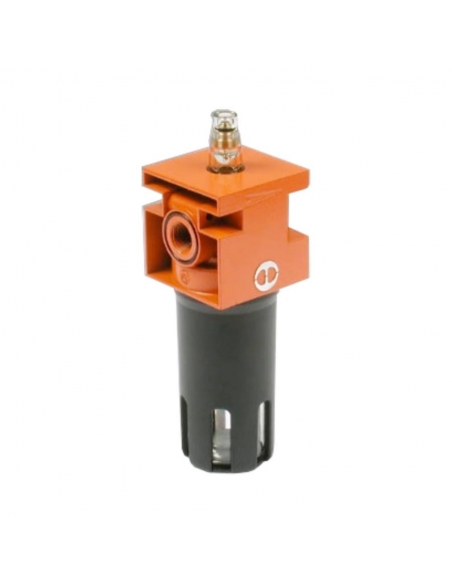

3/4 metallic lubricator
3/4 metallic lubricator

Lubricator 3/4 metallic New deal - Metal Work

€136.86 Tax included

113.11 tax excl.

1523001

Metal  3/4" pneumatic lubricator cup. New Deal Group

Reference: 1523001

new deal lubricator scheme

metal work logo


Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Metal 3/4" pneumatic lubricator, with metal body.

Characteristic:

  • Manufacturer: Metal Work
  • Reference: 1523001
  • Micrometric regulation of lubrication.
  • 360° oil level display
  • Threaded drive: 3/4"
  • Lubrication Type: Fog
  • Cup capacity: 380 cm3
  • Maximum inlet pressure: 18 bar
  • Flow rate at 6 bar (0.6 MPa ÷ 87 psi) ∆P 0.5 bar (0.05 MPa ÷ 7 psi): 12800 Nl/min
  • Flow rate at 6 bar (0.6 MPa ÷ 87 psi) ∆P 1 bar (0.1 MPa ÷ 14 psi) 16000 Nl/min
  • max temperature at 1MPa; bar ; 145psi: 50ºC
  • Wall fixing screws: M6 x 75
  • Mounting position: upright
  • Fluid: filtered air

For other references or sizes consult.

dimensiones lubricador neumatico

Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€5.71 (€4.72 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...

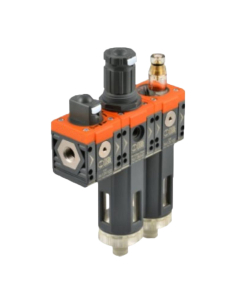

Valve + Filter + Lubricator T2 Syntesi - Metal Work - ADAJUSA
V3V + FR + LUB Syntesi

Filter group 3/4 with shut-off valve regulation 0-12 bar semi-automatic drain Syntesi...

Metal Work
5625V10B26L5
€181.56 (€150.05 tax excl.)
3/4 filter group with manual shut-off valve , 3/4 maintenance unit for pneumatic applications, semi-automatic drain, compact size (SY2) and regulation range 0-12 kg/cm2. Equipped with manual cut-off valve at the inlet. These filter groups are made of technopolymer and nickel-plated brass with excellent resistance to corrosion. European...

16 other products in the same category:

Pneumatic filter 3/4 20 EVO series automatic drain | Aignep | ADAJUSA | price
3/4 FR-L filtering groups

Filter 3/4 20 microns automatic drain size 3 FRL EVO series - Aignep

Aignep
Y010307202000
€81.84 (€67.64 tax excl.)
3/4 filter, with a filtration degree of 20μm and automatic discharge, size 3, for retention solid or liquid impurities from the air compressor. These filter vessels are made of technopolymer and with metal finishes. Made in Italy.Series: FRL EvoReference: Y010307202000 Representative image for illustrative purposes, the item supplied will correspond to...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge with glycerin 0 - 10 bar for 63mm panel with stand - Metal Work

Metal Work
PK-MAN6320G4G10SOP
€16.01 (€13.23 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 10 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...
Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA Pressure gauge for 63mm panel with stand - Metal Work - ADAJUSA 2
  • Pack
Gauges and measurement elements

Pressure gauge for panel 63mm 1/4 0-12 bar with stand - Metal Work

Metal Work
PK-MAN6320G4G12SOP
€16.01 (€13.23 tax excl.)
Pressure gauge diameter 63mm with stainless steel case filled with glycerin, pressure indication between 0 and 12 bar. Pressure gauge to control the pressure of installations, systems or machines. Stainless steel case with rear connection with G 1/4" thread. The internal mechanisms are made of copper alloy. With metal dial, graduation in bar. Steel...
Pressure gauge 50 1/8 0-12 Kgr plastic box
Gauges and measurement elements

Manometer 50 1/8 0-12 bar back plastic box - Metal Work

Metal Work
MWMP5318012
€5.71 (€4.72 tax excl.)
Pressure gauge Ø50 with plastic case. Pressure gauge to control the pressure of the machine to be used. Black plastic case and rear connection with G thread 1/8". The internal mechanisms are made of brass and bronze. With metal dial, graduation in bar and psi. Steel needle. Reference: Z33MP5318012 Representative image for illustrative purposes, the...
Pneumatic filter group 3/4 FRL EVO Series Aignep | ADAJUSA | price Pneumatic filter group 3/4 FRL EVO Series Aignep | ADAJUSA | price 2
3/4 FR-L filtering groups

Pneumatic filtering unit 3/4 regulation 0-8 bar automatic drain size 3 FRL EVO series -...

Aignep
Y100307232100
€182.30 (€150.66 tax excl.)
3/4" filter unit, 3/4" maintenance unit for pneumatic applications, automatic drain, compact size (T3) in 2 modules (FR+L), and regulation range 0-8 bar , compact pressure gauge. These filter units are made of technopolymer and with metal finishes. Made in Italy.Series: FRL EvoReference: Y100307232100 Representative image for illustrative purposes,...
Pressure Regulator 3/4 0-8 bar Aignep FRL Evo series | ADAJUSA | price
3/4 FR-L filtering groups

Pressure Regulator with pressure gauge and lockable 3/4 0-8 bar size 3 FRL EVO series -...

Aignep
Y020307030000
€67.83 (€56.06 tax excl.)
3/4" pressure Regulator with integrated pressure gauge, range 0-8 bar , size 3, technopolymer body and metal finishes . Allows output pressure stability at the preset pressure . Possibility of fixing by means of side drills. Padlock locking system. Made in Italy.Series: FRL EvoReference: Y020307030000 Representative image for illustrative purposes,...
Pneumatic filter group 3/4 FRL EVO Series Aignep | ADAJUSA | price Pneumatic filter group 3/4 FRL EVO Series Aignep | ADAJUSA | price 2
3/4 FR-L filtering groups

Pneumatic filtering unit 3/4 regulation 0-8 bar semi-automatic purge size 3 FRL EVO...

Aignep
Y100307231100
€156.57 (€129.40 tax excl.)
3/4" filter unit, 3/4" maintenance unit for pneumatic applications, semi-automatic drain, compact size (T3) in 2 modules (FR+L), and regulation range 0-8 bar , compact pressure gauge. These filter units are made of technopolymer and with metal finishes. Made in Italy.Series: FRL EvoReference: Y100307231100 Representative image for illustrative...
Pneumatic filter 3/4 20 EVO series semi-automatic purge | Aignep | ADAJUSA | price
3/4 FR-L filtering groups

Filter 3/4 20 microns semi-automatic purge size 3 EVO series - Aignep

Aignep
Y010307201000
€56.11 (€46.37 tax excl.)
3/4 filter, with a filtration degree of 20μm and semi-automatic discharge, size 3, for retention solid or liquid impurities from the air compressor. These filter vessels are made of technopolymer and with metal finishes. Made in Italy.Series: FRL EvoReference: Y010307201000 Representative image for illustrative purposes, the item supplied will correspond...

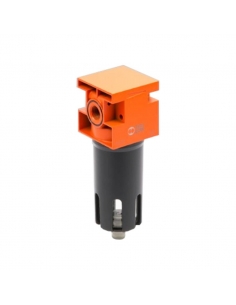

Filter 3/4 metallic New Deal - Metal Work - ADAJUSA
