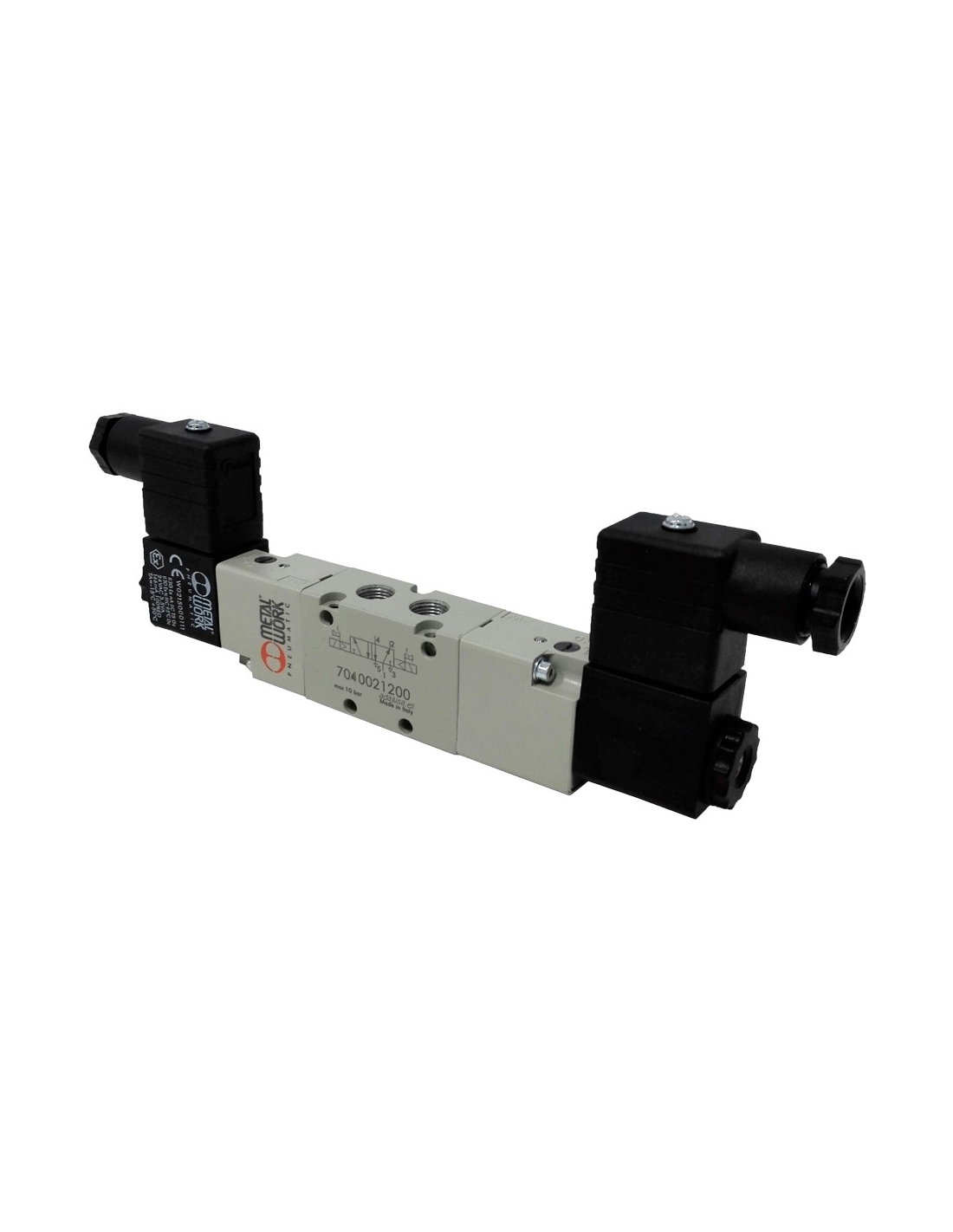

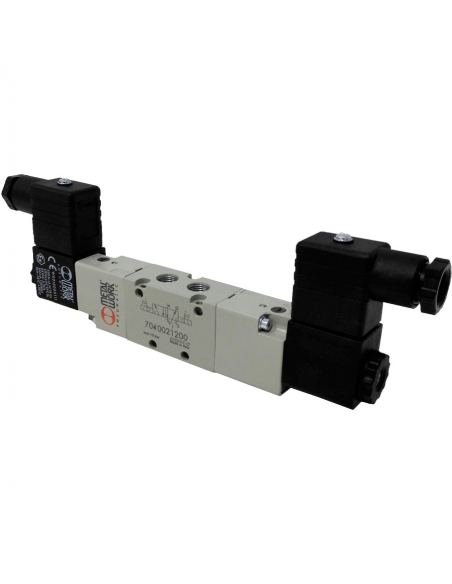

Solenoid valve 3/8 5 ways bistable 24Vdc 2 W Metal Work

Pneumatic solenoid valve of 3/8 5 ways 2 bistable positions. For general and industrial applications. The solenoid valve is normally closed (NC), that is, without tension in the coil, the inlet is not communicated with the outlet, that is, there is no air pressure at the outlet, the outlet is communicated with the exhaust of the valve. When the coil is put into tension, the solenoid valve is activated, air circulation occurs between the inlet and outlet of the solenoid valve.

Reference Metal Work.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm.

22mm plastic connector

The supply includes:

• 1- Solenoid valve 3/8 5/2 bistable
• 2- Coils 24Vdc 2 W
• 2 Connectors 22mm

characteristics:

• Operating pressure: 2.5 ÷10 bar
• Minimum assist pressure: 2.5 bar
• Voltage: 24Vdc
• Consumption: 2 W
• Operating temperature: -10 ÷ +60
• Nominal diameter: 13.3 mm
• Conductance C Nl/min · bar: 505.52
• B bar/bar critical ratio: 0.32
• Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
• Flow rate at 6 bar ΔP 1 bar Nl/min:2150
• Monostable TRA/TRR at 6 bar ms: 21/72
• Bistable TRA/TRR at 6 bar ms: 18/18
• Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
• Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
