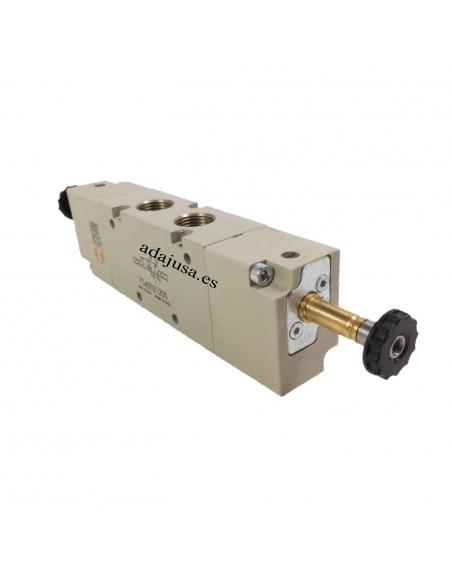

solenoid valve 3/8 5 ways bistable without coil - Metal Work - ADAJUSA
Solenoid valve coil 24Vdc 2,5 W T22 Ø8 - Metal Work - ADAJUSA
Solenoid valve connector size 22

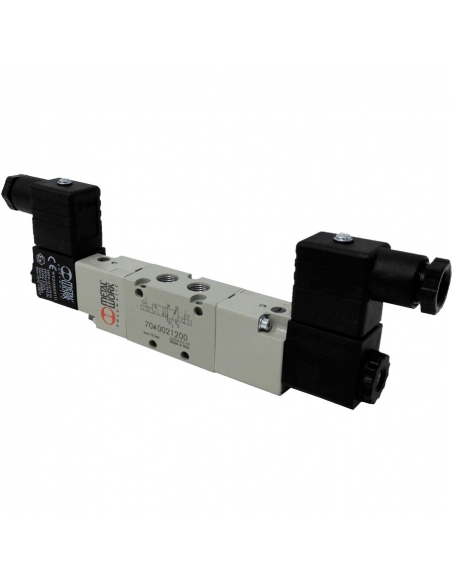

solenoid valve 3/8 5-way bistable difrencial with coils - Metal Work - ADAJUSA
solenoid valve 3/8 5 ways bistable without coil - Metal Work - ADAJUSA
Solenoid valve coil 24Vdc 2,5 W T22 Ø8 - Metal Work - ADAJUSA
Solenoid valve connector size 22
solenoid valve 3/8 5-way bistable difrencial with coils - Metal Work - ADAJUSA

Solenoid valve 3/8 5 ways differential bistable 24Vdc - Metal Work

€126.89 Tax included

€104.87 tax excl.

3/8" 5-way bianneumatic solenoid valve, for industrial applications and general use. With 24Vcc connectors and coils esquema neumático electroválvula nemática 5 vías

Logo-Metal-Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Pneumatic solenoid valve of 3/8 5 ways 2 bistable differential positions. For general and industrial applications.

The supply includes:

  • Solenoid valve 3/8 5/2 bistable differential
  • 2 Coils 24Vdc 2 W
  • 2 T22 connectors

Characteristics:


  • Provider: Metal Work
  • Solenoid valve reference: 7040021300 - SOV C5 SOD OO
  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 13.3 mm
  • Conductance C Nl/min · bar: 505.52
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
  • Flow rate at 6 bar ΔP 1 bar Nl/min:2150
  • Monostable TRA/TRR at 6 bar ms: 21/72
  • Bistable TRA/TRR at 6 bar ms: 18/18
  • Coil voltage: 24 Vdc
  • Power: 2 W
  • Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.
