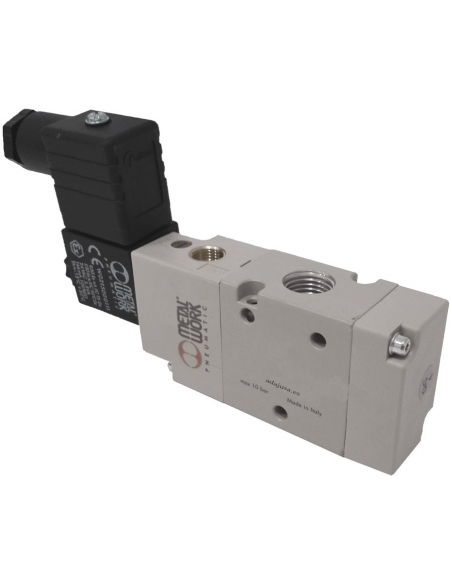

Solenoid valve 3/8 3-way assisted monostable NO with coil - Metal Work

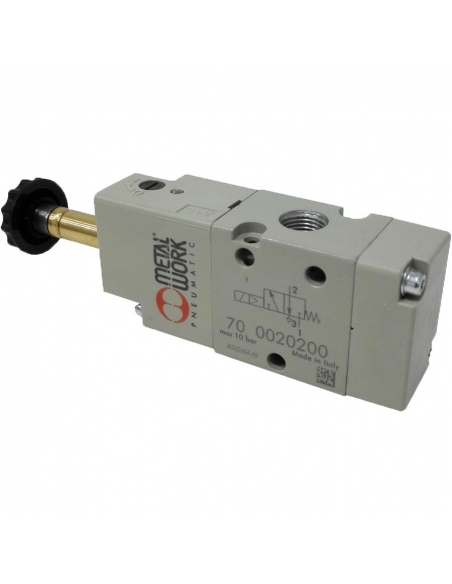

Solenoid valve 3/8 3 ways monostable NO - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22
Solenoid valve 3/8 3-way assisted monostable NO with coil - Metal Work
Solenoid valve 3/8 3 ways monostable NO - Metal Work - ADAJUSA
Solenoid valve coil 220Vac 3,5VA T22 Ø8 - Metal Work
Solenoid valve connector size 22

Solenoid valve 3/8 3 tracks assisted monostable NO 230 Vca - Metal Work

€92.48 Tax included

€76.43 tax excl.

Pneumatic solenoid valve of 3/8" 3/2 tracks assisted monestable, (NO), for industrial applications and general use. Connector with coil 230 Vac


Logo-Metal-Work


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.



Pneumatic solenoid valve of 3/8 3 ways 2 positions assisted monostable. For general and industrial applications. The solenoid valve is normally open (NO), without tension in the coil, the fluid or air will be passed through the solenoid valve, when the coil is put into tension the passage of the fluid or air will be interrupted.

The supply includes:
  • Electorvalve 3/8 3/2 assisted monostable NO
  • Coil 230Vac - 3,50 VA
  • T22 connector
Features:
  • Provider: Metal Work
  • Solenoid valve reference: 7040020600- SOV C3 SES NO
  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 13.3 mm
  • Conductance C Nl/min · bar: 505.52
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
  • Flow rate at 6 bar ΔP 1 bar Nl/min:2150
  • Monostable TRA/TRR at 6 bar ms: 21/72
  • Bistable TRA/TRR at 6 bar ms: 18/18
  • Coil voltage: 220 Vac - 240 Vac
  • Power: 3.50 VA
  • Voltage tolerances %: -10 ÷ +15


Material for professional use, install in compliance with the regulations in force at the place of installation.
