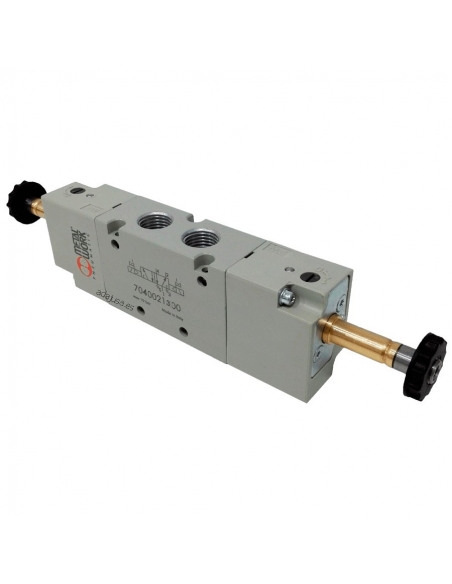

Solenoid valve 3/8 5 ways bistable differential - Metal Work - ADAJUSA

Solenoid valve 3/8 5 ways differential bistable without coil - Metal Work

Name: Solenoid valve 3/8 5 ways differential bistable without coil - Metal Work
Brand: Metal Work
SKU: 7040021300
Price: 112.68 EUR
Availability: BackOrder

€112.68 Tax included

€93.12 tax excl.

7040021300

3/8" 5-way bianneumatic solenoid valve, for industrial applications and general use. Supports coils of size 22mm with core of Ø8mm.

Reference: 7040021300
esquema neumático electroválvula nemática 5 vías

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Pneumatic solenoid valve of 3/8 5 ways 2 bistable differential positions. For general and industrial applications. The coil is not included in the supply.

Characteristics:

Provider: Metal Work
Reference: 7040021300 - SOV C5 SOD OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Valve tabs

70 series valve data sheet Metal Work

Download (1.31MB)

Questions

Be the first to ask a question about this product!

Question about the product

Name ^*

Email ^*

Question ^*

^* Required fields

I have read and agree to the conditions of use (read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

Solenoid valve coil 230Vac 3.5VA T22 diameter 8 - Metal Work

Metal Work

W0215000131

€8.86 (€7.32 tax excl.)

Coil for solenoid valve size 22mm, voltage 220-230VAC., with a consumption of 3.5VA, for cores of 8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core. Reference: W0215000131Representative image for illustrative purposes, the article supplied shall correspond to the specifications indicated.

Accessories for solenoid valves

Solenoid valve connector size 22 - Metal Work

Metal Work

W0970510011

€1.44 (€1.19 tax excl.)

Electrical connector for solenoid valve size 22mm., in black. Reference: W0970510011Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Coil for solenoid valve 24Vcc Metal Work W0215000101 Price adajusa

Accessories for solenoid valves

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

Metal Work

W0215000101

€8.86 (€7.32 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2 W, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000101 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

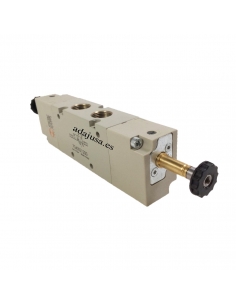

electrovalve 3/8 5-way bistable - Metal Work - ADAJUSA

electrovalve 3/8 5-way bistable - Metal Work - ADAJUSA 2

Solenoid valves 3/8

Solenoid valve 3/8 5 ways bistable without coil - Metal Work

Metal Work

7040021200

€112.68 (€93.12 tax excl.)

3/8" 5-way bile pneumatic solenoid valve, closed (NC), for industrial and general use applications. Supports coils of size 22mm with core of Ø8mm. Reference: 7040021200 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Solenoid valve 3/8 5 ways bistable- Mindman S.300 - ADAJUSA

Delivery in 3 days

Solenoid valves 3/8

Solenoid valve 3/8 5-way bistable 24Vdc - Mindman S.300

Mindman

MVSE3004E22

€99.41 (€82.16 tax excl.)

3/8" 5-way bilg valve,operating voltage of 24Vdc. Reference: 281MVSE3004E22Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

solenoid valve 3/8 5-way bistable difrencial with coils - Metal Work - ADAJUSA

solenoid valve 3/8 5-way bistable difrencial with coils - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5 ways bistable differential 230Vac - Metal Work

Metal Work

PK-385DB230

€133.27 (€110.14 tax excl.)

3/8" 5-way bianneumatic solenoid valve, for industrial applications and general use. With 230Vac connectors and coils Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

16 other products in the same category:

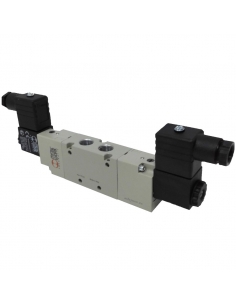

Solenoid valve 3/8 5/3 pressure centers 110 Vac - Metal Work - ADAJUSA

Solenoid valve 3/8 5/3 pressure centers 110 Vac - Metal Work - ADAJUSA 2

Pack

Solenoid valves 3/8

Solenoid valve 3/8 5/3 pressure centers 110 Vac - Metal Work

Metal Work

PK-3853CP110

€159.65 (€131.94 tax excl.)

3/8" 5-way, 3-position solenoid valves, pressure centers, metal body, with 110 Vac connectors and coils. For pneumatic applications for industrial or general use. Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Coil for solenoid valve 24VAC Metal Work W0215000011 Price adajusa

Accessories for solenoid valves

Solenoid valve coil 24Vac 5VA T22 diameter 8 - Metal Work

Metal Work

W0215000011

€8.86 (€7.32 tax excl.)

Coil for solenoid valve size 22mm, voltage 24Vca., with a consumption of 3.5VA, for cores of Ø8mm. Manufactured by Metal Work and valid for solenoid valves with 8mm actuator core.Reference: W0215000011 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

Electrical connector solenoid valve size 22 CON0100001 Aignep: ADAJUSA : price

Accessories for solenoid valves

Connector solenoid valve size 22 - Aignep

Aignep

CON0100001

€1.45 (€1.20 tax excl.)

Electrical connector for solenoid valve size 22mm, black color. Reference: CON0100001 Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

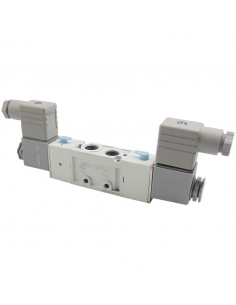

Solenoid valve 3/8 5 ways 3 positions closed centers 230Vac - Mindman S.300 - ADAJUSA
