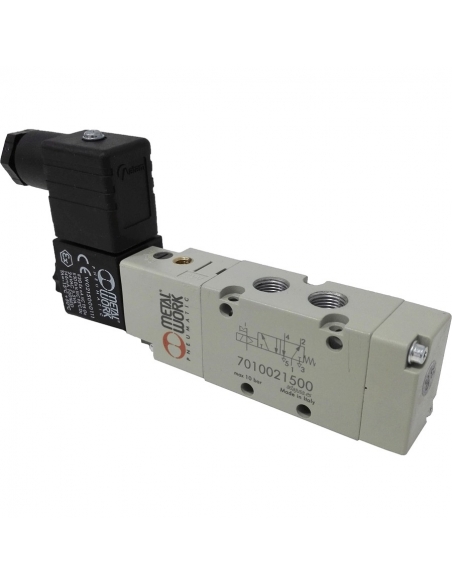

Solenoid valve 1/8 5 ways monostable assisted 24Vdc 2 W - Metal Work - ADAJUSA
Solenoid valve 1/8 5 ways monostable assisted 24Vdc 2 W - Metal Work - ADAJUSA

Solenoid valve 1/8 5 ways monostable assisted 24Vdc 2 W - Metal Work

€70.83 Tax included

€58.54 tax excl.

1/8" 5-way assisted solenoid valves, for pneumatic applications for industrial or general use.

Coil for solenoid valve size 22mm, voltage 24Vdc., with a consumption of 2.5W, for cores of Ø8mm.

22 mm connector
simbolo electroválvula neumática 5 vías asistida

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Solenoid valve 1/8 5 ways monostable assisted. By having an independent pressure inlet for the pilot (assisted) it can be used from 0 bars of pressure at the inlet.

The supply includes:

  • Solenoid valve 1/8 5 ways monostable assisted
  • Coil 24Vdc 2 W
  • Connector 22 mm

Characteristics:

  • Manufacturer: Metal Work
  • Reference: SOV25SES00 Code: 7010021500.
  • Operating pressure bar: Empty ÷ 1
  • Minimum assist pressure bar: 2.5
  • Operating temperature °C: -10 ÷ +60
  • Nominal diameter mm: 5
  • Conductance C Nl/min · bar: 121.43
  • B bar/bar critical ratio: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 550
  • Monostable TRA/TRR at 6 bar ms: 15/35
  • BISET TRA/TRR at 6 bar ms Voltage s coils: 20/20
  • Voltage: 24 Vdc
  • Power: 2 W
  • Voltage tolerances %: -10 ÷ +15

electrovalvula 1/8-5/2
Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
