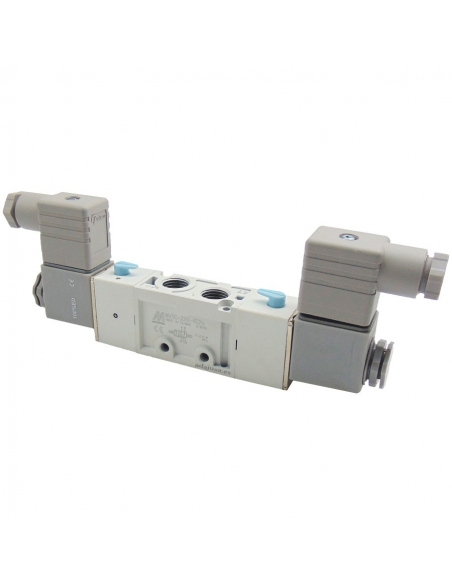

Solenoid valve 1/8 5/3 exhaust centers 110Vac - Mindman S.220

€105.96 Tax included

€87.57 tax excl.

Pneumatic solenoid valve of 1/8" 5 ways 3 positions, exhaust centers (open centers), metal body, with coils at 110Vac. For double effect cylinder control.

Reference: 281MVSC2204E2R6A3

Esquema neumático electroválvula 5 vías 3 posiciones centros en escape

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Pneumatic solenoid valve of 1/8-5/3, 5 ways 3 positions, exhaust centers (open centers), with coils at 110Vac, for the control of double effect cylinders.

The solenoid valve has 3 positions with 2 coils, if a coil is fed the cylinder advances, if both coils are left without tension, the cylinder will be without pneumatic pressure by any of its inputs, with which the cylinder stops exerting any force and if the other coil is fed, the cylinder is collected.

The supply of the solenoid valve includes:

  • Solenoid valve 1/8-5/3 centers in exhaust.
  • 2 Coils 110Vac.
  • 2 Connector 22mm.

Specifications:

  • Solenoid valve manufacturer: Mindman.
  • Reference: MVSC-220-4E2R 6A 1/8 110Vac.
  • Configuration: 5 ways, 3 positions centers in escape.
  • Thread type: G 1/8" (Threaded exhausts G 1/8").
  • Coil voltage: 110Vac.
  • Coil power: 3.5VA.
  • Fluid type: Pressurized air, with or without lubrication.
  • Solenoid valve working pressure: 2 to 8 bar.
  • Minimum working pressure: 2 bar.
  • maximum pressure: 10 bar.
  • Working temperature: -10ºC to 60ºC.
  • Effective surface: 18mm².
  • Flow: 799 Nl/min.
  • Manual drive: Yes.

Dimensiones electroválvulas 5 vías 3 posiciones mindman

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
