Limit Switch tyre piston NO 3/2 diameter M5 - Metal Work

Limit Switch tyre piston NO 3/2 diameter M5 - Metal Work

€17.80 Tax included

€14.71 tax excl.

Limit Switch pneumatic,fittings located on the side, for tube outer diameter of M5. The valve type of the limit switch is normally open (NO).

Reference: W3501000411



Logotipo Metal Work

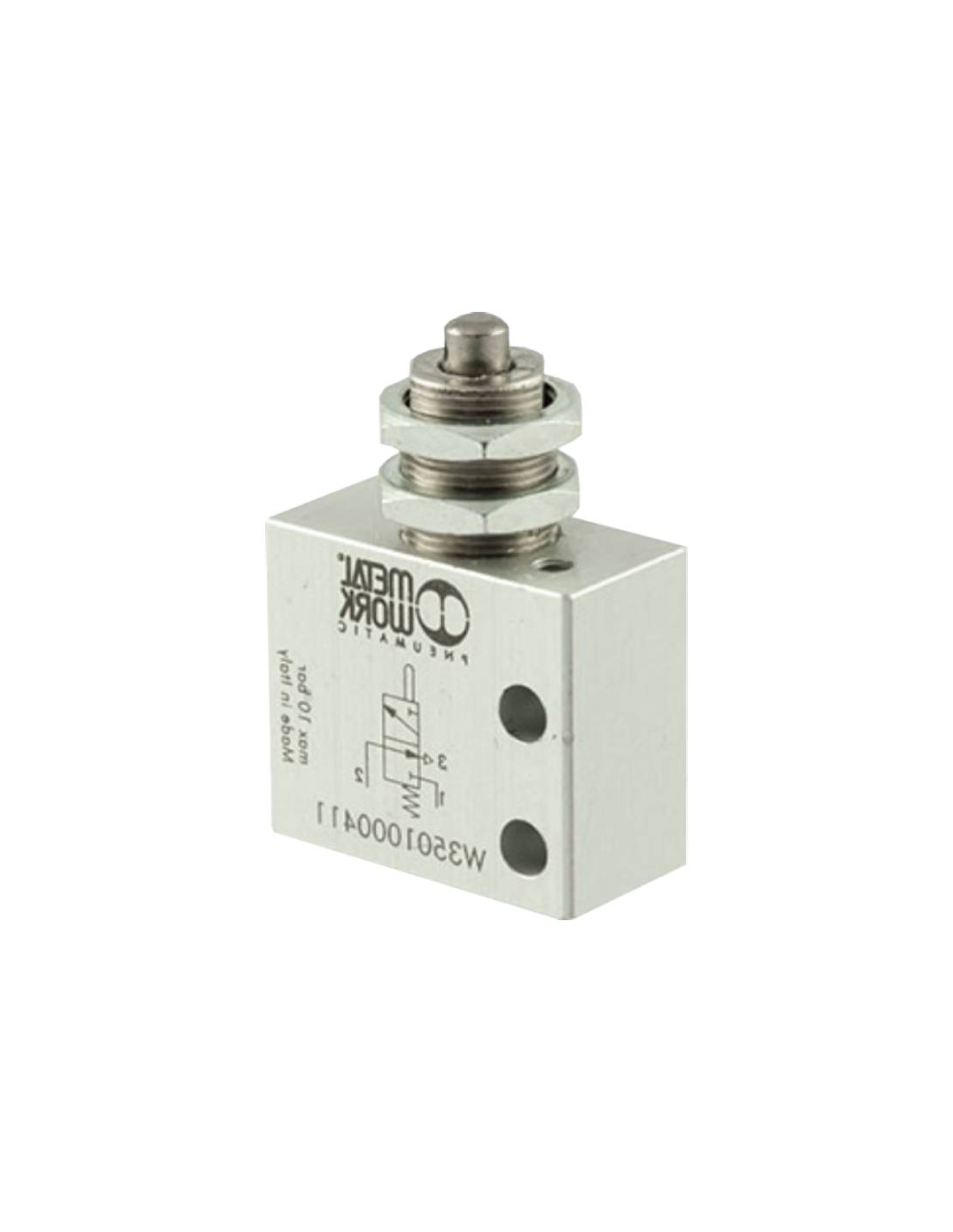

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!


limit switch pneumatic,with integrated quick-connect fittings for M5 outer diameter tube. The state of the valve of the limit switch at rest is normally open (NO), that is, without pressing there is the presence of air in the exit, the air can pass, when it is activated, the air stops passing and there is no pneumatic pressure at the outlet.

  • Manufacturer: Metal Work
  • Valve type: 3/2 Normally closed (NO).
  • Manufacturer reference: W3501001411 (VME1-14 NC M5)
  • Reduced drive force.
  • Signal speed and pressure.
  • Mechanical drive.
  • Material type: metallic.
  • Fittings: fast for tube diameter M5 coaxial connection.
  • Installation: in any position.
  • Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
  • Working pressure (bar): 0.5 ÷ 10
  • Working temperature (°C): -10° ÷ +60
  • Nominal diameter (mm) 2.5
  • Conductance C (Nl/min · bar): 16.5
  • Critical ratio b (bar/bar): 0.03
  • Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
  • Capacity at 6 bar ΔP 1 bar (Nl/min): 60
  • Strut drive force at 6 bar (N): 8
  • Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab
