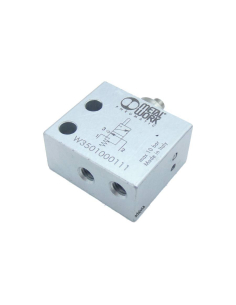

Limit Switch 3/2 NC side fittings diameter M5 - Metal Work

€18.63 Tax included

15.4 tax excl.

W3501001111

limit switch pneumatic with push button drive, fittings located on the side for outer diameter tube of M5. The valve type of the limit switch is normally closed (NC).

Reference: W3501001111

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


limit switch metal embolus drive tire, with integrated quick-connect fittings for M5 outer diameter tube. Resting state of the valve of the limit switch is normally closed (NC), that is, without pressing there is no presence of air in the exit, the air can not pass, when it is activated, it lets the air pass and there is pneumatic pressure at the outlet.

  • Manufacturer: Metal Work
  • Valve type: 3/2 Normally closed (NC).
  • Type of limit switch drive: metal front piston.
  • Manufacturer reference: W3501001111 (VME2-11 NC diameter M5)
  • Reduced drive force.
  • Signal speed and pressure.
  • Mechanical drive.
  • Material type: metallic.
  • Fittings: fast for tube diameter M5 side connection.
  • Installation: in any position.
  • Fluid: Compressed air filtered without lubrication; lubrication, if used, must be continuous.
  • Working pressure (bar): 0.5 ÷ 10
  • Working temperature (°C): -10° ÷ +60
  • Nominal diameter (mm) 2.5
  • Conductance C (Nl/min · bar): 16.5
  • Critical ratio b (bar/bar): 0.03
  • Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
  • Capacity at 6 bar ΔP 1 bar (Nl/min): 60
  • Strut drive force at 6 bar (N): 8
  • Lubricant recommended: ISO and UNI FD22

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

16 other products in the same category:

Limit switch pneumatic strut 3/2 NC rear fittings diameter 4 mm - Aignep | ADAJUSA | price
Pneumatic Limit switchs

Limit switch 3/2 NC pneumatic strut 3/2 NC rear fittings 4 mm diameter - Aignep

Aignep
02VG03NCY1
€16.84 (€13.92 tax excl.)
Limit switch pneumatic strut with 3 way and 2 positions, monostable, normally closed (NC) and fittings located at the rear for tube outer diameter of 4 mm. Prepared for mounting with emergency push button or similar. Series: 02VPart no.: 02VG03NCY1 Representative image for illustrative purposes, the item supplied will correspond to the specifications...

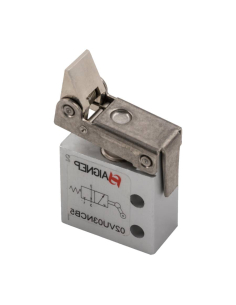

Limit switch 3/2 NC unidirectional cam pneumatic 3/2 NC monostable with side fittings diameter M5 - Aignep | ADAJUSA | pre
