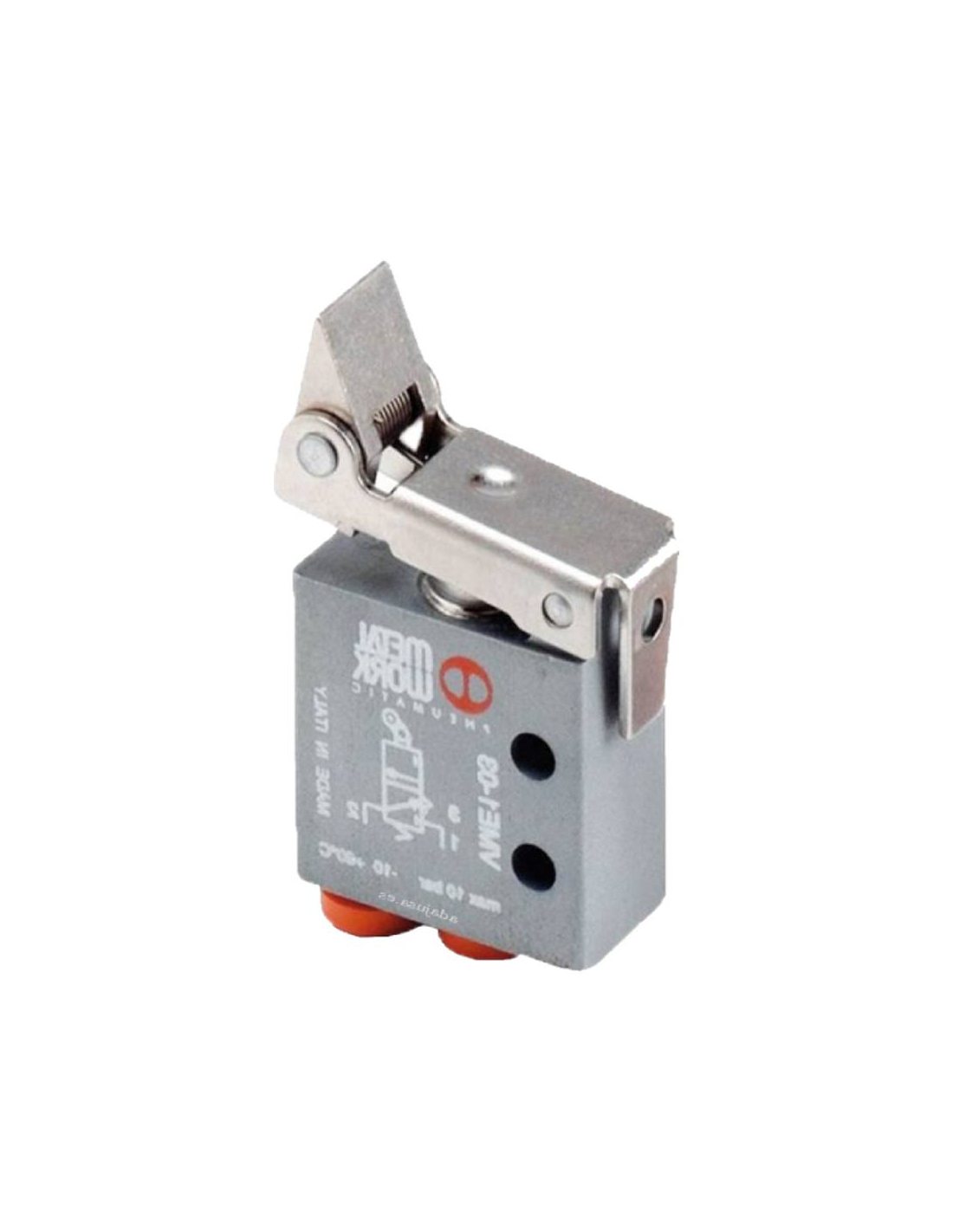

Pneumatic limit switch actuated by a unidirectional cam, with integrated quick-connect fittings for 4mm external diameter pipe. The state of the valve of the limit switchat rest is normally closed (NC), i.e. without pressing there is no air present at the outlet, air cannot pass, when actuated, it lets air pass and there is pneumatic pressure at the outlet
- Manufacturer Metal work
- Type of valve: 3/2 Normally closed (NC).
- Type of limit switch actuation: By means of a lever with a metal unidirectional cam.
- Manufacturer's reference: W3501001301 - VME1-03 NC Ø 4
- Type of material: metallic.
- Reduced actuation force.
- Signal speed and precision.
- Mechanical drive.
- Fittings: quick couplings for tube diameter 4mm axial connection.
- Installation: in any position.
- Fluid: filtered compressed air without lubrication; lubrication, if used, must be continuous.
- Working pressure (bar): 0.5 ÷ 10
- Working temperature (°C ): -10° ÷ +60
- Nominal diameter (mm) 2.5
- Conductance C (Nl/min - bar): 16.5
- Critical ratio b (bar/bar): 0.03
- Capacity at 6 bar ΔP 0.5 bar (Nl/min): 35
- Capacity at 6 bar ΔP 1 bar (Nl/min): 60
- Prop drive force at 6 bar (N): 8
- Recommended lubricant: ISO and UNI FD22
Professional use material, to be installed in compliance with the regulations in force at the place of installation.
For further information you can download the technical data sheet by clicking on the "Attachments" tab
