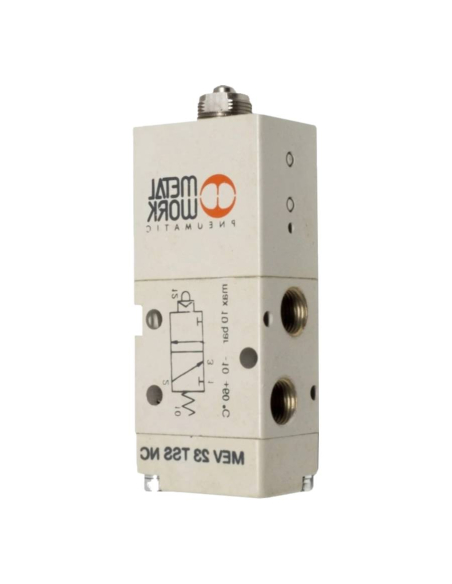

Limit Switch 1/8 3-way strut servo-pilot - Metal Work

Name: Limit Switch 1/8 3-way strut servo-pilot - Metal Work
Brand: Metal Work
SKU: 7001000200
Price: 47.916 EUR
Availability: InStock

€47.92 Tax included

€39.60 tax excl.

limit switch pneumatic drive with push-button drive, 1/8" 3-way mechanical drive. Sensitive strut drive.

Reference: 7001000200

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

limit switch 1/8 3-way single-stable tire. Front-operated and with all tracks functional and with 1/8" thread. The valve is 3-way monostable (spring return) with sensitive strut.

Specifications:

Manufacturer: Metal Work.
Reference: MEV 23 TSS NC
Code: 7001000200.
Fluid: Pressurized or vacuum air, with or without lubrication.
Valve Body: aluminum.
Sliding material: Nickel-plated aluminum.
Joints: NBR.
number of tracks: 3.
Size: 1/8".
Working pressure: Vacuum÷10 bar.
Temperature: -10÷60ºC.
Nominal diameter: 5mm.
Flow rate at 6bar ΔP 0.5bar: 400 Nl/min.
Flow at 6bar ΔP 1bar: 550 Nl/min.
Installation: in any position.

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

Mechanical valves sheet

Download (478.69KB)
