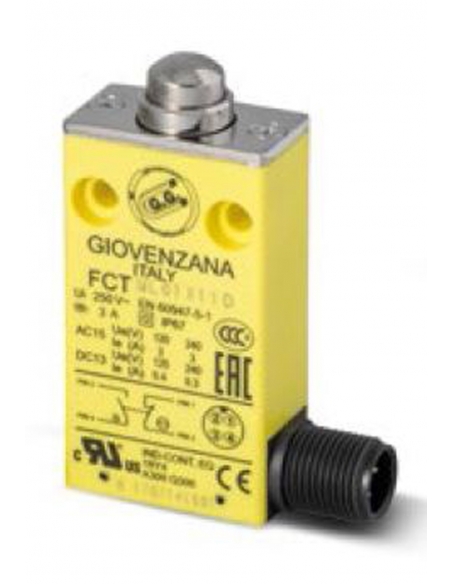

Limit Switch Short Piston series FCT with M12 Connector - Giovenzana

€24.04 Tax included

€19.87 tax excl.

Short piston electric stroke end, FCT series, pushbutton drive, manufactured in thermoplastic material, positive opening contacts.

Output via M12 side connector.

2 contacts available (select from the side menu), with 2 types of performance, slow or abrupt.

Esquema contactos finales de carrera FCT

Giovenzana

Model
  • Slow break 1NC/1NO
  • Sudden rupture 1NC/1NO

No queries yet, leave the first!
Privacy
Shipments
Returns


End of stroke, FCT series, front short piston drive. The FCT series of position switches is made of thermoplastic material, with M12 side output. Designed for industrial automation, elevator and lifting applications, and general use. The installation is very simple, ensuring extreme ease of assembly.

The end of the stroke is connected by a side-mounted M12 connector.

High degree of protection, IP67, designed to be used even in the most rigid environmental situations, these end-of-run has passed the IP67 immersion test, in accordance with EN60529.

Esquemas y salidas FCT Giovenzana

Technical details:

  • Manufacturer: Giovenzana.
  • Series: FCT2L01.
  • Number of contacts: 2.
  • Positive opening contact: NC contact.
  • Employment category: AC15/600.
  • Nominal thermal current (Ith): 10A.
  • Nominal insulation voltage: 500Vac.
  • Minimum permissible current: 5mA to 5Vdc.
  • Insulation resistance: 100M min. (DC500V).
  • Contact resistance: 25m max. (Initial).
  • Drive travel for positive opening: Various.
  • Maximum switching frequency: 2 cycles/sec.
  • Housing material: Polybutene terephthalate with UL approved glass fibers.
  • Actuator material: Various.
  • Working temperature: -25oC.. 70oC.
  • Mechanical durability: 10,000,000 cycles min.
  • Electrical durability: 150,000 min cycles.
  • Fixing: 2xM4.
  • Output: M12 side connector.
  • Standards: EN60947-5-1, UL508, EN5004-7, EN1088
  • Degree of protection: IP-67.

Dimensiones final de carrera FCT 01 Giovenzana


Diagrama de accionamiento final de carrera piston corto
