Miniature Level Boya NMH Horizontal Mount - Toscano

Miniature Level Boya NMH Horizontal Mount - Toscano

€59.41 Tax included

€49.10 tax excl.

Miniature level buoy for horizontal mounting for clean water tanks, very useful for small vessels. Threaded mounting


Part number: NMH

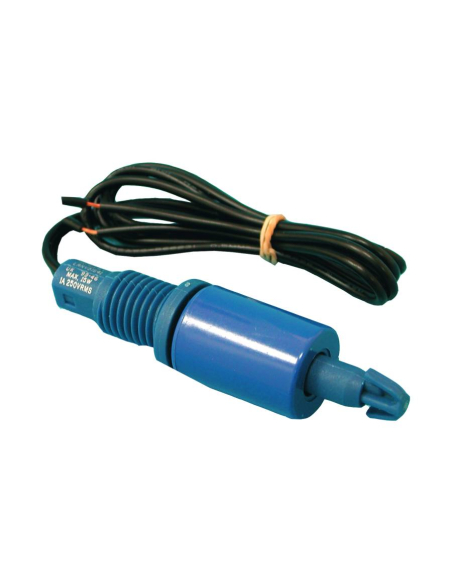

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated

No queries yet, leave the first!


Miniature level buoy, horizontal mounting for clean water tanks. It is used to signal in a punctual way the level of liquids, whether conductive or not, such as water, oil, fuels, chemical products, etc. in tanks, trays and containers.

Small size detector, very useful for small containers. It is installed through a drill to the tank at the desired point to be detected. When the liquid level reaches the height of the switch, the float changes position at a certain angle and the contact opens or closes the corresponding electrical circuit. When the liquid level decreases below the float, the signal returns to its initialized state


Technical characteristics:

  • Manufacturer Toscano
  • Part number: NMH
  • Product density: 0,85kg/l
  • Tank pressure: 4 bar
  • Cable output: 2 wires x 0.5 meters
  • Maximum contact voltage: 250Vac, 200Vdc
  • Contact function: NO or NC depending on float position
  • Maximum consumption: 15VA in AC, 15W in DC
  • Contact current: 0,3A (resistive load)
  • Working temperature: -30º...+80º C
  • Body and float material: Nylon
  • Mounting hole diameter: 16,5mm



Material for professional use, has to be installed by qualified personnel respecting the regulations in force at the place of installation.
