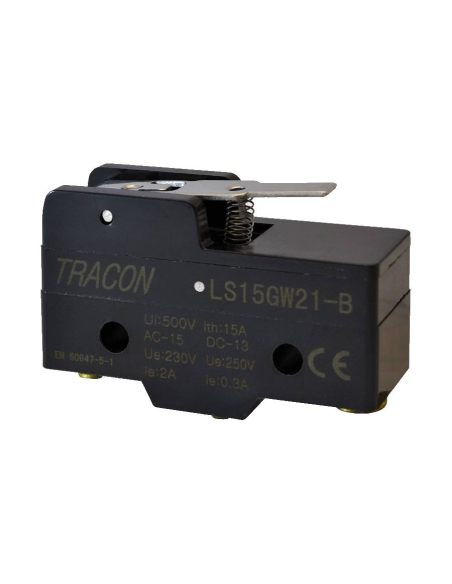

Short lever limit switch (microswitch microswitch) LS15 Series

€4.92 Tax included

4.07 tax excl.

LS15GW21-B

Short lever actuated limit switch (microswitch microswitch), 1 CO (NO/NC). High load capacity.


Part No.: LS15GW21-B

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Limit switch operated by short lever, 1 change-over contact (NO/NC). High load capacity. Lateral fixing by means of screws, electrical connection by means of threaded nuts. Possibility of adding protection cover (not included).



Operating travel (mm)



Technical Characteristics

  • Manufacturer/Supplier: TRACON
  • Part number: LS15GW21-B
  • Actuator type: Short lever
  • Rated thermal current: 15A
  • Rated current: 5A AC1 230V / 2A AC15 230V / 0.3A DC13 250V
  • Rated voltage of isolation: 500V
  • Electrical contact: 1 Switched (NO/NC)
  • Material: Plastic
  • Connection cable: 0.5 - 1.5mm2
  • Mechanical life: 1x106 cycles
  • Ambient operating temperature: -25oC to +55oC
  • Degree of protection: IP00
  • Standard: EN 60947-1, EN 60947-5-1




Dimensions:






Material for professional use, must be installed in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

You might also like

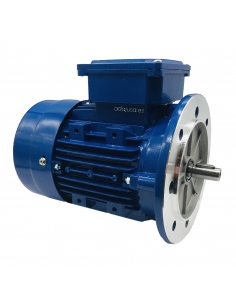

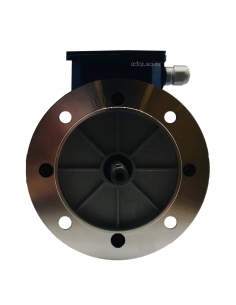

Electric Motor 0.12Kw 0.16 HP Flange B5 2-Pole Async | ADAJUSA Electric Motor 0.12Kw 0.16 HP Flange B5 2-Pole Async | ADAJUSA 2
Three-phase electric motors 3000 rpm flange B5 aluminum housing IE1, IE2, IE3

Three-phase motor 0.12Kw 0.16HP 230/400V 3000 rpm Flange B5

Generico-MOT
SS5622B54E1
€70.69 (€58.42 tax excl.)
Three-phase electric motor 0.12kW (0.16HP) 230/400Vac., 3000 rpm (2 Pole), Flange B5, aluminum housing. Manufactured under European IEC regulations. Reference: SS-561-2 B5 Voltage: 230/400Vac 50/60Hz Number of poles: 2 Revolutions: 3000 rpm Flange: B5 Shaft diameter: 9mm Flange diameter: 120mm Power: 0.12Kw - 0.16hp Size: 56 Energy efficiency:...
Straight Key Security Race End - Giovenzana
limit switch - position detectors - electric pedals - sensors

Straight Key Security Limit Switch - Giovenzana

Giovenzana Internacional B.V.
GISTNK02xxx
€25.41 (€21.00 tax excl.)
Safety limit switch with straight key interlock that can be inserted in 5 directions. Degree of protection IP-67. Possibility of 2-channel safety control. 2 contacts available (select from the side menu), with 2 types of actuation, slow or fast. Representative image for illustrative purposes, the item supplied will correspond to the specifications...

16 other products in the same category:

MFI.4 Giovenzana Series Micro Breaker - adajusa
limit switch - position detectors - electric pedals - sensors

MFI series long lever micro breaker.4

Giovenzana Internacional B.V.
GI-MFI.4
€2.95 (€2.44 tax excl.)
Micro long lever drive switch. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI.4 Representative image for...
View
Pushbutton microswitch MZS1308 piston with threaded head roller - Giovenzana
limit switch - position detectors - electric pedals - sensors

Pushbutton microswitch MZS1308 piston with threaded head roller - Giovenzana

Giovenzana Internacional B.V.
GI-MFI1308
€9.58 (€7.92 tax excl.)
Piston-operated microswitch with roller, threaded head, 1 changeover contact (NO/NC). High load capacity and sudden rupture. Manufactured under strict European regulations. Equipped with a type of shot that ensure a high degree of precision. Fast and reliable standalone switching suitable for use in industrial and general purpose applications....

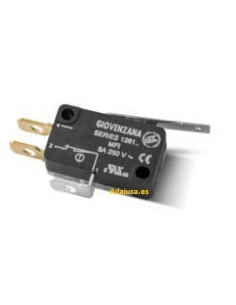

MFI.5 Giovenzana Series Micro Breaker - adajusa
limit switch - position detectors - electric pedals - sensors

MFI.5 series micro breaker lever

Giovenzana Internacional B.V.
GI-MFI.5
€2.95 (€2.44 tax excl.)
Micro lever drive switch. 1 switched contact (NA/NC). High load capacity and sudden breakage. Manufactured under strict European regulations. Equipped with self-cleaning contacts and a type of fire that ensure a high degree of precision. Fast and reliable switching independent of the drive speed. Reference: MFI.5 Representative image for illustrative...

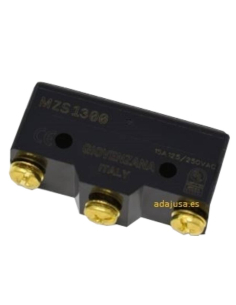

MZS1300 Giovenzana Microswitch - adajusa
