Magnetic sensor hall PNP 3-wire connector M8 ATEX - Metal Work

€43.03 Tax included

€35.56 tax excl.

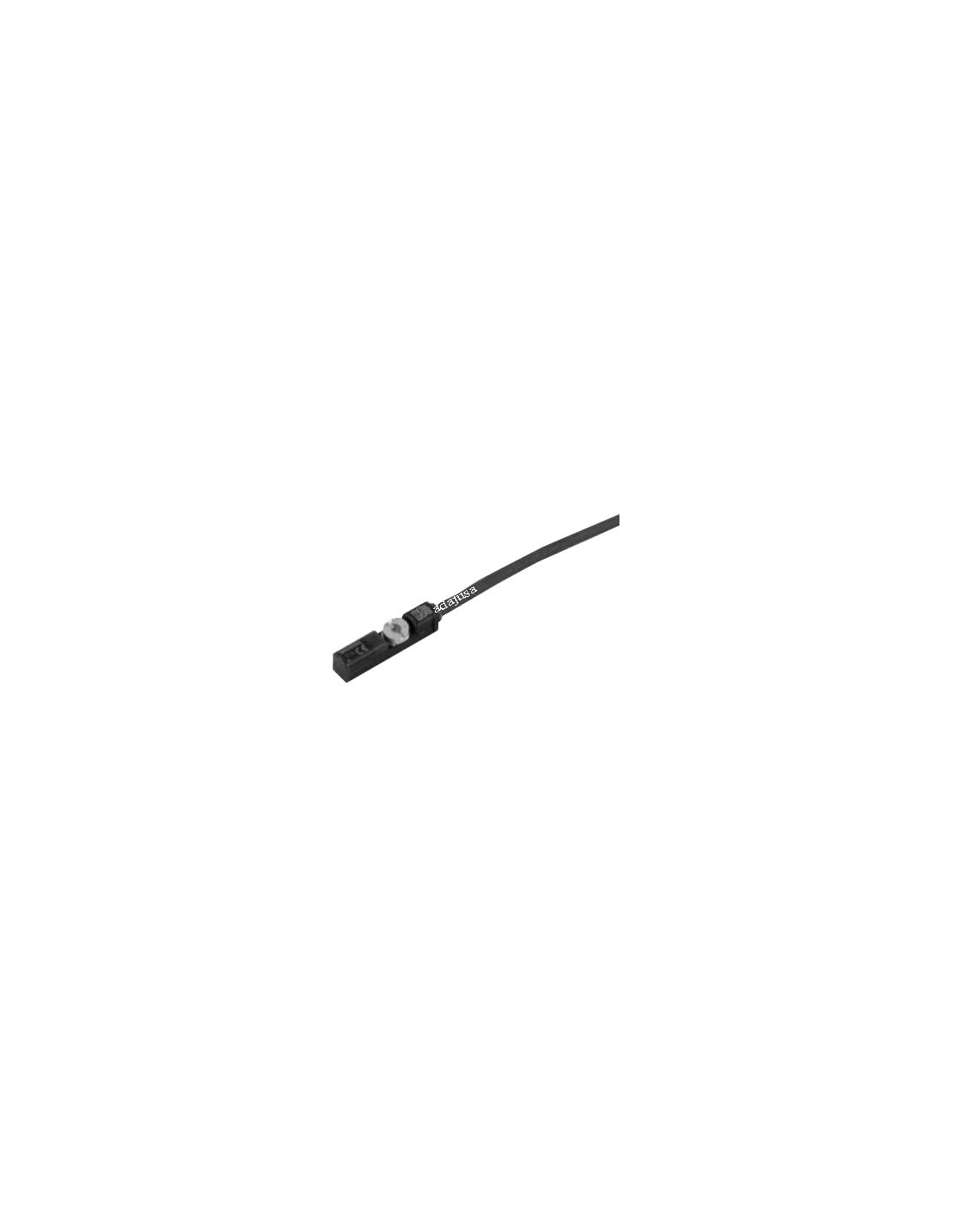

Magnetic sensor, magnetic detector, normally open (NA), with magnetic collector hall and PNP output, with M8 ATEX connector

Reference: W0955A9

simbolo detector magnetico 3 hilos

Pictograma ATEX

Logotipo Metal WorkRepresentative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Magnetic sensor with M8 connector for mounting on pneumatic cylinders. Hall type 3 wires with PNP output. ATEX certification.

This sensor has the feature of being able to be mounted on the cylinder slot from above, i.e. the cylinder racks do not need a through opening.

Fixed by a screw qaue press against the bottom of the T-slot, the fixing screw is for a 1.5mm allen wrench. The sensor, allows to be installed on any cylinder or component with traditional T-slots.

Magnetic Detector Features:

  • Manufacturer: Metal Work
  • Manufacturer's Reference: W0952025390
  • Contact type: Hall NO PNP (Normally open).
  • Supply voltage (Ub): 10 ÷ 30 Vdc.
  • Voltage variation: ≤10% ub.
  • Voltage drop: 2V ≤.
  • Power (W): 3.
  • Peak power (W): 6.
  • Output current (mA): ≤ 100.
  • Switching frequency (Hz): ≤ 400.
  • Short circuit protection: Yes.
  • Overload protection: Yes.
  • Investment protection: Yes.
  • Regulations: EC, EN60947-5-2
  • Color LED status indicator: Yellow.
  • Magnetic sensitivity: 2.8mT±25%.
  • Frequency: ≤ 0.1mT.
  • Degree of protection (according to EN60529): IP67.
  • Working temperature (oC): -25÷70.
  • Sensor capsule material: PA66 + PA61/6T.
  • Connector type: M8x1
  • Type of connection cable with M8x1: Polyurethane; 2 x 0.14 mm2
  • ATEX Category: II 3G Ex nA IIC T4 Gc X
  • II 3D Ex tc IIIC T135oC Dc IP67 X
  • Number of drivers: 3.
  • measurement
    Length 34 mm.
    Width 7 mm.
    Height 4 mm.

Other models: consult.

Dimensiones sensor ovalado Metal work

Conexionada sensor hall ovalado metal work

Material for professional use, install in compliance with the regulations in force at the place of installation.

Material for professional use, install respecting the regulations in force in the place of installation.
