4-wire cable with M12 female connector 5m
4-wire cable with M12 female connector 5m

4-wire cable with M12 female connector 5m

€17.77 Tax included

14.69 tax excl.

7000-12221-6140500

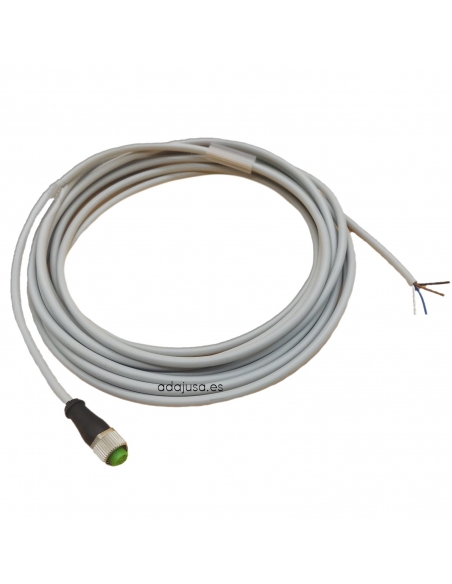

4-wire cable with mounted straightM12 female connector . Cable length of 5 meters. Plastic housing with excellent resistance against chemicals and oils.

Part number: 7000-12221-6140500


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Connection cable for electrical elements with M8 female connector. The cable consists of 4 insulated conductors of 2,25mm, assembled with M12 straight female connector. The length of the cable is 5 meters. The cable is made of black PVC.

  • Manufacturer Murr Electronick.
  • Manufacturer's reference: 7000-12221-6140500
  • Connector type: Straight M12 female.
  • number of poles: 4 pins.
  • Type of cable: PVC 4x0,34 in black color.
  • Wire colors: Brown, black and blue.
  • AWG: similar to AWG 22.
  • Working voltage: 250V AC/DC.
  • Maximum admissible current per contact: 4A.
  • Cable material: PVC.
  • Cable length: 5m.
  • Cable material: Cu cable.
  • Approval (cable): UL (AWM-Style 2464/1731), CSA.
  • Resistance (main): max. 79 Ohm/km (20 °C).
  • Material coupling nut: Nickel-plated brass.
  • Protection: IP67.
  • Suitable for energy chains: Yes.
  • Cable outer diameter: 4.8mm ±0.5mm.
  • Bending radius (movable): 10xØ outside.
  • Temperature range (fixed): -30º.. +80ºC.
  • Temperature range (mobile): -5º.. +80ºC.
  • Material (cable insulation): PVC.
  • Material properties (cable insulation): CFC, cadmium , silicone and lead free.
  • Protection: IP65; IP66K, IP67 in plugged and screwed state (EN 60529).

Dimensiones conector M12 con cable

Disposicion pines conector M12

Material for professional use, install in compliance with the regulations in force at the place of installation.
