Manual lever valve 1/8 5/3 positions pressure...
Manual lever valve 1/8 5/3 positions pressure centers spring return spring lever 90 degrees - Aignep

Manual lever valve 1/8 5/3 positions pressure centers spring return spring lever 90 degrees - Aignep

€48.28 Tax included

€39.90 tax excl.

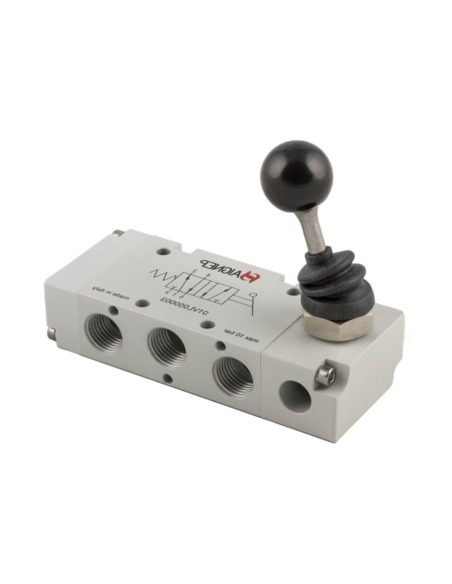

Valve 1/8 manually operated by 90º angle lever of 5 way and 3 fixed positions, centers in pressure, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated. For control of double acting cylinders. Made of anodized and painted aluminum.

Series: 01V
Reference: 01VL07PC02

PC53ESQUEMA Logotipo Aignepiconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!
Privacy
Shipments
Returns


Valve of 1/8 manually operated by lever of 5 way and 3 fixed positions, centers in pressure, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated, for control of double acting cylinders, the valve has 3 positions, in one of them the cylinder advances, in the central one, the cylinder stops but maintains pressure (force) not allowing the air present in its exits to escape, and in the other position the cylinder is collected.

Actuated by angular lever at 90º.

Manufacturer: Aignep

  • Reference: 01VL07PC02
  • Operating pressure: Vacuum ÷ 10
  • Operating temperature °C: -10 ÷ +60
  • Panel mounting: M16x1
  • Flow rate at 6 bar ΔP 1 bar Nl/min: 740

CCDIMENSIONES1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"
