Pneumatic valve 1/8 3-way 2 lever 90o monostable Metal Work | Price adajusa.com.com.'

Valve manual lever 1/8 3/2 return spring lever 90 degrees - Metal Work

Name: Valve manual lever 1/8 3/2 return spring lever 90 degrees - Metal Work
Brand: Metal Work
SKU: 7010000100
Price: 44.27 EUR
Availability: InStock

€44.27 Tax included

36.59 tax excl.

7010000100

Valve manual lever drive 1/8. 3-way 2 positions return spring, metal body, actuate lever to 90º. For single effect cylinder control.

Reference: 7010000100

Logotipo Metal Work

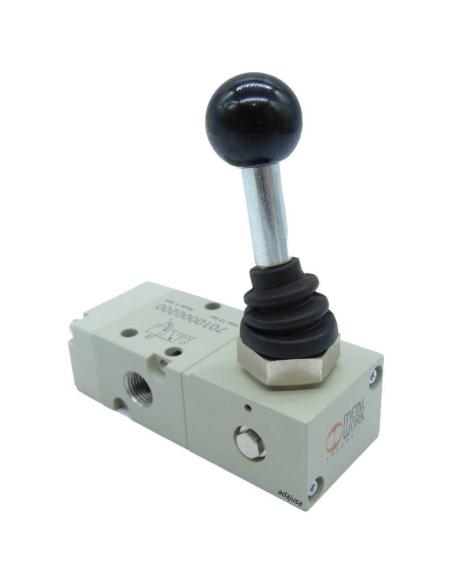

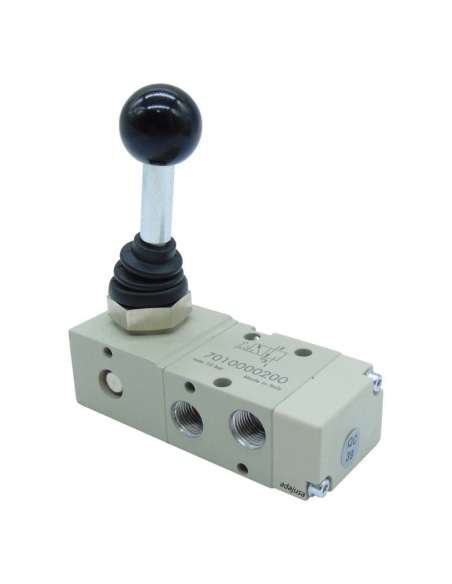

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Manual lever drive valve 1/8 2 position spring return, 3-way 2 positions that allow to control cylinders of simple effect. In one position the cylinder is collected, in another position the cylinder advances. It can also be used as a pneumatic circuit passage valve or cut-off.

Angular lever drive at 90º.

Manufacturer: Metal Work.
Reference: MAV 23 LES NC Code: 7010000100
Operating pressure Bar: Empty ÷ 10
Operating temperature C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min ? bar: 121.43
Critical relationship b bar/bar: 0.32
Flow rate at 6 bar P 0.5 bar Nl/min: 400
Flow rate at 6 bar P 1 bar Nl/min: 550

For other models consult.

dimensiones valvula 1-8 3-2 accionamiento manual por palanca

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the data sheet by clicking on the tab "Attachments"

Lever valve data sheet

Download (959.43KB)
