Way valve 1/8 4- 2 rotary lever positions - Mindman

€34.40 Tax included

€28.43 tax excl.

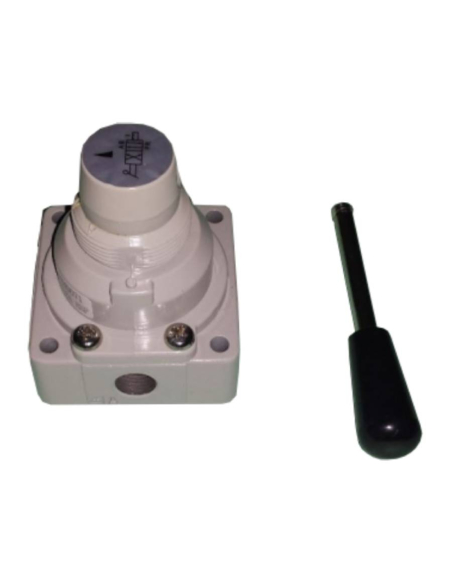

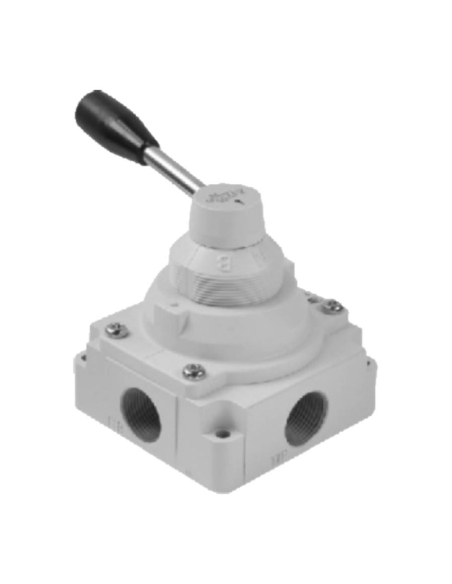

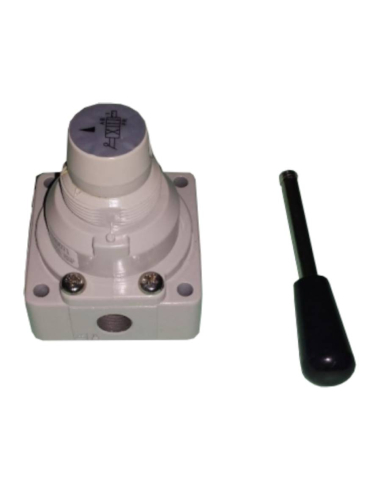

Valve 1/8  manually operated by rotary lever. 4 ways 2 positions, metal body. For single and double effect cylinder control.
Reference: 281MVHC2024H06A

https://rodavigo.net/datos/logos-marcas-png/th_mindman.png

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

No queries yet, leave the first!


Manual drive valve 1/8  by 2 fixed position rotary lever, 4-way 2 positions that allow to control single and double effect cylinders. In one position the cylinder is collected, in another position the cylinder advances. It can also be used as a pass valve or pneumatic circuit cut-off.

Fastening by through screws or transpanel mounting with front nut fastening. Mounting accessories not included in the supply.

Technical characteristics:

  • Manufacturer: Mindman.
  • Reference: MVHC-202-4H-6A.
  • Configuration: 4 ways 2 fixed positions.
  • Thread type: G 1/8".
  • Effective surface: 7mm2.
  • Fluid type: Air under pressure, with or without lubrication.
  • Working pressure: 0 to 10 Kgr.
  • Working temperature: -5o to +60o (Non-condensing).
  • Screw fastening: 4 through holes 5.5mm.
  • Nut fixing: M33x1.5mm nut (Not included).
  • Valve body material: Metal.
  • Weight: 336 g.

For other models consult. You can download the catalog by clicking on the DOWNLOADS tab.

Dimensiones válvulas rotatorias mindman 1/8 2 posiciones
