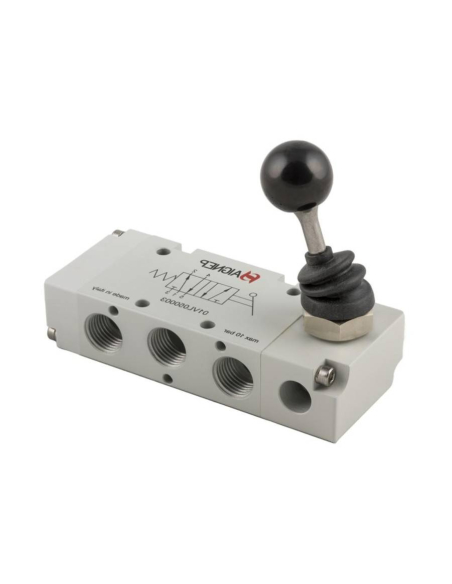

Manual lever valve 1/8 5/3 positions open centers spring return lever 90 degree - Aignep

Name: Manual lever valve 1/8 5/3 positions open centers spring return lever 90 degree - Aignep
Brand: Aignep
SKU: 01VL07OC02
Price: 49.1502 EUR
Availability: PreOrder

€49.15 Tax included

€40.62 tax excl.

Valve 1/8 manually operated by 90º angle lever of 5 way and 3 fixed positions, open centers, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated. For control of double acting cylinders. Made of anodized and painted aluminum.

Series: 01V
Part number: 01VL07OC02

Logotipo Aignep iconos-válculas aignep

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Valve 1/8 manually operated by lever of 5 way and 3 fixed positions, closed centers, spring return, the valve is actuated when the lever is actuated and returns to the rest position when the lever stops being actuated, for control of double acting cylinders, the valve has 3 positions, in one of them the cylinder advances, in the central one, the cylinder stops but maintains pressure (force) not allowing the air present in its outlets to escape, and in the other position the cylinder is collected.

Actuated by angular lever at 90º.

Manufacturer: Aignep

Part number: 01VL07OC02
Operating pressure: Vacuum ÷ 10
Working temperature °C: -10 ÷ +60
Panel mounting: M16x1
Flow rate at 6 bar ΔP 1 bar Nl/min: 740

CCDIMENSIONES1

Material for professional use, install in compliance with the regulations in force at the place of installation.

For further information you can download the data sheet by clicking on the tab "Attachments"

Aignep valves catalog

Aignep series 01 valves and solenoid valves catalog

Download (8.44MB)
