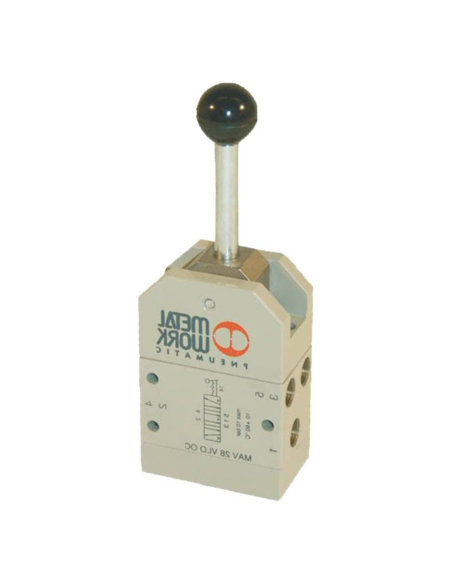

Manual lever valve 1/8 5/3 axial lever - Metal Work

Name: Manual lever valve 1/8 5/3 axial lever - Metal Work
Brand: Metal Work
SKU: 7010001150
Price: 78.65 EUR
Availability: InStock

€78.65 Tax included

€65.00 tax excl.

Valve of 1/8 manual lever drive. Axial lever, 5/3 stable positions. Open Centers

Reference: 7010001150

Logotipo Metal Work

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

No queries yet, leave the first!

Privacy

Shipments

Returns

Valve of 1/8 manual actuation by axial lever of 3 stable positions, 5 ways, open centers.

Manufacturer: Metal Work.
Reference: 7010001150 MAV 28 VLO OC
Operating pressure bar: Empty ÷ 10
Operating temperature °C: -10 ÷ +60
Nominal diameter mm: 5
Conductance C Nl/min · bar: 121.43
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 400
Flow rate at 6 bar ΔP 1 bar Nl/min: 550

Material for professional use, install in compliance with the regulations in force at the place of installation.

To expand the information you can download the technical sheet by clicking on the "Attachments" tab

70 manual series valves

Download (1.51MB)
