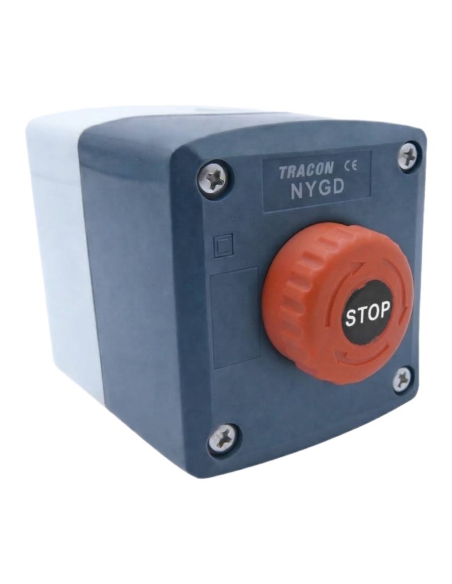

Button box with mushroom push-button stop Ø40 NYG3-ETLR| ADAJUSA | price
Button box with mushroom push-button stop Ø40 NYG3-ETLR| ADAJUSA | price

Box with mushroom pushbutton Ø40 with full rotation unlocking indication - NYG Series

€14.33 Tax included

€11.84 tax excl.

PK-NYG3-ETLR

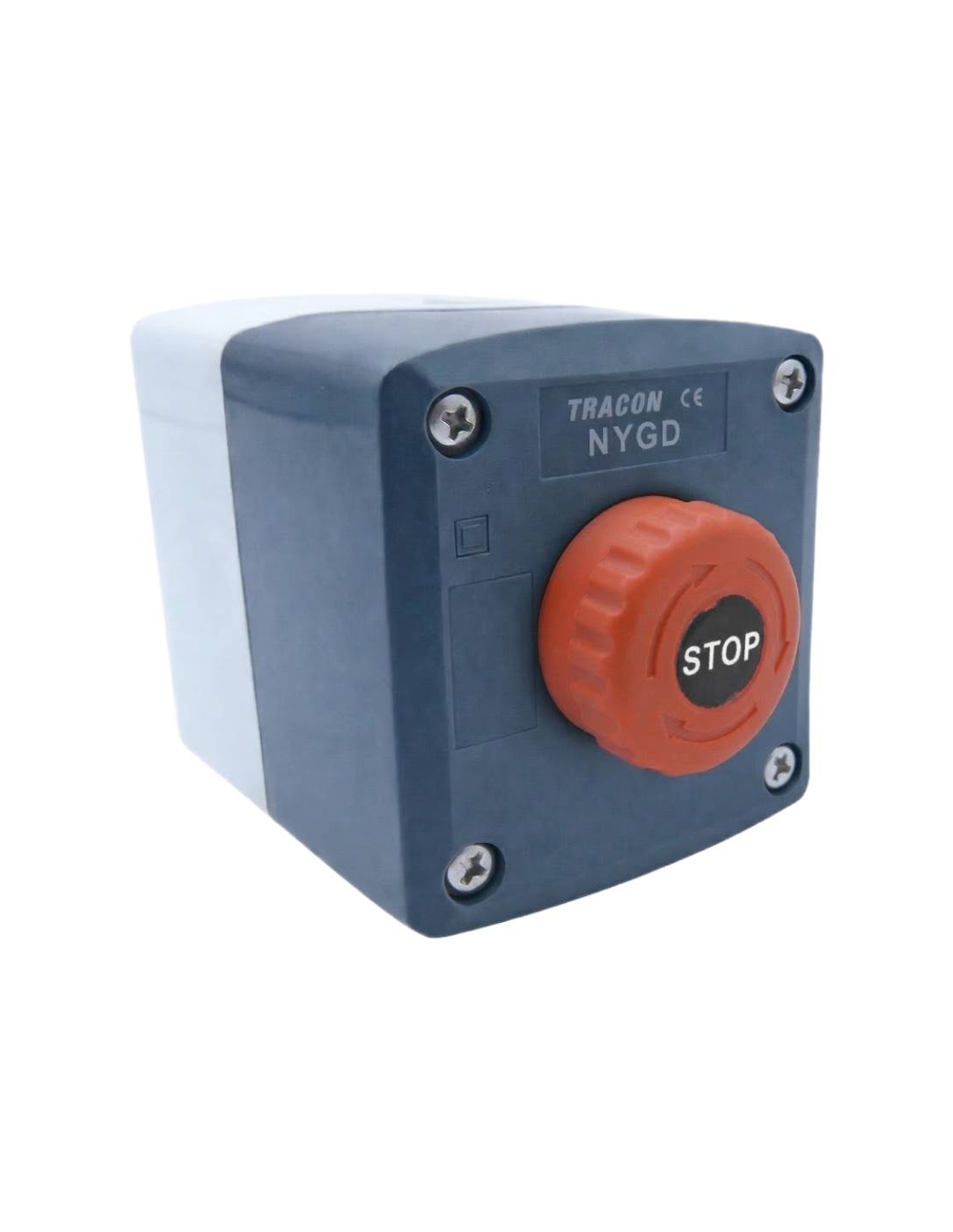

Box with mushroom type stop push button unlocking by turning, diameter 40mm. Plastic mushroom push button with visual status indication and STOP marking, with a closed contact (1NC) and case made of high resistance plastic in gray color and dark gray front.


Reference: PK-NYG3-ETLR


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with full mushroom type stop push button. Plastic mushroom push button of 40mm diameter with visual status indication and STOP marking with twist release and one closed contact (1NC), case made of high resistance plastic in grey color and front in dark grey color. Degree of protection IP65 from the front side.

The enclosure has space for mounting an additional contact, open or closed, on the pushbutton. The maximum number of contacts per element is 2.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the mounting, the box and the pushbutton are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYG3-ETLR
  • Push button type: Stop button
  • Push button color: Red
  • Inscription: STOP
  • Contacts1 NC
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP44
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

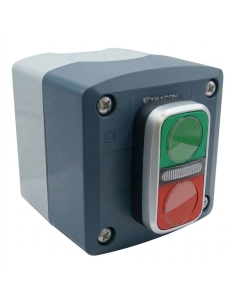

Button box with start-stop push button NYG3-D| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with full start-stop pushbutton - NYG Series

TRACON
PK-NYG3-D
€11.17 (€9.23 tax excl.)
Box with full start-stop push button. Double plastic on-off push button with one contact open and one contact closed (1NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYG3-D Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

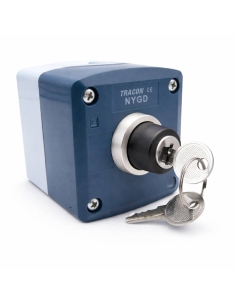

Button box with key selector 3 potions NYK3-K31| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position key selector switch complete - NYG Series

TRACON
PK-NYK3-K31
€11.80 (€9.75 tax excl.)
Box with full 3-position key-operated selector switch. Plastic key-operated three-position selector with one contact open and one contact closed (NO + NC), housing made of high-strength gray plastic and dark gray front. Part number: PK-NYK3-K31 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Button box with mushroom stop button Ø40 NYGBC42PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal stop mushroom push button Ø40 complete - NYG Series

TRACON
PK-NYGBC42PT
€9.43 (€7.79 tax excl.)
Box with non- interlocking mushroom stop button, diameter 40mm. Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYGBC42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.

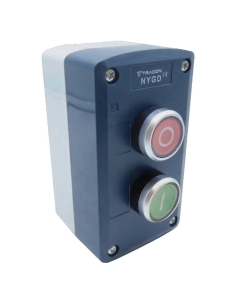

Button box with start-stop push buttons I-O Tracon| ADAJUSA : price
  • Pack
Button boxes with controls already installed

Box with full on-off (I-O) pushbuttons - NYG Series

TRACON
PK-NYG3-P1-P2
€15.22 (€12.58 tax excl.)
Box with full start-stop pushbuttons. Green push button with "I" inscription with an open contact (1NO) and red push button with "O" inscription with a closed contact (1NC). Box made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYG3-P1-P2 Representative image for illustrative purposes, the item supplied will...
Button box with 3-position selector with left side return NYK3-S33BK| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position selector with full left return - NYG Series

TRACON
PK-NYK3-S33BK
€10.35 (€8.55 tax excl.)
Box with 3-position selector with full return. Plastic selector of three positions with return in the left side position remaining fixed in the right and central position, with two open contacts 2(NO). Box manufactured in high resistance plastic of grey color and front in dark grey color. Part No.: PK-NYK3-S33BK Representative image for illustrative...
Button box with Ø40 mushroom stop button with interlocking NYG542P40T| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal mushroom stop button with interlocking complete - NYG Series

TRACON
PK-NYG542P40T
€10.27 (€8.49 tax excl.)
Box with 40mm diameter mushroom stop button with complete interlocking . Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYG542P40T Representative image for illustrative purposes, the item supplied will correspond to the indicated...

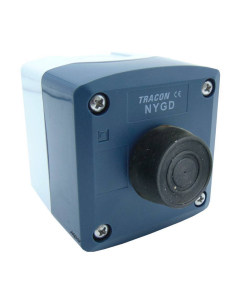

Black push Button box with rubber cover NYGBP21T| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with black metal push button with full rubber cover - NYG Series

TRACON
PK-NYGBP21T
€9.63 (€7.96 tax excl.)
Black push button Box with full rubber cover. Black metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP21T Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Push box full emergency stop - Giovenzana Push box full emergency stop - Giovenzana 2
Stop and emergency pushbuttons

Complete emergency stop push button box - Giovenzana

Giovenzana Internacional B.V.
GI-TLP1.ETR
€15.97 (€13.20 tax excl.)
Emergency stop push button box with interlocking , unlocking by turning. It has a closed contact (NC) with positive opening. Complies with specific regulations for elevators and machines, allowing all safety requirements to be met. Made in Europe. The supply includes the complete button, box, closed contact and cable gland. Reference: TLP1.ETR...

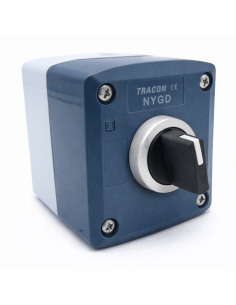

Button box with 3-position selector with right return NYK3-S32BK| ADAJUSA : price
  • Pack
Button boxes with controls already installed

Box with 3-position selector with full right return - NYG Series

TRACON
PK-NYK3-S32BK
€10.35 (€8.55 tax excl.)
Box with 3-position selector with full return. Plastic selector of three positions with return in the position of the right side remaining fixed in the left and central position, with two open contacts 2(NO). Box manufactured in high resistance plastic of gray color and front in dark gray color. Ordering Number: PK-NYK3-S32BK Representative image for...
PLN07 Giovenzana series 7-element adajusa
Lifting elements - crane bridges - hostas

Emergency button PLN07 bridge crane or hoste - Giovenzana

Giovenzana Internacional B.V.
GI-PLN07
€120.60 (€99.67 tax excl.)
Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down, behind and front and left right. It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe. The supply includes: Box for 7 elements...

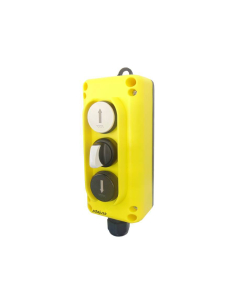

TLP3 type button. D - Giovenzana adajusa
