Button box with mushroom push-button stop Ø40 NYG3-ETR| ADAJUSA | price
Button box with mushroom push-button stop Ø40 NYG3-ETR| ADAJUSA | price

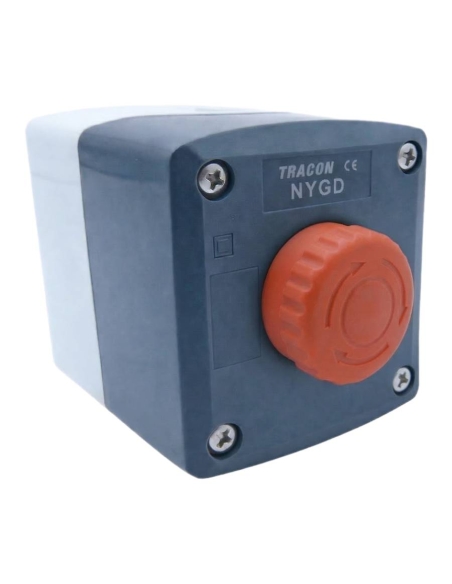

Box with mushroom pushbutton Ø40 mushroom pushbutton with full twist release - NYG Series

€12.16 Tax included

€10.05 tax excl.

PK-NYG3-ETR

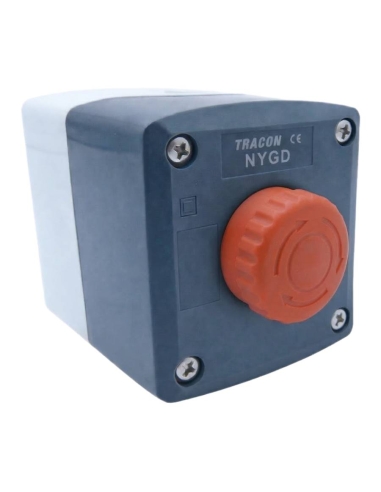

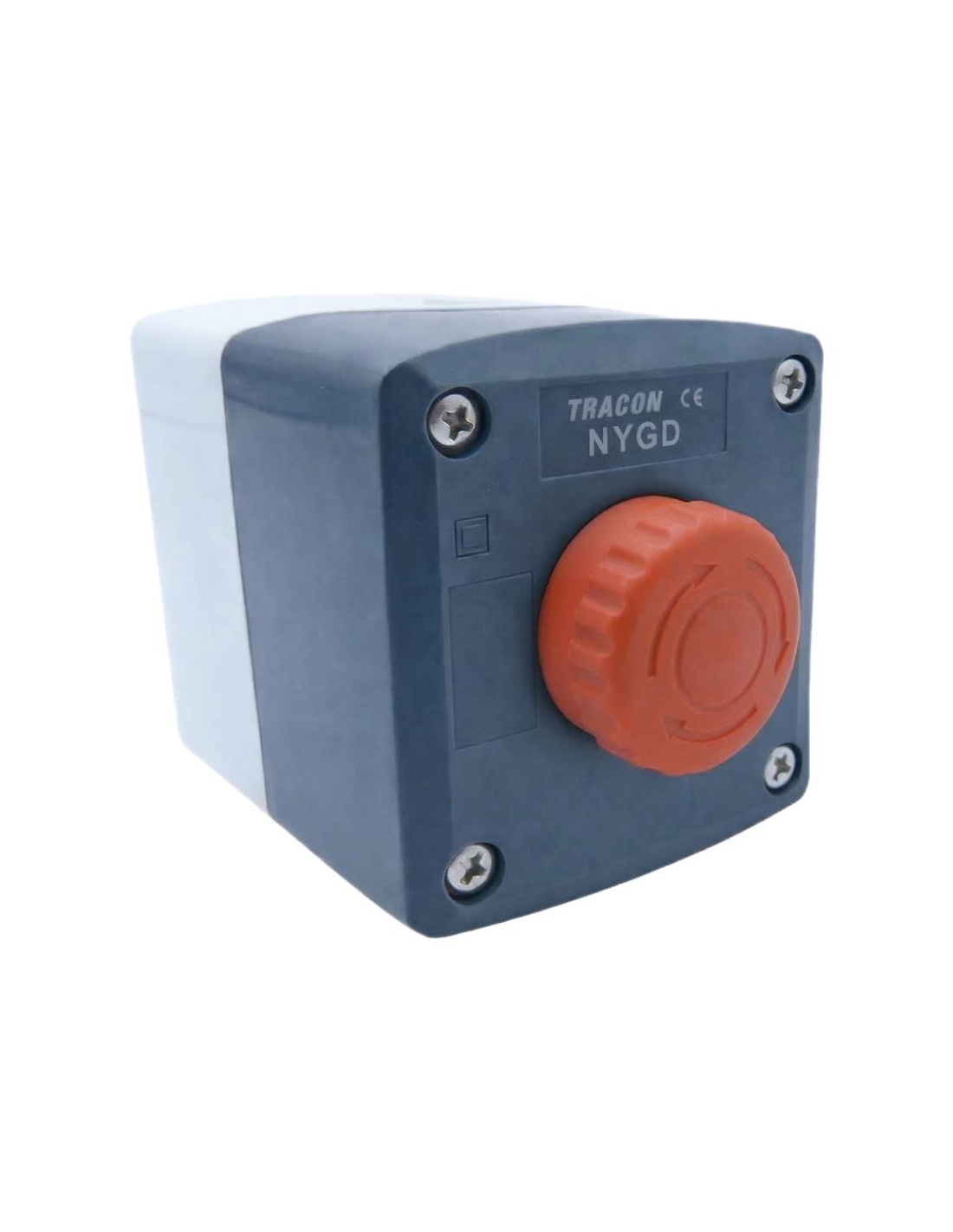

Box with mushroom type stop push button with twist release, diameter 40mm. Plastic mushroom push button with one closed contact (1NC) and case made of high resistance plastic in grey color and dark grey front.


Reference: PK-NYG3-ETR


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with full mushroom type stop push button. Plastic mushroom push button of 40mm diameter with twist release and one closed contact (1NC), case made of high resistance plastic in grey color and front in dark grey color. Degree of protection IP65 from the front side.

The enclosure has space for mounting an additional contact, open or closed, on the pushbutton. The maximum number of contacts per element is 2.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the mounting, the box and the pushbutton are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYG3-ETR
  • Push button type: Stop button
  • Push button color: Red
  • Inscription: None
  • Contacts1 NC
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP44
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Pendant control station 2 cuts Harmony XAC SCHNEIDER | ADAJUSA | price Pendant control station 2 cuts Harmony XAC SCHNEIDER | ADAJUSA | price 2
Lifting elements - crane bridges - hostas

Empty pendant push Button box 2 push buttons - SCHNEIDER

Schneider
XACA02
€52.99 (€43.79 tax excl.)
Empty Button box with die-cut for two push-buttons, allows for custom composition by adding the necessary control units for machinery control and general use. Pendant control Box ideal for elevators and crane applications, made of yellow polypropylene with stepped rubber cable entry.Compatible with push buttons, pilot lights, switches and selectors with a...
Button box with 3-position selector with return NYBD53KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

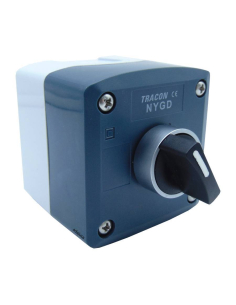

Box with 3-position metal selector with full return - NYG Series

TRACON
PK-NYBD53KSTT
€11.24 (€9.29 tax excl.)
Box with complete 3-position selector. Short lever metal selector with 3 positions with return (1 fixed position and 2 others keeping it activated) and 2 open contacts (2NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD53KSTT Representative image for illustrative purposes, the item supplied will...
Button box with key selector switch 2 potions NYK3-K21| ADAJUSA | price
  • Pack
Button boxes with controls already installed

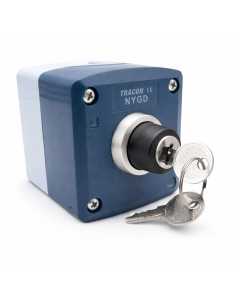

Box with 2-position key selector switch complete - NYG Series

TRACON
PK-NYK3-K21
€11.80 (€9.75 tax excl.)
Box with 2-position key-operated selector switch complete. Plastic key-operated two-position selector with one contact open and one contact closed (NO + NC), housing made of high-strength gray plastic and dark gray front. Part number: PK-NYK3-K21 Representative image for illustrative purposes, the item supplied will correspond to the specifications...
Button box with 3-position selector with left side return NYK3-S33BK| ADAJUSA | price
  • Pack
Button boxes with controls already installed

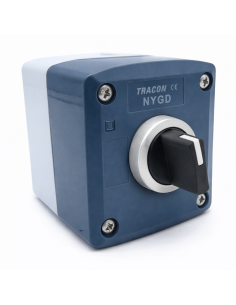

Box with 3-position selector with full left return - NYG Series

TRACON
PK-NYK3-S33BK
€10.35 (€8.55 tax excl.)
Box with 3-position selector with full return. Plastic selector of three positions with return in the left side position remaining fixed in the right and central position, with two open contacts 2(NO). Box manufactured in high resistance plastic of grey color and front in dark grey color. Part No.: PK-NYK3-S33BK Representative image for illustrative...
Button box with start-stop push button NYG3-D1| ADAJUSA | price
  • Pack
Button boxes with controls already installed

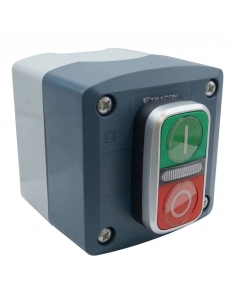

Box with full On-Off (I-O) push button - NYG Series

TRACON
PK-NYG3-D1
€11.31 (€9.35 tax excl.)
Box with full start-stop push button. Double plastic on-off push button with I-O inscription with one contact open and one contact closed (1NO + NC). Box made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYG3-D1 Representative image for illustrative purposes, the item supplied will correspond to the...
Button box with mushroom push-button stop Ø40 NYG3-ETLR| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with mushroom pushbutton Ø40 with full rotation unlocking indication - NYG Series

TRACON
PK-NYG3-ETLR
€14.33 (€11.84 tax excl.)
Box with mushroom type stop push button unlocking by turning, diameter 40mm. Plastic mushroom push button with visual status indication and STOP marking, with a closed contact (1NC) and case made of high resistance plastic in gray color and dark gray front.Reference: PK-NYG3-ETLR Representative image for illustrative purposes, the item supplied will...
Button box with Ø40 mushroom stop button with interlocking NYG542P40T| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal mushroom stop button with interlocking complete - NYG Series

TRACON
PK-NYG542P40T
€10.27 (€8.49 tax excl.)
Box with 40mm diameter mushroom stop button with complete interlocking . Red metal pushbutton with a closed contact (1NC) and a box made of high-resistance gray plastic with a dark gray front. IP44 protection grade.Reference: NYG542P40T Representative image for illustrative purposes, the item supplied will correspond to the indicated...

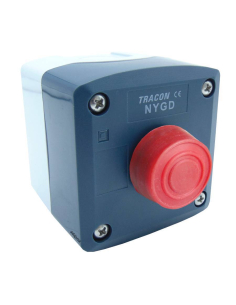

Button box with stop button with rubber cover NYGBP42PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal stop button with full rubber cover - NYG Series

TRACON
PK-NYGBP42PT
€9.75 (€8.06 tax excl.)
Box with stop button with complete rubber cover. Red metal pushbutton with a closed contact (1NC) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP42PT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with 3-position key selector switch with return NYK3-K41| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position key selector with full return - NYG Series

TRACON
PK-NYK3-K34
€12.14 (€10.03 tax excl.)
Box with 3-position key-operated selector switch with full return. Three-position plastic selector with key-operated return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYK3-K34 Representative image for illustrative purposes, the item supplied...
TLP6E1 Giovenzana button - adajusa TLP6E1 Giovenzana button - adajusa 2
Button boxes with controls already installed

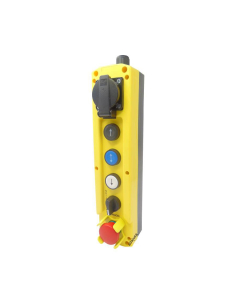

TLP6E1 - Giovenzana type button

Giovenzana Internacional B.V.
GI-TLP6E1
€58.03 (€47.96 tax excl.)

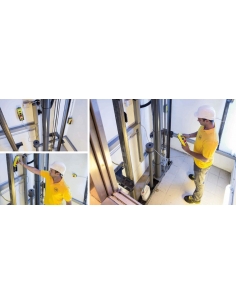

Button box mounted for moat and inspection of elevators, with pushbuttons with monoblock contacts, IP-54. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: Box for 5 elements with socket for plug type schuko. Emergency pushbutton 1 NC (Possibility to mount another...
View

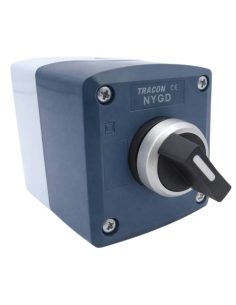

Button box with 2-setting selector NYK3-S21BK| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position selector complete - NYG Series

TRACON
PK-NYK3-S21BK
€10.35 (€8.55 tax excl.)
Box with full 2 position selector. Plastic selector with two positions maintained with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYK3-S21BK Representative image for illustrative purposes, the item supplied will correspond to the specifications...

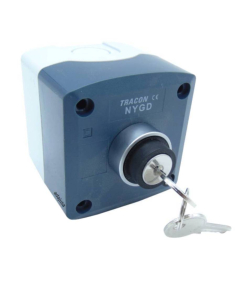

Button box with 3-position key selector switch Off NYBG53KKT| ADAJUSA | price
