• Pack
Button box with key selector 3 potions NYK3-K31| ADAJUSA | price
Button box with key selector 3 potions NYK3-K31| ADAJUSA | price

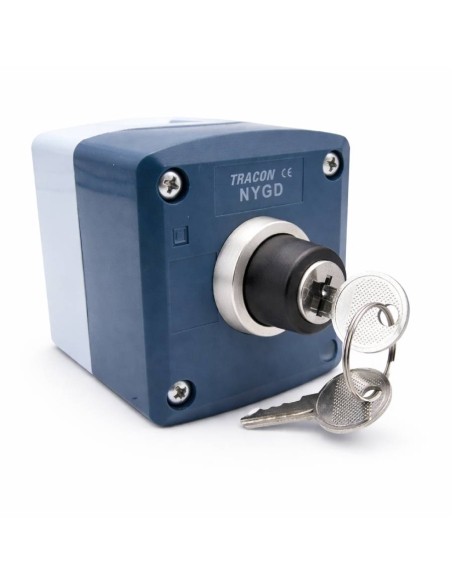

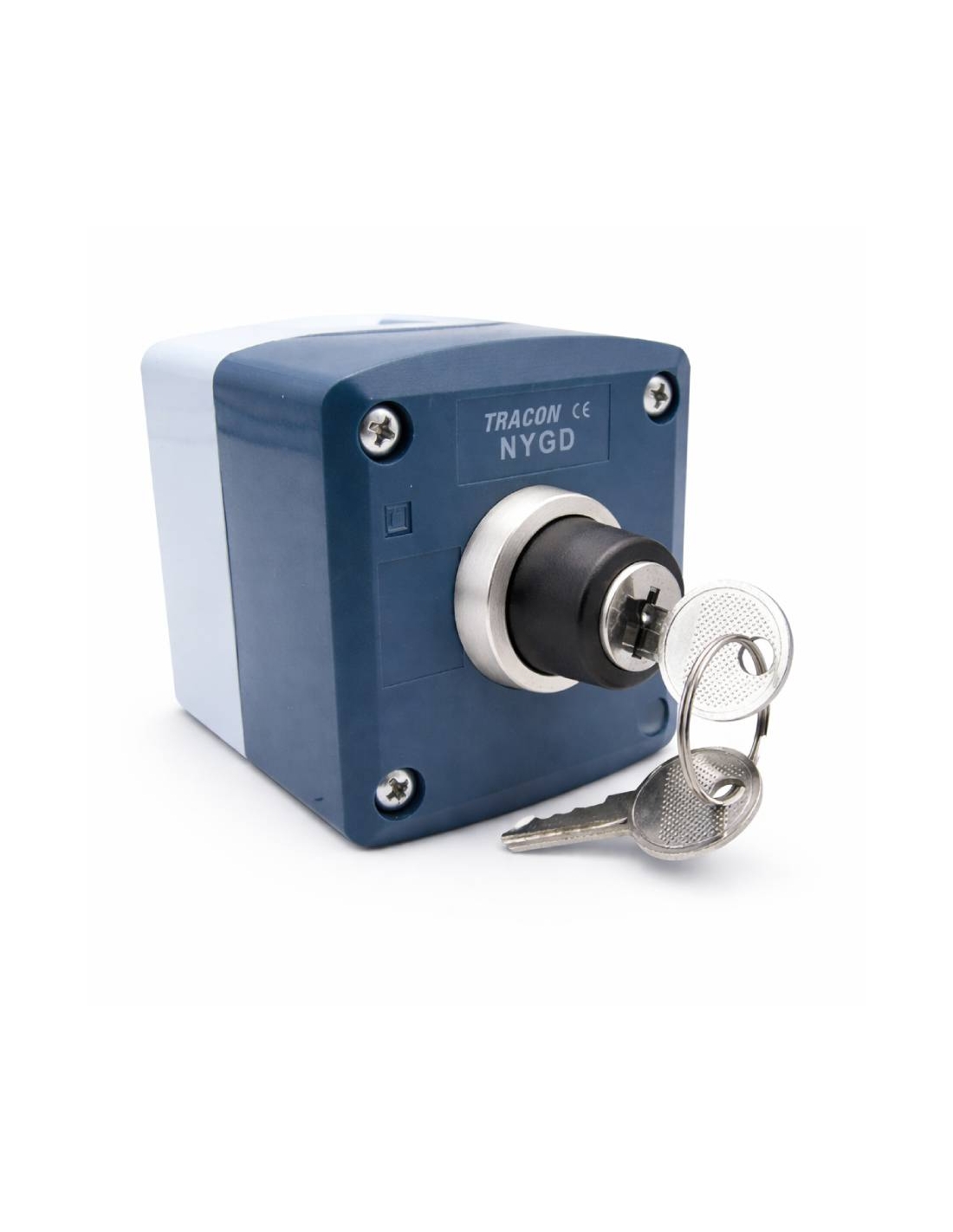

Box with 3-position key selector switch complete - NYG Series

€11.80 Tax included

€9.75 tax excl.

PK-NYK3-K31

Box with full 3-position key-operated selector switch. Plastic key-operated three-position selector with one contact open and one contact closed (NO + NC), housing made of high-strength gray plastic and dark gray front.


Part number: PK-NYK3-K31


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with three-position fixed key selector complete. Plastic key-operated selector switch with three positions maintained with one contact open and one contact closed (NO + NC), the key can be inserted or extracted in all three positions. Box made of high resistance plastic in grey color and front in dark grey color. Degree of protection IP65 from the front side.

The dimensions of the box are: 73x71x65,5mm



The supply does not include the assembly, the box and the push button are supplied loose.



Features:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYK3-K31
  • Push button type: 3-position selector
  • Push button color: Black
  • Inscription: None
  • Contacts1 open (NO), 1 closed (1NC)
  • Box in light grey/dark grey plastic
  • Bore diameter: 22mm
  • Rated working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

Button box with 3-position selector with right return NYK3-S32BK| ADAJUSA : price
  • Pack
Button boxes with controls already installed

Box with 3-position selector with full right return - NYG Series

TRACON
PK-NYK3-S32BK
€10.35 (€8.55 tax excl.)
Box with 3-position selector with full return. Plastic selector of three positions with return in the position of the right side remaining fixed in the left and central position, with two open contacts 2(NO). Box manufactured in high resistance plastic of gray color and front in dark gray color. Ordering Number: PK-NYK3-S32BK Representative image for...
Button box with key selector 2 positions Off with return NYBG61KKT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal selector key 2 positions Off with full return - NYG Series

TRACON
PK-NYBG61KKT
€11.17 (€9.23 tax excl.)
Box with 2-position selector activated by a complete key. 2-position metal selector with return (1 fixed position and another keeping it activated) and 1 open contact (NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.The key can be inserted or removed only in the Left "Off" position.Reference: NYBG61KKT...

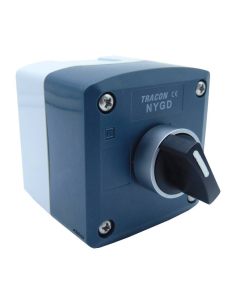

Button box with 2-position selector with return NYBD41KSTT| ADAJUSA | price
