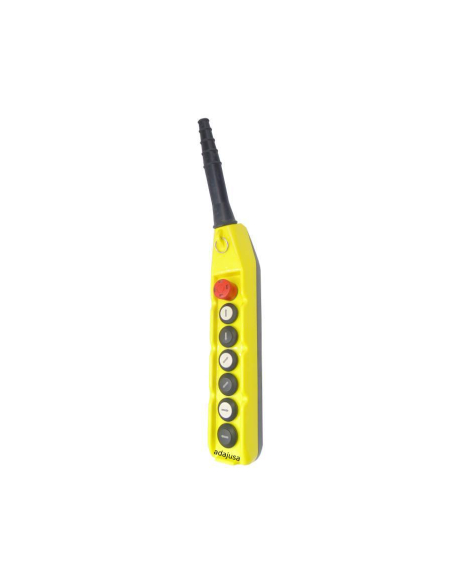

Emergency button PLN07 bridge crane or hoste - Giovenzana

€79.26 Tax included

€65.50 tax excl.

Hanging button mounted for bridge crane or hoist, and use in general. It has an emergency stop button Ø30 with interlocking, and pushbuttons for up and down, behind and front and left right.

It complies with the specific regulations for this type of elements that satisfy all safety requirements. Made in Europe.

The supply includes:

  • Box for 7 elements
  • Emergency pushbutton 1 NC
  • 1NA up button
  • 1NA down button
  • 1NA back button
  • Front button 1NA
  • 1NA Right PushButton
  • 1NA Left PushButton

Reference: PLN07

Logotipo normativa botoneras serie HP resumido

Giovenzana

No queries yet, leave the first!


Ergonomic hanging button with seven buttons for forklifts, hoists and crane bridges, can also be used in industrial and general use applications. The button is equipped with 7 pushbuttons with their corresponding electrical contacts.

This button allows you to control systems with up and down, behind and in front, and lateral movement.

Of European manufacture, it complies with all the applicable regulations for this type of facilities.

The button is supplied fully equipped with the usual elements in this type of facility. It has an ergonomic design that allows a lot of ease of use.

The contacts of the pushbuttons have spring-type terminals for the connection of the cables, are equipped with high capacity contacts (Ith 16a). The emergency stop button is Ø30 with interlocking and unlocking by turning.

The button complies with the regulations for this type of application. it also complies with the machinery directive which allows it to be used in machinery and industrial installations as well.

The supply includes:

  • Box of 7 elements in yellow.
  • Ø30 emergency mushroom-head pushbutton, with interlocking. It has a positive opening nc (NC)
  • Uphill pushbutton, in white with 1 no (1NA).
  • Down button, in black, with 1 no (1NA).
  • Rear pushbutton, in white, with 1 no (1NA)
  • Front button in black, with 1 no (1NA)
  • Right button, in white with 1 no (1NA).
  • Left pushbutton, in black with 1 no (1NA).

PLN

To complement the contacts included in the supply, you can add more blocks of contacts only of the Giovenzana brand, the references are:

  • 1 nc NC, spring cable fastening: GI-PCW01.
  • 1 no NO, spring cable fixation: GI-PCW10.
  • 2 open contacts NO, double speed, cable attachment by spring: GI-PCWDS

specifications:

  • Manufacturer: Giovenzana
  • Series: PLN
  • Reference: PLN07
  • mushroom-head diameter : 30mm.
  • Drive: Press and pull.
  • Box: Made of ABS V0 yellow color.
  • Maximum insulation voltage (Ui): 690Vac.
  • Current (Ith): 16a.
  • Frequency: 50/60Hz.
  • Cable input: M25 gland
  • Working temperature: -25ºC... +70ºC.
  • Degree of isolation: IP65 double isolation (EN60529).
  • Standard: IEC/EN 60947-1; IEC/EN 60947-5-1; IEC/EN 60947-5-4; IEC/EN 60947-5-5.

dimensions:

PLN07 MED

Dibujo conexionado terminales resorte giovenzana

Compliance and certifications
• EN 60947-1 (2007/A1 : 2011/A2 : 2014)
• EN 60947-5-1 (2004/A1 : 2009/AC : 2004/AC : 2005)
• EN ISO 13850 (2015)
• EN 60204-1 (2006/A1 : 2009)
• EN-ISO 13849-1 (2015)
• EN ISO 13849-2 (2012)
• EN 60529 (1991/A1 : 2000/A2 : 2013)
• EN 50581 (2012)
• IEC 63000 (2016)
• 2014/35/EU
• 2011/65/EU
• 2015/863/EU

Logotipo normativa botoneras serie HP


For more information you can download the technical data sheet by clicking on the "Attachments" tab.
Material for professional use, install respecting the regulations in force at the place of installation.
