Button box with start-stop push buttons I-O Tracon| ADAJUSA : price
Button box with start-stop push buttons I-O Tracon| ADAJUSA : price

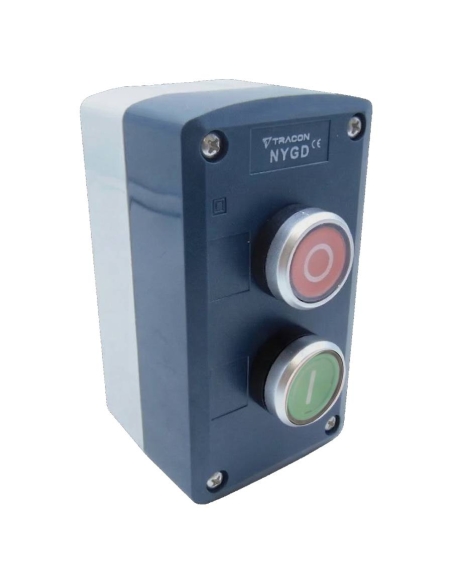

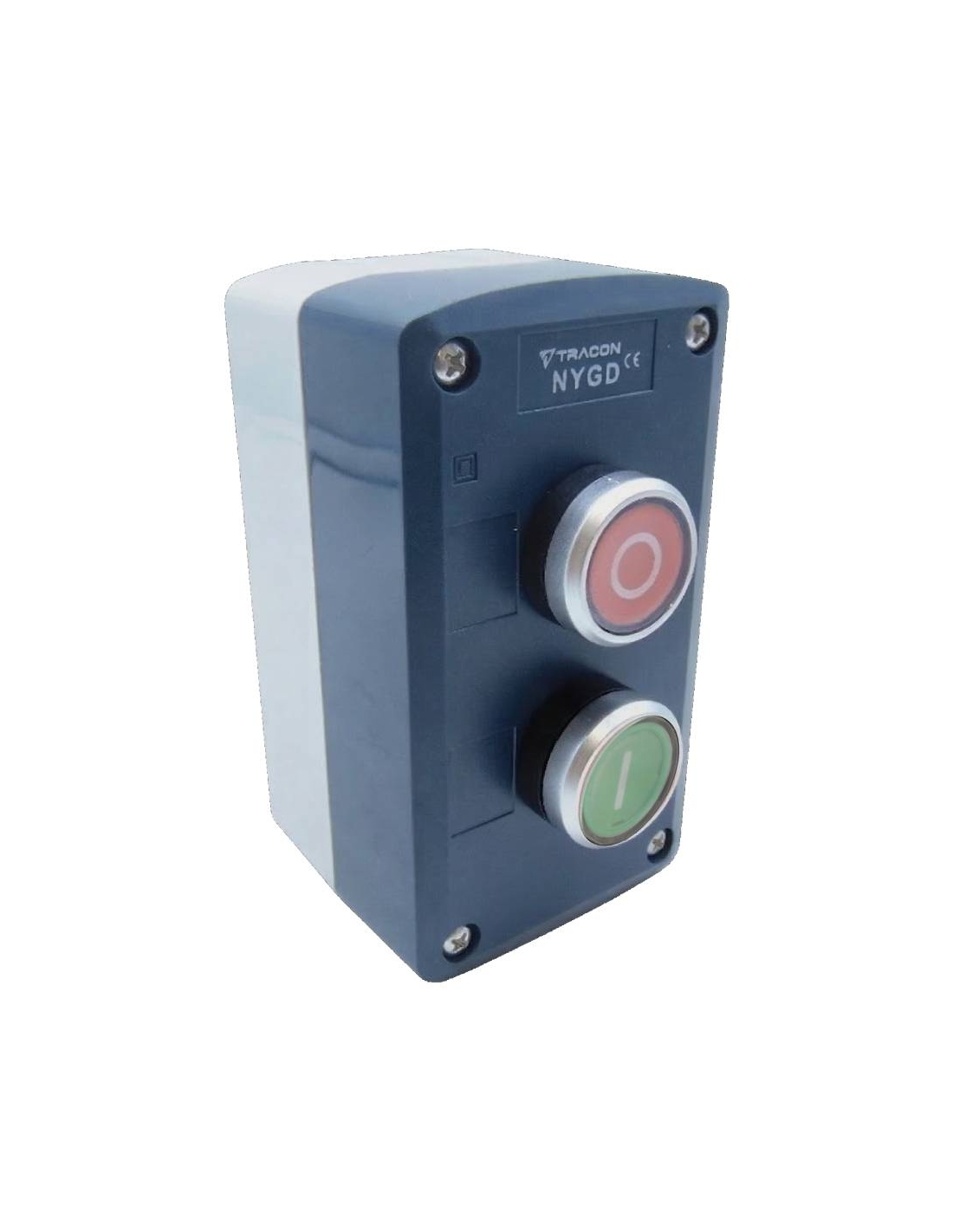

Box with full on-off (I-O) pushbuttons - NYG Series

€15.22 Tax included

€12.58 tax excl.

PK-NYG3-P1-P2

Box with full start-stop pushbuttons. Green push button with "I" inscription with an open contact (1NO) and red push button with "O" inscription with a closed contact (1NC). Box made of high resistance plastic in grey color and front in dark grey color.


Part number: PK-NYG3-P1-P2


Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


Box with plastic start-stop push buttons with I-O inscription. Green start-stop push button marked "I" with one open contact (1NO) and red stop push button marked "O" with one closed contact (1NC). Box made of grey high-strength plastic with dark grey front. IP65 protection rating from the front side.

The enclosure has space for mounting additional contacts, open or closed, on the pushbuttons. The maximum number of contacts per element is 2.

The dimensions of the box are: 130x71x65,5mm



The supply does not include the mounting, the box and the pushbutton are supplied loose.



Characteristics:

  • Manufacturer/Supplier: Tracon
  • Part number: PK-NYG3-P1-P2
  • Pushbutton type: Start-Stop
  • Pushbutton color: Green-Red
  • Inscription: I-O
  • Contacts1 NO + 1 NC. Possibility of mounting additional contacts
  • Box in light gray/dark gray plastic
  • Drilling diameter: 22mm
  • Nominal working current (AC 1, 230V): 6A
  • Rated working current (AC 15, 230V): 3A
  • Rated working current (DC 13, 250V): 0.27A
  • Rated insulation voltage: 660V
  • Working temperature: -25ºC to +40ºC
  • Degree of protection: IP65 (from front side)
  • Standards: EN 60947-1; EN 60947-5-1










Material for professional use, install in compliance with the regulations in force at the place of installation.

Questions

Be the first to ask a question about this product!

Question about the product

* Required fields
(read)

Responsible: ADAJUSA (CONSTRUCCIONES PBR, S.L.), purpose: Respond to requests for information, legitimacy: consent of the interested party, recipients: data will not be communicated to third parties, rights: Access, rectify and delete data, as well as other rights, as explained in the additional information. (read)

16 other products in the same category:

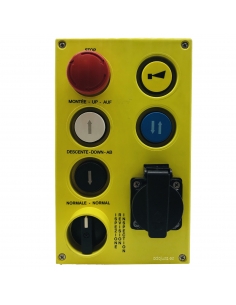

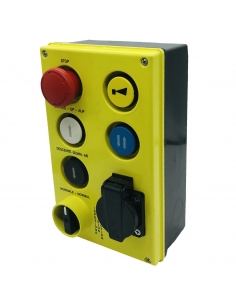

Box command maintenance elevator GM412 - Giovenzana Box command maintenance elevator GM412 - Giovenzana 2
Button boxes with controls already installed

Box command maintenance elevator GM412 - Giovenzana

Giovenzana Internacional B.V.
GI-GM412ES
€120.47 (€99.56 tax excl.)
Button box mounted for maintenance and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 2 NC 1NA alarm switch pushbutton. Pushbutton stopped in motion 2NA+1NC. Selector normal or in maintenance 3NA+3NC....
TLP3 type button. D - Giovenzana adajusa
Lifting elements - crane bridges - hostas

Keypad TLP3 type D - Giovenzana

Giovenzana Internacional B.V.
GI-TLP3.D
€32.65 (€26.98 tax excl.)
Push button box mounted for elevator pit and inspection, escalators and general use. Wall or bracket mounting. Complies with the specific regulations for elevators and machines, allows to satisfy all safety requirements. The supply includes: Box for 3 elements Up push button 1NA Down push button 1NO. Drive selector 1 NO. Cable gland M20 Part...

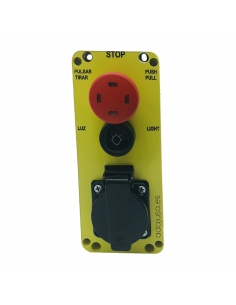

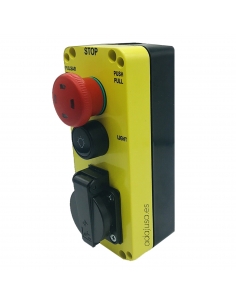

Emergency box light and plug GM series - Giovenzana Emergency box light and plug GM series - Giovenzana 2
Button boxes with controls already installed

Light emergency box and GM402 series plug - Giovenzana

Giovenzana Internacional B.V.
GI-GM402ES
€44.24 (€36.56 tax excl.)
Button box mounted for moat and inspection of elevators. It complies with the specific regulations for elevators and machines, it allows to satisfy all safety requirements. The supply includes: box Emergency pushbutton 1 NC 1NA light  pushbutton Schuko European 16a outlet Reference: GM402/EN Representative image for illustrative...
Button box with blue push button with rubber cover NYGBP61KT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with blue metal push button with full rubber cover - NYG Series

TRACON
PK-NYGBP61KT
€9.63 (€7.96 tax excl.)
Blue push button Box with full rubber cover. Blue metal pushbutton with an open contact (1NO) and rubber protection, box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBP61KT Representative image for illustrative purposes, the item supplied will correspond to the indicated specifications.
Button box with Ø40 mushroom stop button with interlocking and key unlocking NYGBS142PT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with metal mushroom pushbutton stop with full key - NYG Series

TRACON
PK-NYGBS142PT
€12.50 (€10.33 tax excl.)
Box with mushroom-type stop button with interlocking , diameter 40mm. Red metal push button with key unlocking and a closed contact (1NC), box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYGBS142PT Representative image for illustrative purposes, the item supplied will correspond to the indicated...
Button box with 2-stage selector with return NYK3-S24BK| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 2-position selector with full return - NYG Series

TRACON
PK-NYK3-S24BK
€10.25 (€8.47 tax excl.)
Box with 2-position selector with full return. Plastic selector with two positions with return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYK3-S24BK Representative image for illustrative purposes, the item supplied will correspond to the...
Button box with 3-position selector with return NYBD53KSTT| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position metal selector with full return - NYG Series

TRACON
PK-NYBD53KSTT
€11.24 (€9.29 tax excl.)
Box with complete 3-position selector. Short lever metal selector with 3 positions with return (1 fixed position and 2 others keeping it activated) and 2 open contacts (2NO). Box made of high-resistance gray plastic and dark gray front. IP44 protection grade.Reference: NYBD53KSTT Representative image for illustrative purposes, the item supplied will...
Button box with 3-position key selector switch with return NYK3-K41| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with 3-position key selector with full return - NYG Series

TRACON
PK-NYK3-K34
€12.14 (€10.03 tax excl.)
Box with 3-position key-operated selector switch with full return. Three-position plastic selector with key-operated return with one contact open and one contact closed (NO + NC), case made of high resistance plastic in grey color and front in dark grey color. Part number: PK-NYK3-K34 Representative image for illustrative purposes, the item supplied...
Button box with I-O start-stop pushbuttons and red Tracon| ADAJUSA | price
  • Pack
Button boxes with controls already installed

Box with pilot light and full on-off (I-O) pushbuttons - NYG Series

TRACON
PK-NYG3-P1-P2-AD22/R/230
€19.06 (€15.75 tax excl.)
Box with start-stop pushbuttons and complete red pilot light. Green push button with "I" inscription with an open contact (1NO) and red push button with "O" inscription with a closed contact (1NC), luminous red pilot light 230Vac. Box made of high resistance grey plastic and dark grey front. Referencia: PK-NYG3-P1-P2-AD22/R/230 Representative image...

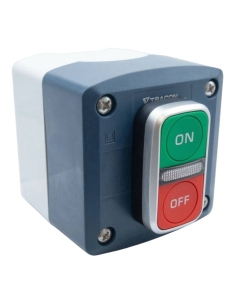

Button box with start-stop push button NYG3-D2| ADAJUSA | price
