Filter 3/4 metal 4 microns automatic drain New Deal - Metal Work

€176.82 Tax included

€146.13 tax excl.

1521009

Filter 3/4 metallic , with a filtering degree of 4μm and automatic discharge, for retention of solid or liquid impurities from the air compressor. These filter cups are made of metal with excellent resistance to corrosion. European manufacturing.

Series: New Deal
Reference: 1521009
metal work logo

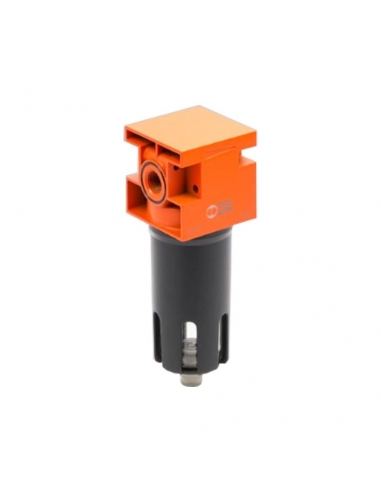

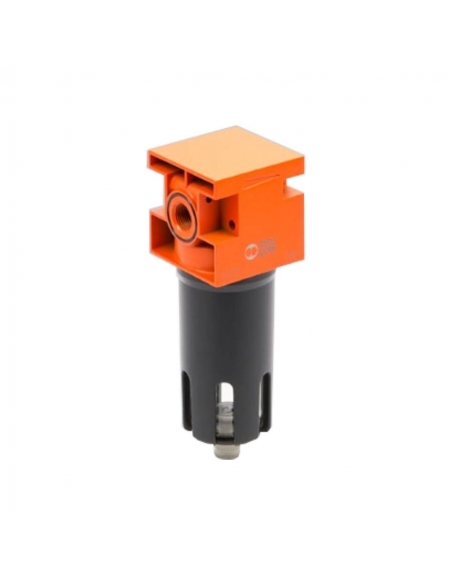

Representative image for illustrative purposes, the supplied article will correspond to the indicated specifications.

No queries yet, leave the first!
Privacy
Shipments
Returns


Filter 3/4 metal  cup, with a filtration degree of 4μm to retain solid or liquid impurities from the air compressor. The type of purge is automatic, it discharges when the pressure in the filter approaches zero.

Characteristic:

  • Manufacturer: Metal Work
  • Manufacturer reference: 1521009
  • Size: 3/4"
  • Regulation range: RA
  • Maximum inlet pressure: 18 bar .
  • Flow: 11000 Nl/min.
  • Filtration degree: 4µ.
  • Metal glass with external viewer.
  • max temperature at 1 MPa; bar ; 145psi: 50ºC
  • Bowl capacity: 170 cm3



For other sizes and models consult.





Material for professional use, install in compliance with the regulations in force at the place of installation.

For more information, you can download the technical sheet by clicking on the "Annexes" tab.
