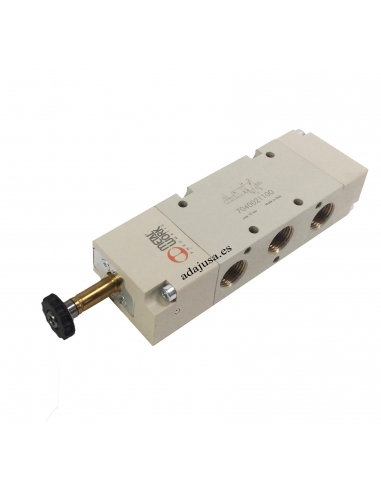

Solenoid valve 3/8 5 monostable roads without coil - Metal Work - adajusa.es
Coil solenoid valve 24Vcc 2.5 W T22 '8 - Metal Work - adajusa.es
Solenoid valve connector size 22
electrovalve 3/8 5-way monostable 24Vac 3,5W Metal Work - ADAJUSA
Solenoid valve 3/8 5 monostable roads without coil - Metal Work - adajusa.es
Coil solenoid valve 24Vcc 2.5 W T22 '8 - Metal Work - adajusa.es
Solenoid valve connector size 22
electrovalve 3/8 5-way monostable 24Vac 3,5W Metal Work - ADAJUSA

Solenoid valve 3/8 5-way monostable 24Vac 3.5W Metal Work

€111.55 Tax included

€92.19 tax excl.

PK-385M24A

3/8" 5-way pneumatic electrovalve, closed (NC), for industrial and general use applications.
Coil for electrovalve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of Ø8mm. 22mm connector




Logo-Metal-Work

Representative image for illustrative purposes, the article supplied will correspond to the specifications indicated.

This pack contains

No queries yet, leave the first!
Privacy
Shipments
Returns


3/8 5-way pneumatic valve 2 monostable positions. For general and industrial applications. The electrovalve is normally closed (NC), that is, without tension in the coil, the inlet is not connected to the outlet, that is, there is no air pressure at the outlet, the outlet is connected to the valve exhaust. When the coil is tensioned, the electrovalve is activated, air circulation occurs between the inlet and outlet of the electrovalve.

Manufacturer: Metal Work.

Coil for electrovalve size 22mm, voltage 24Vac., with a consumption of 3.5VA, for cores of Ø8mm.

22 mm plastic connector

The supply includes:

  • Electrovalve 3/8 5/2 monostable
  • Coil 24Vac 3,5VA
  • 22 mm connector


characteristics:

  • Operating pressure: 2.5 ÷10 bar
  • Minimum assist pressure: 2.5 bar
  • Voltage 24Vac
  • Consumption: 3.5VA
  • Operating temperature: -10 ÷ +60
  • Nominal diameter: 13.3 mm
  • Conductance C Nl/min · bar: 505.52
  • Critical ratio b bar/bar: 0.32
  • Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
  • Flow rate at 6 bar ΔP 1 bar Nl/min:2150
  • SINGLE-SEAT TRA/TRR at 6 bar ms: 21/72
  • TRA/TRR bistable at 6 bar ms: 18/18
  • Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
  • Voltage tolerances %: -10 ÷ +15


Material for professional use, install respecting the regulations in force at the place of installation.

For more information you can download the technical data sheet by clicking on the "Attachments" tab
