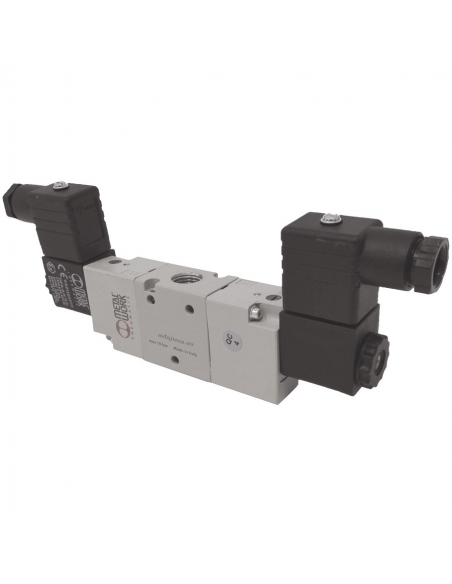

Solenoid valve 3/8 3-way bistable assisted 24 Vdc- Metal Work

€119.60 Tax included

€98.84 tax excl.

PK-383AB24C

Pneumatic solenoid valve of 3/8" 3 bistable assisted tracks, for industrial applications and general use. With 24Vdc connectors and coils

Representative image for illustrative purposes, the item supplied will correspond to the specifications indicated.

This pack contains

2x

Solenoid valve connector size 22

Solenoid valve connector size 22 - Metal Work

€1.44

2x

Coil for solenoid valve 24Vcc Metal Work W0215000101 Price adajusa

Solenoid valve coil 24Vdc 2 W T22 diameter 8 - Metal Work

€8.86

1x

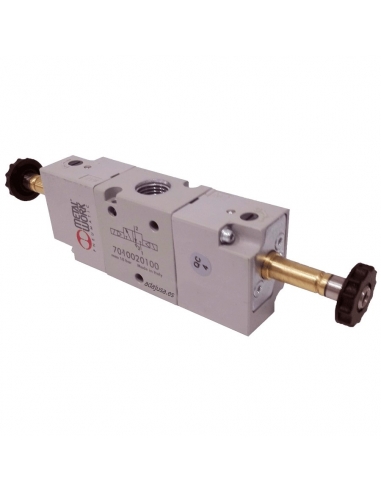

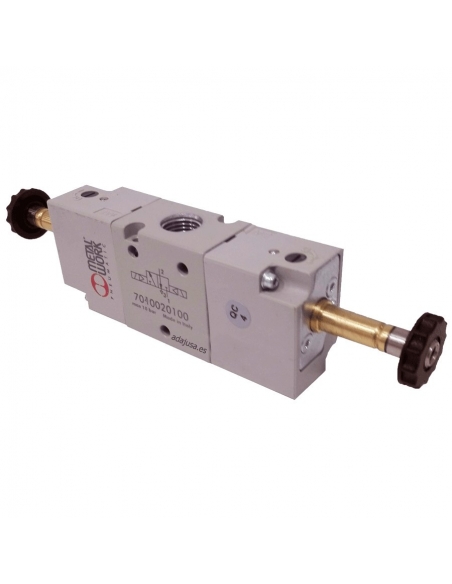

Solenoid valve 3/8 3 ways bistable - Metal Work - ADAJUSA

Solenoid valve 3/8 3-way bistable assisted - Metal Work

€99.00

No queries yet, leave the first!

Description
Frequently questions

Pneumatic solenoid valve of 3/8 3 ways 2 positions assisted bistable. For general and industrial applications.

The supply includes:

Solenoid valve 3/8 3/2 bistable assisted
2 Coils 24Vdc 2 W
2 T22 connectors

Characteristics:

Provider: Metal Work
Solenoid valve reference: 7040020100- SOV C3 SEB OO
Operating pressure: 2.5 ÷10 bar
Minimum assist pressure: 2.5 bar
Operating temperature: -10 ÷ +60
Nominal diameter: 13.3 mm
Conductance C Nl/min · bar: 505.52
B bar/bar critical ratio: 0.32
Flow rate at 6 bar ΔP 0.5 bar Nl/min: 1560
Flow rate at 6 bar ΔP 1 bar Nl/min:2150
Monostable TRA/TRR at 6 bar ms: 21/72
Bistable TRA/TRR at 6 bar ms: 18/18
Voltage according to coils: 12; 24 VDC - 24; 110; 220V AC 50/60Hz
Voltage tolerances %: -10 ÷ +15
Voltage: 24Vdc
Power: 2 W

Material for professional use, install in compliance with the regulations in force at the place of installation.
